COOL-FIT 4.0 Elbow 45° PE100 SDR11

  Datasheet (PDF)

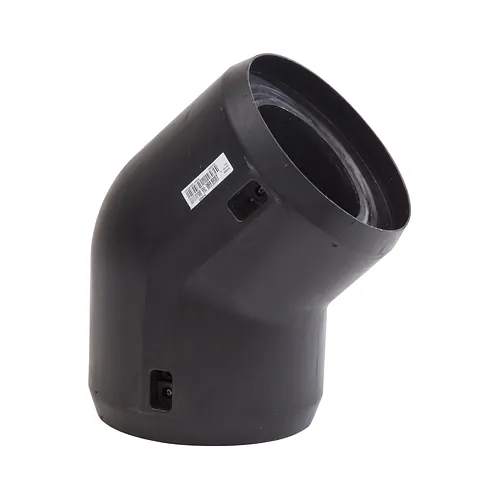

The Georg Fischer COOL-FIT 4.0 45-degree elbow is an engineered, factory pre-insulated electrofusion fitting designed for directional changes in high-efficiency secondary refrigeration, HVAC, and industrial process cooling distribution systems. Manufactured as a fully integrated 3-in-1 component, the fitting combines an inner SDR11 PE100 carrier pipe, high-performance closed-cell halogen-free GF HE insulation foam, and a robust, impact-resistant black outer protective jacket. Designed for operating medium temperatures spanning from -50 degrees Celsius to +60 degrees Celsius at an operating pressure rating of up to 16 bar, this component ensures complete vapor sealing and zero condensation across chilled liquid lines. As a Type A fitting, it incorporates embedded electrofusion heating wires along with an integrated elastomeric sealing lip that compresses securely onto the pre-insulated pipe casing during assembly. This mechanical lip construction establishes a completely moisture-proof and vapor-tight seal without the need for manual post-insulation, adhesive glues, silicone mastic, or secondary heat-shrink sleeves. By delivering outstanding thermal performance with low thermal conductivity, the elbow dramatically minimizes thermal losses compared to field-insulated metallic lines while permanently preventing condensation-induced corrosion and surface icing. Its lightweight plastic construction reduces structural loads on building envelopes and pipeline supports, streamlining rooftop and indoor overhead installations in food and beverage production, cold storage warehouses, and data center cooling loops. Automated electrofusion parameters simplify jointing to guarantee repeatable connection integrity and maintenance-free operation throughout a demanding design lifespan.
