Electric ball valve Type 127 PP-H 100-230V PN10

Electric ball valve Type 127 PP-H 100-230V PN10

Material: PP-H PN: 10 Bar

  Datasheet (PDF)

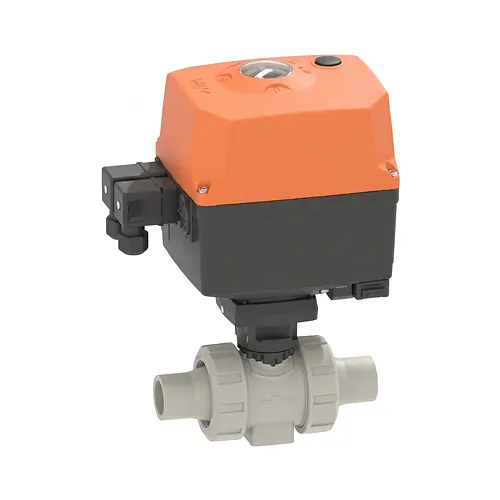

The Georg Fischer PROGEF Standard Type 127 is an electrically actuated two-way ball valve for automated isolation and on-off flow control in industrial piping carrying water, effluent and aggressive chemicals. Supplied in metric sizes d16 to d63 mm with socket fusion spigots, it pairs an isotactic beta-PP-H body with the EA15 actuator for 100 to 230 V AC supplies at 50/60 Hz, at a PN10 rating.

Technical specifications

The EA15 actuator drives the ball through a precise 90-degree quarter turn and reports valve status continuously, which suits automated chemical dosing, distribution and process water circuits. An integrated heating element keeps the electronics dry in humid installations.

  • Nominal pressure: PN10 (10 bar) at 20 degrees Celsius
  • Actuator supply: 100 to 230 V AC, 50/60 Hz, with integrated heating element
  • Actuator enclosure: IP68, glass-fibre-reinforced flame-retardant polypropylene
  • Shut-off performance: leak rate A, bidirectional, per ISO 9393-2 and EN 12266
  • Auxiliary equipment: optical position indicator, manual emergency override, limit switches
  • Base interface: integrated stainless steel threaded inserts for stress-free anchoring

Internal sealing relies on low-friction PTFE seats backed by EPDM or FKM backing rings, which hold sealing tension as line pressure fluctuates. The safety stem carries a predefined shear point above the double stem seals, so severe mechanical over-torque cannot release fluid into the actuator compartment or the surrounding plant environment.

Materials and standards

Valve body, ball and metric socket fusion spigots are moulded in isotactic polypropylene homopolymer (beta-PP-H), the PROGEF Standard material that resists inorganic salts, alkalis and acids. The actuator housing is flame-retardant glass-fibre-reinforced polypropylene.

Seat and seal selection governs media compatibility: PTFE seats are combined with elastomeric backing rings in EPDM or FKM, chosen to match the fluid conveyed. Tightness follows leak rate A to ISO 9393-2 and EN 12266, and the PROGEF Standard system is designed for 25 years of operational life with water at 20 degrees Celsius.

Installation and jointing

The valve is jointed by socket fusion to metric PROGEF Standard PP-H pipe and fittings in SDR 11, using a socket fusion machine from the same range so that spigot and socket geometry match.

The stainless steel threaded inserts moulded into the base allow the valve to be anchored to a bracket or frame, so pipe loads and actuator torque are not carried by the fusion joints. The manual emergency override permits operation during commissioning or loss of supply voltage, while the limit switches and optical indicator confirm the open or closed position locally and at the control panel.

  Datasheet (PDF)

The Georg Fischer PROGEF Standard Type 127 is an electrically actuated two-way ball valve for automated isolation and on-off flow control in industrial piping carrying water, effluent and aggressive chemicals. Supplied in metric sizes d16 to d63 mm with socket fusion spigots, it pairs an isotactic beta-PP-H body with the EA15 actuator for 100 to 230 V AC supplies at 50/60 Hz, at a PN10 rating.

Technical specifications

The EA15 actuator drives the ball through a precise 90-degree quarter turn and reports valve status continuously, which suits automated chemical dosing, distribution and process water circuits. An integrated heating element keeps the electronics dry in humid installations.

  • Nominal pressure: PN10 (10 bar) at 20 degrees Celsius
  • Actuator supply: 100 to 230 V AC, 50/60 Hz, with integrated heating element
  • Actuator enclosure: IP68, glass-fibre-reinforced flame-retardant polypropylene
  • Shut-off performance: leak rate A, bidirectional, per ISO 9393-2 and EN 12266
  • Auxiliary equipment: optical position indicator, manual emergency override, limit switches
  • Base interface: integrated stainless steel threaded inserts for stress-free anchoring

Internal sealing relies on low-friction PTFE seats backed by EPDM or FKM backing rings, which hold sealing tension as line pressure fluctuates. The safety stem carries a predefined shear point above the double stem seals, so severe mechanical over-torque cannot release fluid into the actuator compartment or the surrounding plant environment.

Materials and standards

Valve body, ball and metric socket fusion spigots are moulded in isotactic polypropylene homopolymer (beta-PP-H), the PROGEF Standard material that resists inorganic salts, alkalis and acids. The actuator housing is flame-retardant glass-fibre-reinforced polypropylene.

Seat and seal selection governs media compatibility: PTFE seats are combined with elastomeric backing rings in EPDM or FKM, chosen to match the fluid conveyed. Tightness follows leak rate A to ISO 9393-2 and EN 12266, and the PROGEF Standard system is designed for 25 years of operational life with water at 20 degrees Celsius.

Installation and jointing

The valve is jointed by socket fusion to metric PROGEF Standard PP-H pipe and fittings in SDR 11, using a socket fusion machine from the same range so that spigot and socket geometry match.

The stainless steel threaded inserts moulded into the base allow the valve to be anchored to a bracket or frame, so pipe loads and actuator torque are not carried by the fusion joints. The manual emergency override permits operation during commissioning or loss of supply voltage, while the limit switches and optical indicator confirm the open or closed position locally and at the control panel.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 16 mm
Gasket EPDM
199127522
Material: PP-H
PN: 10 Bar
pcs €723.54
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 16 mm
Gasket FKM
199127532
Material: PP-H
PN: 10 Bar
pcs €739.39
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 20 mm
Gasket EPDM
199127523
Material: PP-H
PN: 10 Bar
pcs €720.39
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 20 mm
Gasket FKM
199127533
Material: PP-H
PN: 10 Bar
pcs €737.06
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
Gasket EPDM
199127524
Material: PP-H
PN: 10 Bar
pcs €735.76
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
Gasket FKM
199127534
Material: PP-H
PN: 10 Bar
pcs €752.93
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
Gasket EPDM
199127525
Material: PP-H
PN: 10 Bar
pcs €758.11
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
Gasket FKM
199127535
Material: PP-H
PN: 10 Bar
pcs €782.56
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
Gasket EPDM
199127526
Material: PP-H
PN: 10 Bar
pcs €792.43
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
Gasket FKM
199127536
Material: PP-H
PN: 10 Bar
pcs €821.07
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
Gasket EPDM
199127527
Material: PP-H
PN: 10 Bar
pcs €835.64
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
Gasket FKM
199127537
Material: PP-H
PN: 10 Bar
pcs €877.79
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
Gasket EPDM
199127528
Material: PP-H
PN: 10 Bar
pcs €878.36
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
Gasket FKM
199127538
Material: PP-H
PN: 10 Bar
pcs €938.22
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 199127522
D: 16 mm
Gasket: EPDM
Ships in 24 hours
€723.54 / pcs
SKU: 199127532
D: 16 mm
Gasket: FKM
Ships in 24 hours
€739.39 / pcs
SKU: 199127523
D: 20 mm
Gasket: EPDM
Ships in 24 hours
€720.39 / pcs
SKU: 199127533
D: 20 mm
Gasket: FKM
Ships in 24 hours
€737.06 / pcs
SKU: 199127524
D: 25 mm
Gasket: EPDM
Ships in 24 hours
€735.76 / pcs
SKU: 199127534
D: 25 mm
Gasket: FKM
Ships in 24 hours
€752.93 / pcs
SKU: 199127525
D: 32 mm
Gasket: EPDM
Ships in 24 hours
€758.11 / pcs
SKU: 199127535
D: 32 mm
Gasket: FKM
Ships in 24 hours
€782.56 / pcs
SKU: 199127526
D: 40 mm
Gasket: EPDM
Ships in 24 hours
€792.43 / pcs
SKU: 199127536
D: 40 mm
Gasket: FKM
Ships in 24 hours
€821.07 / pcs
SKU: 199127527
D: 50 mm
Gasket: EPDM
Ships in 24 hours
€835.64 / pcs
SKU: 199127537
D: 50 mm
Gasket: FKM
Ships in 24 hours
€877.79 / pcs
SKU: 199127528
D: 63 mm
Gasket: EPDM
Ships in 24 hours
€878.36 / pcs
SKU: 199127538
D: 63 mm
Gasket: FKM
Ships in 24 hours
€938.22 / pcs
