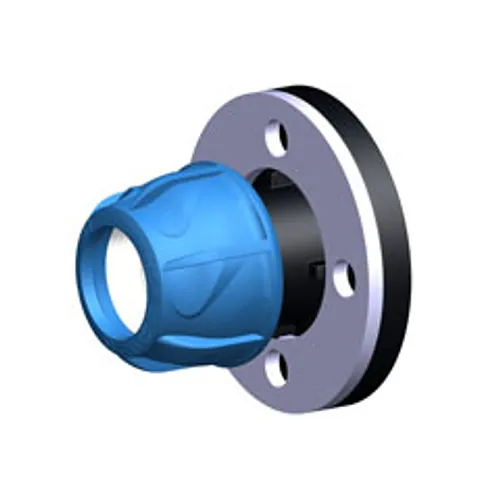

iJoint PP flanged joint with metal flange PN16 featuring a blue compression nut and steel backing ring

iJoint PP Flanged Joint with Metal Flange PN16

Material: Polipropilena PN: 16 Bar

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer iJoint flanged joint with metal flange is an engineered mechanical compression fitting designed for transition between polyethylene (PE 80, PE 100) or PEX piping and flanged equipment such as valves, pumps, and metallic manifolds. Suitable for potable water distribution, industrial process lines, and pressurized irrigation networks, this fitting provides an end-load-resistant connection rated for an operating pressure of 16 bar across an operating temperature range of -10 degrees C to +45 degrees C.

Technical specifications

This compression fitting provides a direct mechanical transition to flanged infrastructure while maintaining full hydraulic sealing and axial restraint under operational pressure. The steel backing ring conforms to standard international flange drillings to integrate seamlessly with metallic and plastic valves.

  • Nominal pressure rating: PN16 (16 bar maximum operating pressure).
  • Operating temperature range: -10 degrees C to +45 degrees C.
  • Flange drilling pattern: Compatible with DIN EN 1092-1 and DIN 2501-1 standards.
  • Compatible pipe materials: Polyethylene (PE 80, PE 100), PEX, and PEX-a per EN 12201 and ISO 4427.
  • End-load resistance: Axial restraint prevents pipe pull-out under pressure surges and tensile loads.
  • Fluid suitability: Certified for potable drinking water, industrial fluids, and pressurized irrigation.

Materials and standards

Every component is manufactured from durable, corrosion-proof materials engineered for long operational lifespans in buried or above-ground utility systems. The materials comply with stringent international hygiene and performance standards for drinking water distribution.

The fitting body and thrust ring are molded from UV-stabilized polypropylene impact copolymer (PP-B), formulated in compliance with ISO 9080 for long-term aging resistance. Internal mechanical grip is provided by a polyacetal (POM) split ring that bites into the pipe wall without scoring the core. Hydraulic sealing relies on a factory-lubricated food-safe EPDM lip gasket certified under DVGW GW 335-B3, W270, KTW, and ACS regulations. The loose steel backing ring delivers rigid mechanical bolting resistance without exposing the thermoplastic core to bending stress.

Installation and jointing

The iJoint system features a push-fit jointing method that permits straightforward insertion without disassembling the compression nut or chamfering the pipe end. The specialized EPDM lip gasket ensures immediate leak-tight sealing even on ovalized, undersized, or scratched pipe surfaces.

To complete installation, cut the pipe square, mark the insertion depth, push the pipe firmly past the lip gasket into the fitting, and tighten the nut. When bolting the steel backing ring to the counter-flange, use standard crosswise torque sequences to achieve uniform gasket compression. BigWeld is an authorised Georg Fischer distributor supplying certified thermoplastic and compression piping systems across Europe.
