Ductile Iron All Flanged Reduced Cross PN16

  Data Sheet |   Product Range

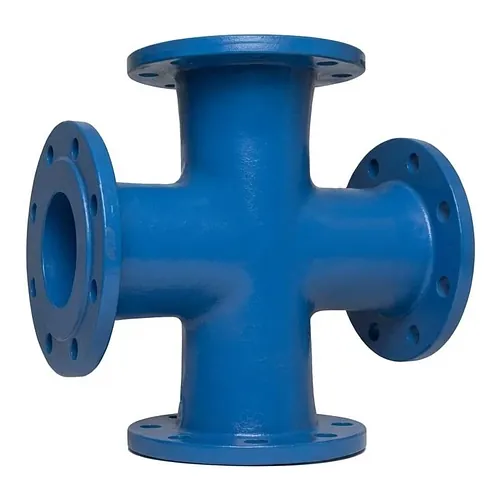

The Blucast series TT all-flanged reduced cross is an engineered ductile iron fitting designed for high-integrity branch distribution and flow division in municipal water transmission, drinking water networks, and industrial utility piping systems. Manufactured in accordance with the EN 545 European standard, this four-way fitting features integrated EN 1092-2 flanged connections with a PN16 nominal pressure rating, enabling secure, rigid integration with standard flanged isolation valves, pumps, flow meters, and main pipelines.

Engineered from premium EN-GJS-500-7 grade ductile iron, the series TT reduced cross provides superior tensile strength, exceptional structural resilience against hydraulic surges, and reliable resistance to mechanical ground movement. To guarantee long-term corrosion protection and ensure complete chemical safety for potable water distribution, all internal and external surfaces are coated with a WRAS-approved electrostatically applied powder epoxy layer with a minimum thickness of 250 µm in sky blue (RAL 5015). This smooth, non-porous protective barrier prevents incrustation, preserves hydraulic flow efficiency, and prevents bacteriological colonization across the entire operational lifecycle.

BigWeld, an authorised Blucast dealer, supplies these flanged crosses for demanding utility and industrial piping installations across Europe. The reduced branch configuration permits direct hydraulic transitions without requiring multiple separate concentric reducers or stepped tees, significantly reducing installation footprint, assembly time, and potential leak paths in valve chambers and pump stations.

Key Technical Characteristics:

• Standard compliance: EN 545 for ductile iron piping and fittings
• Flange drilling: EN 1092-2 PN16 (compatible with universal flanged connections)
• Structural material: High-grade EN-GJS-500-7 ductile cast iron
• Anti-corrosion protection: WRAS-approved powder epoxy coating, minimum 250 µm (RAL 5015)
• Nominal operating pressure: PN16 (16 bar maximum working pressure)
• Fluid compatibility: Potable water, raw water, and neutral industrial liquids up to 80 degrees Celsius
