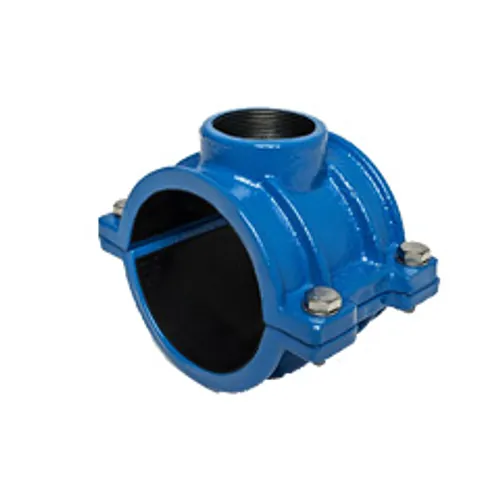

Blue ductile iron tapping saddle for PE and PVC pipes with threaded branch outlet

Ductile Iron Tapping Saddle for PE and PVC Pipes PN16 DE 50-315

  Datasheet (PDF) |   Product Range

The Blucast ductile iron tapping saddle creates threaded branch connections on polyethylene (PE-HD) and PVC-U pressure pipes with outer diameters from DE 50 mm to DE 315 mm. Supplied by BigWeld, an authorised Blucast dealer, it combines an EN-GJS-500-7 cast body, a profiled EPDM sealing gasket, AISI 304 stainless steel hardware and a PN16 rating for drinking water, agricultural irrigation and utility networks.

Technical specifications

The saddle is rated PN16, works between 0 degrees and 80 degrees Celsius and provides a female parallel BSP branch outlet from 1 inch to 2 inches. The clamping geometry maintains full sealing integrity on rigid and semi-flexible thermoplastic pipes without inducing localised collapse of the pipe wall.

  • Nominal pressure: PN16, 16 bar working pressure
  • Pipe compatibility: PE-HD and PVC-U pressure pipes, DE 50 mm to DE 315 mm
  • Branch outlet: female parallel BSP thread, 1 inch to 2 inches
  • Working temperature: 0 degrees to 80 degrees Celsius
  • Coating: electrostatic powder epoxy, minimum 250 µm, RAL 5015
  • Hardware: AISI 304 stainless steel bolts and washers

The branch thread size paired with each pipe diameter is shown in the size table on this page.

Materials and standards

The body is cast from ductile iron grade EN-GJS-500-7, which delivers high tensile strength, impact resistance and elongation under the fluctuating ground loads typical of buried networks. The product carries CE marking and the Blucast 7-year quality warranty.

Corrosion protection is applied on an automatic epoxy dip coating line, depositing a continuous powder epoxy barrier of at least 250 µm in RAL 5015 blue. This non-porous layer isolates the casting from chemically aggressive soils and groundwater. The powder epoxy coating used across the Blucast range is WRAS approved, and tapping saddles are covered by the Blucast PZH hygienic certificate for drinking water distribution. The sealing element is a drinking-water approved EPDM elastomer that retains its elastic memory throughout the stated temperature range.

Installation and jointing

The saddle is a purely mechanical fitting: it is clamped around the pipe and bolted, so no fusion or welding equipment is required on site. Tightening the AISI 304 bolts evenly compresses the profiled EPDM gasket against the pipe surface before the branch is connected through the female BSP thread.

The wide body footprint spreads the clamping load over the pipe, which is essential on thermoplastic mains where point loading would deform the wall. With epoxy-coated castings and stainless steel hardware, the assembly is intended for direct burial in water distribution, irrigation and civil infrastructure networks.

  Datasheet (PDF) |   Product Range

The Blucast ductile iron tapping saddle creates threaded branch connections on polyethylene (PE-HD) and PVC-U pressure pipes with outer diameters from DE 50 mm to DE 315 mm. Supplied by BigWeld, an authorised Blucast dealer, it combines an EN-GJS-500-7 cast body, a profiled EPDM sealing gasket, AISI 304 stainless steel hardware and a PN16 rating for drinking water, agricultural irrigation and utility networks.

Technical specifications

The saddle is rated PN16, works between 0 degrees and 80 degrees Celsius and provides a female parallel BSP branch outlet from 1 inch to 2 inches. The clamping geometry maintains full sealing integrity on rigid and semi-flexible thermoplastic pipes without inducing localised collapse of the pipe wall.

  • Nominal pressure: PN16, 16 bar working pressure
  • Pipe compatibility: PE-HD and PVC-U pressure pipes, DE 50 mm to DE 315 mm
  • Branch outlet: female parallel BSP thread, 1 inch to 2 inches
  • Working temperature: 0 degrees to 80 degrees Celsius
  • Coating: electrostatic powder epoxy, minimum 250 µm, RAL 5015
  • Hardware: AISI 304 stainless steel bolts and washers

The branch thread size paired with each pipe diameter is shown in the size table on this page.

Materials and standards

The body is cast from ductile iron grade EN-GJS-500-7, which delivers high tensile strength, impact resistance and elongation under the fluctuating ground loads typical of buried networks. The product carries CE marking and the Blucast 7-year quality warranty.

Corrosion protection is applied on an automatic epoxy dip coating line, depositing a continuous powder epoxy barrier of at least 250 µm in RAL 5015 blue. This non-porous layer isolates the casting from chemically aggressive soils and groundwater. The powder epoxy coating used across the Blucast range is WRAS approved, and tapping saddles are covered by the Blucast PZH hygienic certificate for drinking water distribution. The sealing element is a drinking-water approved EPDM elastomer that retains its elastic memory throughout the stated temperature range.

Installation and jointing

The saddle is a purely mechanical fitting: it is clamped around the pipe and bolted, so no fusion or welding equipment is required on site. Tightening the AISI 304 bolts evenly compresses the profiled EPDM gasket against the pipe surface before the branch is connected through the female BSP thread.

The wide body footprint spreads the clamping load over the pipe, which is essential on thermoplastic mains where point loading would deform the wall. With epoxy-coated castings and stainless steel hardware, the assembly is intended for direct burial in water distribution, irrigation and civil infrastructure networks.

Variants, prices and availability
Size SKU U.M.
Price
incl. 21% VAT
Availability Add To Cart
DE 50-1"
BPE0501 pcs €23.62
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 50-1 1/4"
BPE050114 pcs €23.16
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 63-1"
BPE0631 pcs €25.97
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 63-1 1/4"
BPE063114 pcs €25.43
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 63-1 1/2"
BPE063112 pcs €21.26
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 63-2"
BPE0632 pcs €27.06
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 75-1"
BPE0751 pcs €25.98
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 75-1 1/4"
BPE075114 pcs €27.64
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 75-2"
BPE0752 pcs €26.54
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 90-1"
BPE0901 pcs €26.08
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 90-1 1/4"
BPE090114 pcs €26.62
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 90-2"
BPE0902 pcs €27.23
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 110-1"
BPE1101 pcs €33.98
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 110-1 1/4"
BPE110114 pcs €30.66
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 110-1 1/2"
BPE110112 pcs €32.62
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 110-2"
BPE1102 pcs €30.66
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 160-1"
BPE1601 pcs €50.86
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 160-1 1/4"
BPE160114 pcs €51.95
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 160-2"
BPE1602 pcs €49.78
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 200-1"
BPE2001 pcs €74.29
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 200-1 1/4"
BPE200114 pcs €92.15
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 200-2"
BPE2002 pcs €71.33
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 250-2"
BPE2502 pcs €110.94
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DE 315-2"
BPE3152 pcs €158.18
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
