Galvanised malleable iron regulation socket 599a

Galvanised malleable iron regulation socket 599a

Material: Malleable Iron

  Datasheet (PDF)

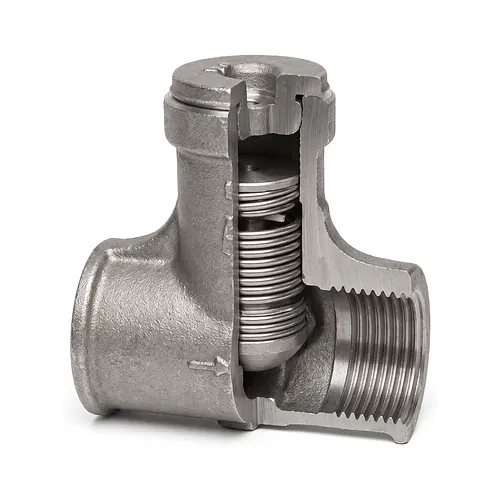

The Georg Fischer galvanised malleable iron regulation socket 599a is an engineered throttling and balancing fitting designed for precise flow calibration in commercial and industrial piping circuits. Built for heating networks, cooling installations, and utility water distribution, this PN25 rated fitting combines a decarburised whiteheart malleable cast iron body with an internal brass regulating mechanism to ensure accurate hydronic balancing and dependable shut-off protection across fluid temperatures from -20 degrees Celsius to 120 degrees Celsius.

Technical specifications

This regulation socket delivers precise hydronic balancing and flow restriction across threaded pipe networks operating at pressures up to 25 bar. The integrated brass mechanism enables fine throttling adjustments while preserving steady line performance under dynamic operating conditions.

  • Nominal pressure rating: PN25 (admissible working pressure up to 25 bar).
  • Operating temperature range: -20 degrees Celsius to 120 degrees Celsius.
  • Jointing thread standard: Rp parallel internal threads compliant with EN 10226-1 and ISO 7-1.
  • Bonnet chamber thread: G parallel fastening threads according to EN ISO 228-1.
  • Adjustment control: Top-mounted drive spindle operated via standard spanners or square service keys.
  • Secondary retention: Integrated brass anti-twist backnut prevents drift from flow vibrations.

Materials and standards

Manufactured in conformity with EN 10242 and ISO 49 Design Symbol A, the socket body is cast from premium whiteheart malleable iron grade EN-GJMW-400-5. The decarburised annealing process produces high tensile strength and ductile resistance, finished with high-purity hot-dip galvanising to eliminate scaling and external oxidation.

The internal regulation assembly is precision-machined from corrosion-resistant sanitary brass, comprising a tapered throttling insert, a threaded regulating spindle, a locking backnut, and a protective sealing screw cap. A factory-fitted flat sealing gasket between the cast housing neck and the brass bonnet ensures reliable external sealing, protecting distribution lines from joint weeping and pressure degradation over extended service lives.

Installation and jointing

The fitting connects directly into rigid distribution runs using standard taper pipe threads paired with its cylindrical Rp internal threads. Flow calibration is performed on-site by turning the upper square head and securing the locknut once the target flow rate is established.

Installers must apply an approved thread sealant to the mating external R taper threads to achieve pressure-tight sealing according to standard jointing procedures. After setting the calibrated throttling position using the regulating spindle, the brass backnut must be firmly tightened against the body face to lock the setting against pipeline pulsation, followed by fastening the threaded brass cover cap over the flat gasket.

  Datasheet (PDF)

The Georg Fischer galvanised malleable iron regulation socket 599a is an engineered throttling and balancing fitting designed for precise flow calibration in commercial and industrial piping circuits. Built for heating networks, cooling installations, and utility water distribution, this PN25 rated fitting combines a decarburised whiteheart malleable cast iron body with an internal brass regulating mechanism to ensure accurate hydronic balancing and dependable shut-off protection across fluid temperatures from -20 degrees Celsius to 120 degrees Celsius.

Technical specifications

This regulation socket delivers precise hydronic balancing and flow restriction across threaded pipe networks operating at pressures up to 25 bar. The integrated brass mechanism enables fine throttling adjustments while preserving steady line performance under dynamic operating conditions.

  • Nominal pressure rating: PN25 (admissible working pressure up to 25 bar).
  • Operating temperature range: -20 degrees Celsius to 120 degrees Celsius.
  • Jointing thread standard: Rp parallel internal threads compliant with EN 10226-1 and ISO 7-1.
  • Bonnet chamber thread: G parallel fastening threads according to EN ISO 228-1.
  • Adjustment control: Top-mounted drive spindle operated via standard spanners or square service keys.
  • Secondary retention: Integrated brass anti-twist backnut prevents drift from flow vibrations.

Materials and standards

Manufactured in conformity with EN 10242 and ISO 49 Design Symbol A, the socket body is cast from premium whiteheart malleable iron grade EN-GJMW-400-5. The decarburised annealing process produces high tensile strength and ductile resistance, finished with high-purity hot-dip galvanising to eliminate scaling and external oxidation.

The internal regulation assembly is precision-machined from corrosion-resistant sanitary brass, comprising a tapered throttling insert, a threaded regulating spindle, a locking backnut, and a protective sealing screw cap. A factory-fitted flat sealing gasket between the cast housing neck and the brass bonnet ensures reliable external sealing, protecting distribution lines from joint weeping and pressure degradation over extended service lives.

Installation and jointing

The fitting connects directly into rigid distribution runs using standard taper pipe threads paired with its cylindrical Rp internal threads. Flow calibration is performed on-site by turning the upper square head and securing the locknut once the target flow rate is established.

Installers must apply an approved thread sealant to the mating external R taper threads to achieve pressure-tight sealing according to standard jointing procedures. After setting the calibrated throttling position using the regulating spindle, the brass backnut must be firmly tightened against the body face to lock the setting against pipeline pulsation, followed by fastening the threaded brass cover cap over the flat gasket.
