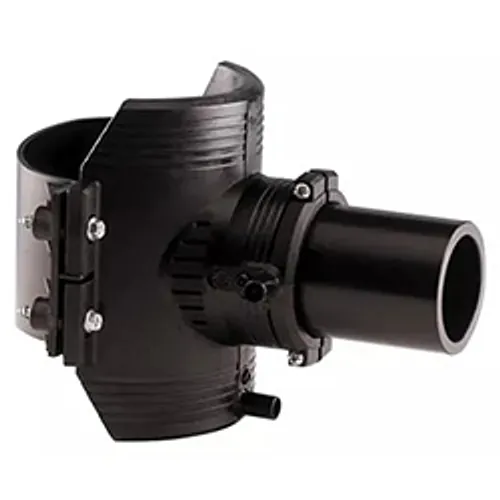

Black ELGEF Plus PE100 spigot saddle with integrated cutter SDR11 fitting

ELGEF Plus PE100 Spigot Saddle with Integrated Cutter SDR11

Material: Polyethylene PN: 16 Bar

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus PE100 spigot saddle with integrated cutter is an engineered electrofusion fitting designed for branching and under-pressure tapping on polyethylene utility pipelines. Built for demanding municipal distribution and industrial piping networks, this SDR11 tapping saddle provides a pressure rating of 16 bar for water and 10 bar for gas. Supplied with an integrated lower clamping half, it provides secure pipe alignment across main diameters from d63 mm to d400 mm with d32 mm or d63 mm branch spigots.

Technical specifications

This electrofusion tapping saddle incorporates an internal cutter for under-pressure pipe tapping and standard electrofusion terminals for rapid, secure jointing. It delivers verified pressure containment without requiring specialized external drilling machinery.

  • Pressure ratings: 16 bar for potable water systems and 10 bar for natural gas networks.
  • Main pipe sizing: Compatible with main pipe sizes from d63 mm up to d400 mm (sizes d355 mm and d400 mm suitable up to SDR17).
  • Outlet spigots: Branch outlets available in d32 mm and d63 mm for electrofusion coupler or butt fusion connections.
  • Fusion interfaces: Standard 4 mm connector pins with limited-path visual fusion indicators and Track and Trace barcodes.
  • Integrated tapping cutter: Internal rotation cutter enables clean pipe wall cutting and retains swarf inside the fitting mechanism.

Materials and standards

Manufactured from fully compounded virgin PE100 resin approved by the PE100+ Association, the fitting ensures exceptional resistance to slow crack growth and environmental stress cracking. The material delivers an operational design life exceeding 100 years in buried utility networks.

The saddle conforms strictly to European standards EN 12201-3 for potable water supply and EN 1555-3 for combustible gas infrastructure. It carries extensive quality accreditations, including DVGW, KIWA, French ACS certification for sanitary drinking water contact, and FM Approvals Class 1613 for underground fire protection networks.

Installation and jointing

Installation combines robust mechanical clamping with controlled electrofusion welding followed by manual under-pressure tapping. The integrated lower saddle half provides precise alignment and uniform clamping force during the fusion cycle.

Before fusion, the main pipe surface must be mechanically peeled and cleaned in accordance with electrofusion guidelines. Automated barcode scanning ensures accurate energy input via standard electrofusion control boxes. After completing the cooling cycle, the internal cutter is operated using a standard hex wrench to cut through the main pipe wall, retracting past the branch outlet to establish unobstructed flow with zero external fluid leakage.
