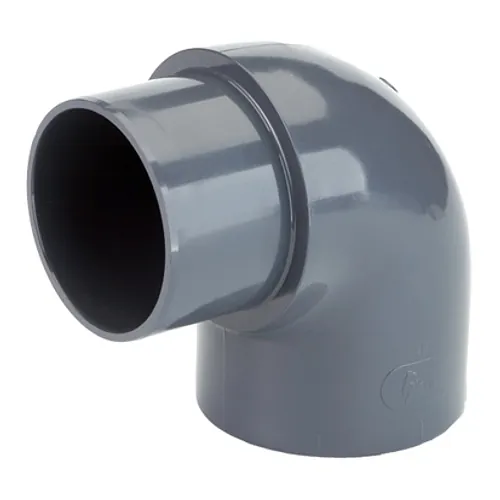

Elbow 90° M/F PVC-U PN16 d50-63 mm

Elbow 90° M/F PVC-U PN16 d50-63 mm

Material: PVC-U PN: 16 Bar

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer 90 degrees male/female (M/F) elbow in unplasticised polyvinyl chloride (PVC-U) delivers a compact directional change for industrial pressure piping. Engineered with a metric male spigot at one end and a female solvent cement socket at the other, this fitting connects directly into adjacent socketed components to eliminate intermediate pipe spools and minimise skid footprint. BigWeld supplies this PN16 fitting for chemical processing, water treatment, and industrial plant engineering.

Technical specifications

This metric PVC-U elbow provides dependable PN16 pressure containment across standard ambient and process temperatures. Its spigot-to-socket geometry significantly cuts axial assembly length in compact valve clusters and pump manifolds without compromising hydraulic flow characteristics.

The streamlined interior profile prevents turbulence and limits pressure loss across continuous fluid circuits:

  • Nominal pressure: PN16 (16 bar at 20 °C) with temperature de-rating up to +60 °C
  • Dimensional range: Metric outside diameters d50 mm and d63 mm
  • Connection type: Plain male spigot end to female solvent cement socket
  • Flow geometry: 90 degrees directional change with smooth internal bore
  • Operational temperature: Continuous service from 0 °C to +60 °C

Materials and standards

Manufactured from high-grade unplasticised polyvinyl chloride compound in dark grey RAL 7011, the elbow complies fully with EN ISO 1452-3 and DIN 8063. The non-corrosive thermoplastic construction guarantees complete inertness in contact with harsh chemical media and aggressive utility streams.

The formulation provides exceptional resistance against inorganic acids, alkalis, salt solutions, and treated water networks. Because PVC-U is non-toxic, tasteless, and physiologically neutral, the component maintains medium purity in process piping, cooling loops, aquaculture systems, and potable water distribution without risk of corrosion, scaling, or biological encrustation.

Installation and jointing

Jointing is performed via cold solvent cement socket fusion to create a permanent, leak-proof chemical weld. One end inserts directly into any standard metric PVC-U socket, while the female end accommodates standard metric pipe, avoiding unnecessary pipe cuts and short connecting sleeves.

Proper joint preparation requires deburring and chamfering the spigot, cleaning bonding surfaces with a designated solvent cleaner, and applying certified solvent cement such as Tangit. As an authorised Georg Fischer distributor, BigWeld provides complete system packages, matching adhesives, and technical support for industrial piping installations across Europe.

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer 90 degrees male/female (M/F) elbow in unplasticised polyvinyl chloride (PVC-U) delivers a compact directional change for industrial pressure piping. Engineered with a metric male spigot at one end and a female solvent cement socket at the other, this fitting connects directly into adjacent socketed components to eliminate intermediate pipe spools and minimise skid footprint. BigWeld supplies this PN16 fitting for chemical processing, water treatment, and industrial plant engineering.

Technical specifications

This metric PVC-U elbow provides dependable PN16 pressure containment across standard ambient and process temperatures. Its spigot-to-socket geometry significantly cuts axial assembly length in compact valve clusters and pump manifolds without compromising hydraulic flow characteristics.

The streamlined interior profile prevents turbulence and limits pressure loss across continuous fluid circuits:

  • Nominal pressure: PN16 (16 bar at 20 °C) with temperature de-rating up to +60 °C
  • Dimensional range: Metric outside diameters d50 mm and d63 mm
  • Connection type: Plain male spigot end to female solvent cement socket
  • Flow geometry: 90 degrees directional change with smooth internal bore
  • Operational temperature: Continuous service from 0 °C to +60 °C

Materials and standards

Manufactured from high-grade unplasticised polyvinyl chloride compound in dark grey RAL 7011, the elbow complies fully with EN ISO 1452-3 and DIN 8063. The non-corrosive thermoplastic construction guarantees complete inertness in contact with harsh chemical media and aggressive utility streams.

The formulation provides exceptional resistance against inorganic acids, alkalis, salt solutions, and treated water networks. Because PVC-U is non-toxic, tasteless, and physiologically neutral, the component maintains medium purity in process piping, cooling loops, aquaculture systems, and potable water distribution without risk of corrosion, scaling, or biological encrustation.

Installation and jointing

Jointing is performed via cold solvent cement socket fusion to create a permanent, leak-proof chemical weld. One end inserts directly into any standard metric PVC-U socket, while the female end accommodates standard metric pipe, avoiding unnecessary pipe cuts and short connecting sleeves.

Proper joint preparation requires deburring and chamfering the spigot, cleaning bonding surfaces with a designated solvent cleaner, and applying certified solvent cement such as Tangit. As an authorised Georg Fischer distributor, BigWeld provides complete system packages, matching adhesives, and technical support for industrial piping installations across Europe.
