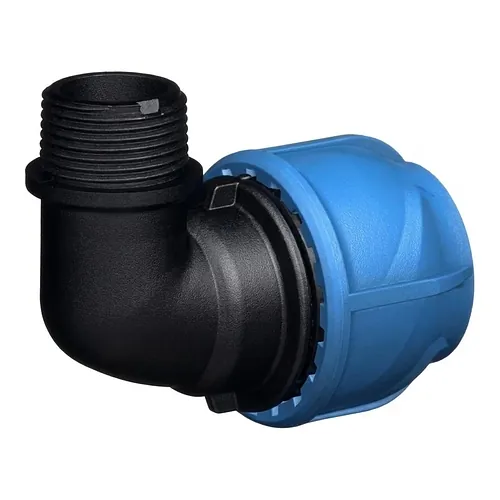

90 Degree Male Threaded Compression Elbow iJOINT PP PN16

  Data Sheet |   Product Range | Instructional Video

The Georg Fischer iJOINT 90-degree compression elbow with threaded male off take is a high-performance polypropylene fitting engineered for direct connection of polyethylene (PE 80, PE 100, PEX, and PEX-a) pipes to female-threaded network components. Designed for demanding pressurized water distribution lines, civil service connections, high-end agricultural irrigation, and industrial process piping, this compression elbow provides a secure 90-degree directional transition with maximum hydraulic efficiency and long-term reliability under continuous PN16 (16 bar) operating pressure.

Engineered by GF Piping Systems, the fitting body and nut are manufactured from UV-stabilized polypropylene impact copolymer (PP-B) complying with ISO 9080 long-term aging standards. The compression mechanism utilizes an advanced push-fit system that enables effortless installation without disassembling the nut or chamfering the pipe ends. Inside the joint, a factory-lubricated, food-grade EPDM lip gasket provides positive sealing even on ovalized, undersized, or slightly scratched pipe surfaces, while a high-tensile polyacetal (POM) grip ring bites firmly into the pipe wall to deliver superior pull-out restraint and water hammer resistance. The male threaded outlet features a taper thread manufactured according to DIN EN 10226 (ISO 7-1) standards for leak-tight integration with valves, pumps, and metal hardware.

Operating reliably within a temperature range of -10 °C to +45 °C, the iJOINT elbow is entirely non-corrosive, preventing internal incrustation and galvanic degradation. The system holds major international drinking water approvals, including DVGW GW 335-B3, ACS, KIWA, and SVGW, conforming strictly to ISO 17885, DIN 8076-3, and DIN EN 12201 standards. As an authorised Georg Fischer distributor, BigWeld delivers genuine iJOINT compression solutions across Europe, providing technical expertise and reliable stock for municipal, utility, and industrial piping infrastructure.
