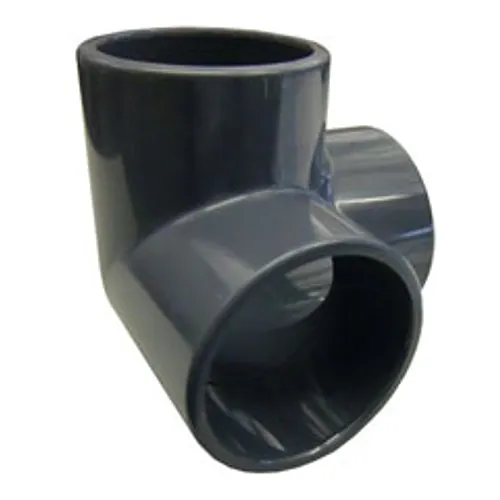

Three-way 90-degree PVC-U elbow pipe fitting for industrial corner connections, durable grey plastic pressure connector.

Three-Way Elbow PVC-U PN16 d50-d63

Material: PVC-U PN: 16 Bar

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer PVC-U three-way elbow PN16 is a specialised metric thermoplastic fitting engineered for directional changes and multi-axis fluid distribution across three spatial planes. Designed for industrial plant engineers and process installers, this heavy-duty fitting provides compact routing for manifold assemblies in outer diameters d50 mm and d63 mm. Rated for PN16 working pressure at 20 degrees Celsius, it delivers uncompromised hydraulic performance, structural rigidity, and exceptional chemical resistance in demanding processing environments.

Technical specifications

This component provides calibrated metric solvent cement sockets designed for high structural integrity under continuous pressure cycles. Engineered according to strict industrial standards, the unplasticised polyvinyl chloride formulation maintains full mechanical strength up to a maximum operating limit of 60 degrees Celsius when appropriate thermal de-rating factors are applied.

  • Nominal pressure class: PN16 (16 bar at 20 degrees Celsius)
  • Available outer diameters: metric d50 mm and d63 mm socket ends
  • Body compound: unplasticised polyvinyl chloride (PVC-U), grey RAL 7011
  • Geometric configuration: three-way 90-degree spatial branching elbow
  • Operating temperature limit: up to 60 degrees Celsius with pressure de-rating
  • Media suitability: acids, alkalis, inorganic salts, and industrial process water

Applications

The three-way elbow geometry is specifically developed to simplify piping layouts where space restrictions prevent conventional combinations of multiple standard fittings. By consolidating multidirectional routing into a single compact fitting, it eliminates additional joint interfaces and reduces potential pressure drops across complex manifolds.

Typical installations include industrial water treatment systems, commercial swimming pool filtration headers, chemical dosing circuits, and secondary process cooling loops. The corrosion-proof thermoplastic construction eliminates scaling, pitting, and external atmospheric oxidation, making it an ideal long-term alternative to metallic pipe assemblies. As an authorised Georg Fischer distributor, BigWeld supplies certified thermoplastic piping components designed to withstand challenging operational loads.

Installation and jointing

Jointing is performed via solvent cement socket fusion to establish a permanent, homogeneous chemical bond between the pipe spigots and fitting sockets. Precision manufacturing ensures tight dimensional tolerances and uniform adhesive gap distribution across all three socket cavities.

Installers must bevel pipe ends and clean all bonding surfaces thoroughly with Tangit cleaner prior to applying Tangit PVC-U or Tangit DTX solvent adhesive. Pipe brackets must support adjoining runs close to the manifold to avoid transferring excessive bending moments or mechanical stresses into the jointed sockets. The resulting assembly delivers complete leak tightness and full shear strength under hydraulic test pressures.

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer PVC-U three-way elbow PN16 is a specialised metric thermoplastic fitting engineered for directional changes and multi-axis fluid distribution across three spatial planes. Designed for industrial plant engineers and process installers, this heavy-duty fitting provides compact routing for manifold assemblies in outer diameters d50 mm and d63 mm. Rated for PN16 working pressure at 20 degrees Celsius, it delivers uncompromised hydraulic performance, structural rigidity, and exceptional chemical resistance in demanding processing environments.

Technical specifications

This component provides calibrated metric solvent cement sockets designed for high structural integrity under continuous pressure cycles. Engineered according to strict industrial standards, the unplasticised polyvinyl chloride formulation maintains full mechanical strength up to a maximum operating limit of 60 degrees Celsius when appropriate thermal de-rating factors are applied.

  • Nominal pressure class: PN16 (16 bar at 20 degrees Celsius)
  • Available outer diameters: metric d50 mm and d63 mm socket ends
  • Body compound: unplasticised polyvinyl chloride (PVC-U), grey RAL 7011
  • Geometric configuration: three-way 90-degree spatial branching elbow
  • Operating temperature limit: up to 60 degrees Celsius with pressure de-rating
  • Media suitability: acids, alkalis, inorganic salts, and industrial process water

Applications

The three-way elbow geometry is specifically developed to simplify piping layouts where space restrictions prevent conventional combinations of multiple standard fittings. By consolidating multidirectional routing into a single compact fitting, it eliminates additional joint interfaces and reduces potential pressure drops across complex manifolds.

Typical installations include industrial water treatment systems, commercial swimming pool filtration headers, chemical dosing circuits, and secondary process cooling loops. The corrosion-proof thermoplastic construction eliminates scaling, pitting, and external atmospheric oxidation, making it an ideal long-term alternative to metallic pipe assemblies. As an authorised Georg Fischer distributor, BigWeld supplies certified thermoplastic piping components designed to withstand challenging operational loads.

Installation and jointing

Jointing is performed via solvent cement socket fusion to establish a permanent, homogeneous chemical bond between the pipe spigots and fitting sockets. Precision manufacturing ensures tight dimensional tolerances and uniform adhesive gap distribution across all three socket cavities.

Installers must bevel pipe ends and clean all bonding surfaces thoroughly with Tangit cleaner prior to applying Tangit PVC-U or Tangit DTX solvent adhesive. Pipe brackets must support adjoining runs close to the manifold to avoid transferring excessive bending moments or mechanical stresses into the jointed sockets. The resulting assembly delivers complete leak tightness and full shear strength under hydraulic test pressures.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 50 mm
RV0GTI500
Material: PVC-U
PN: 16 Bar
pcs €5.80
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
RV0GTI630
Material: PVC-U
PN: 16 Bar
pcs €8.36
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: RV0GTI500
D: 50 mm
Ships in 24 hours
€5.80 / pcs
SKU: RV0GTI630
D: 63 mm
Ships in 24 hours
€8.36 / pcs
