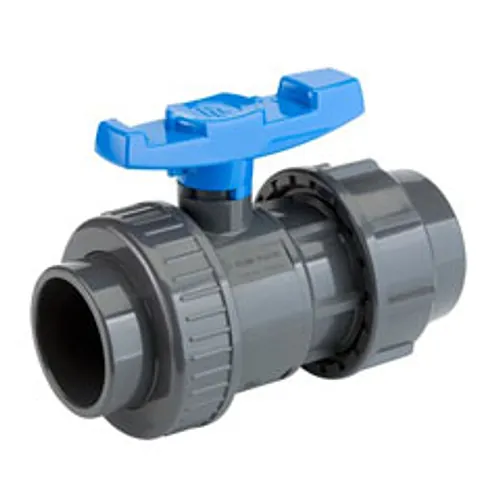

PVC-U d50 PN16 ball valve with compression fitting and blue handle

Ball valve with compression fitting PVC-U d50 PN16

Material: PVC-U PN: 16 Bar

  Datasheet (PDF) |   Product Range | Instructional Video

This industrial PVC-U ball valve d50 mm combines a single union safeblock design with an integrated mechanical compression fitting engineered for demanding piping installations. Rated for a nominal pressure of PN16 at 20 degrees Celsius, this quarter-turn valve provides dependable manual isolation for potable water networks, agricultural irrigation systems, and chemical fluid distribution lines. Its robust construction delivers exceptional structural containment and tight shut-off.

Technical specifications

The d50 mm valve is engineered for PN16 pressure containment with low operating torque and superior chemical resistance across water treatment and process piping. The single union safeblock mechanism secures the internal ball and seat assembly, permitting downstream maintenance while keeping upstream line pressure completely contained.

  • Nominal outer diameter: d50 mm
  • Nominal working pressure: PN16 (16 bar at 20 degrees Celsius)
  • Body and ball material: Unplasticised polyvinyl chloride (PVC-U)
  • Primary elastomer seals: EPDM O-rings with low-friction ball seats
  • End connection: Integrated mechanical compression fitting and single union nut
  • Actuation: Quarter-turn ergonomic manual lever with visual position indication

Designed for long-term service life of up to 50 years under standard operating conditions, this PVC-U valve body remains completely unaffected by galvanic corrosion, electrolytic deterioration, and internal scaling. The smooth internal bore ensures optimal flow dynamics with minimal hydraulic head loss across continuous fluid conveyance systems.

Applications

This compression ball valve serves as a reliable isolation point in agricultural irrigation manifolds, technical fluid processing networks, and municipal water treatment plants. The unplasticised polyvinyl chloride compound guarantees safe conveyance of potable water and outstanding resistance to inorganic acids, alkalis, and saline solutions.

Contractors and industrial engineers frequently specify this valve for pump stations, filtration batteries, chemical dosing lines, and greenhouse watering networks where dependable shut-off is critical. The chemically inert thermoplastic body resists aggressive ground conditions in buried utility installations as well as exposed technical plant environments. It is not recommended for uninhibited oxidizing media or operating temperatures exceeding standard PVC-U thermal ratings.

Installation and jointing

Mechanical jointing is achieved directly onto d50 mm piping using the integrated compression collar without requiring solvent cements or thermal fusion tooling. The radial grip ring and elastomeric seal deliver complete hydraulic tightness under operational vibration and thermal pressure fluctuations.

Before inserting the pipe into the compression collar, ensure the pipe end is cut square, deburred, and chamfered to prevent damaging the internal elastomeric gasket. Slide the pipe through the compression nut and seal assembly until fully seated against the internal stop, then tighten the compression nut firmly by hand or with an approved fitting wrench. The single union connection on the opposite side allows rapid valve dismounting and servicing without disassembling adjacent pipeline sections.

  Datasheet (PDF) |   Product Range | Instructional Video

This industrial PVC-U ball valve d50 mm combines a single union safeblock design with an integrated mechanical compression fitting engineered for demanding piping installations. Rated for a nominal pressure of PN16 at 20 degrees Celsius, this quarter-turn valve provides dependable manual isolation for potable water networks, agricultural irrigation systems, and chemical fluid distribution lines. Its robust construction delivers exceptional structural containment and tight shut-off.

Technical specifications

The d50 mm valve is engineered for PN16 pressure containment with low operating torque and superior chemical resistance across water treatment and process piping. The single union safeblock mechanism secures the internal ball and seat assembly, permitting downstream maintenance while keeping upstream line pressure completely contained.

  • Nominal outer diameter: d50 mm
  • Nominal working pressure: PN16 (16 bar at 20 degrees Celsius)
  • Body and ball material: Unplasticised polyvinyl chloride (PVC-U)
  • Primary elastomer seals: EPDM O-rings with low-friction ball seats
  • End connection: Integrated mechanical compression fitting and single union nut
  • Actuation: Quarter-turn ergonomic manual lever with visual position indication

Designed for long-term service life of up to 50 years under standard operating conditions, this PVC-U valve body remains completely unaffected by galvanic corrosion, electrolytic deterioration, and internal scaling. The smooth internal bore ensures optimal flow dynamics with minimal hydraulic head loss across continuous fluid conveyance systems.

Applications

This compression ball valve serves as a reliable isolation point in agricultural irrigation manifolds, technical fluid processing networks, and municipal water treatment plants. The unplasticised polyvinyl chloride compound guarantees safe conveyance of potable water and outstanding resistance to inorganic acids, alkalis, and saline solutions.

Contractors and industrial engineers frequently specify this valve for pump stations, filtration batteries, chemical dosing lines, and greenhouse watering networks where dependable shut-off is critical. The chemically inert thermoplastic body resists aggressive ground conditions in buried utility installations as well as exposed technical plant environments. It is not recommended for uninhibited oxidizing media or operating temperatures exceeding standard PVC-U thermal ratings.

Installation and jointing

Mechanical jointing is achieved directly onto d50 mm piping using the integrated compression collar without requiring solvent cements or thermal fusion tooling. The radial grip ring and elastomeric seal deliver complete hydraulic tightness under operational vibration and thermal pressure fluctuations.

Before inserting the pipe into the compression collar, ensure the pipe end is cut square, deburred, and chamfered to prevent damaging the internal elastomeric gasket. Slide the pipe through the compression nut and seal assembly until fully seated against the internal stop, then tighten the compression nut firmly by hand or with an approved fitting wrench. The single union connection on the opposite side allows rapid valve dismounting and servicing without disassembling adjacent pipeline sections.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 50 mm
VSA18P500
Material: PVC-U
PN: 16 Bar
pcs €31.92
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: VSA18P500
D: 50 mm
Ships in 24 hours
€31.92 / pcs
