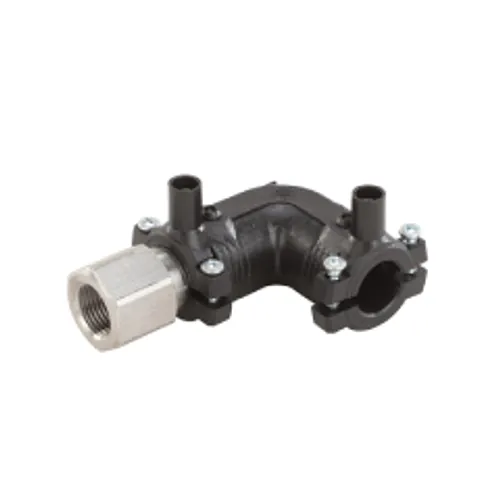

Black electrofusion transition elbow 90 degrees PE100 with stainless steel female thread

Transition elbow 90 degrees PE100 to stainless steel female thread

Material: Polyethylene PN: 16 Bar SDR: 11

  D |   Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus 90 degrees transition elbow PE100 to stainless steel female thread provides a compact, fully integrated change of direction and material transition for pressurized pipelines. Engineered for utility gas networks, potable water lines, and industrial process piping, this electrofusion fitting connects PE100 pipes to threaded metal equipment without requiring separate mechanical adaptors or multiple intermediate joints, maintaining a pressure rating of PN16 for water and PN10 for gas at SDR 11 across the entire d20 to d63 range.

Technical specifications

The ELGEF Plus transition elbow combines an electrofusion socket with an ISO 7-1 parallel female thread (Rp) in a single moulded fitting. It simplifies layout design in plant rooms, metering skids, and buried utility tie-ins by delivering robust pressure containment and superior resistance to torsional tightening loads.

  • Size range: Electrofusion socket d20 mm to d63 mm with female thread Rp 1/2" to Rp 2".
  • Operating pressure: SDR 11 rated for PN16 (water) and PN10 (combustible gas).
  • Terminal contacts: Standard 4 mm welding pin connectors with covered heating coils.
  • Weld monitoring: Integrated limited path fusion indicators for visual joint verification.
  • Pre-clamping: Built-in pipe fixation mechanism across all sizes from d20 to d63.

Materials and standards

The fitting body is precision-moulded from 100% virgin black PE100 compound around a robust stainless steel threaded insert. It conforms to strict international quality standards to ensure long-term durability in aggressive operating environments and buried municipal utilities.

Manufactured and tested in compliance with EN 12201-3 for water distribution, EN 1555-3 for gas supply, and EN ISO 15494 for industrial fluid systems, the PE100 material exhibits outstanding mechanical endurance. The compound features a density of approximately 0.95 g/cm³, a tensile modulus of 900 N/mm², and high notch impact resistance, offering a Charpy value of 83 kJ/m² at 23 degrees Celsius and 13 kJ/m² at -40 degrees Celsius. The corrosion-resistant stainless steel insert withstands mechanical stress during valve or instrumentation mounting and eliminates the galvanic degradation risk encountered with mixed base metals.

Installation and jointing

Electrofusion joining is streamlined through the fitting's integral pipe fixation, which holds the PE100 pipe firmly aligned during fusion and cooling. This self-retaining design eliminates the requirement for external mechanical clamping brackets in confined trenches or crowded piping racks.

Jointing is performed using standard electrofusion control units through barcode scanning or manual parameter input via 4 mm terminals. Installers must scrape the pipe surface to remove the oxidized layer and degrease the jointing zone before insertion. When tightening male threaded components into the Rp stainless steel thread, installers should utilize approved thread sealants and adhere to standard torque limits to prevent overstressing adjacent pipework. As an authorised Georg Fischer distributor, BigWeld supplies the full ELGEF Plus electrofusion portfolio along with technical datasheets, certified equipment, and engineering support.

  D |   Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus 90 degrees transition elbow PE100 to stainless steel female thread provides a compact, fully integrated change of direction and material transition for pressurized pipelines. Engineered for utility gas networks, potable water lines, and industrial process piping, this electrofusion fitting connects PE100 pipes to threaded metal equipment without requiring separate mechanical adaptors or multiple intermediate joints, maintaining a pressure rating of PN16 for water and PN10 for gas at SDR 11 across the entire d20 to d63 range.

Technical specifications

The ELGEF Plus transition elbow combines an electrofusion socket with an ISO 7-1 parallel female thread (Rp) in a single moulded fitting. It simplifies layout design in plant rooms, metering skids, and buried utility tie-ins by delivering robust pressure containment and superior resistance to torsional tightening loads.

  • Size range: Electrofusion socket d20 mm to d63 mm with female thread Rp 1/2" to Rp 2".
  • Operating pressure: SDR 11 rated for PN16 (water) and PN10 (combustible gas).
  • Terminal contacts: Standard 4 mm welding pin connectors with covered heating coils.
  • Weld monitoring: Integrated limited path fusion indicators for visual joint verification.
  • Pre-clamping: Built-in pipe fixation mechanism across all sizes from d20 to d63.

Materials and standards

The fitting body is precision-moulded from 100% virgin black PE100 compound around a robust stainless steel threaded insert. It conforms to strict international quality standards to ensure long-term durability in aggressive operating environments and buried municipal utilities.

Manufactured and tested in compliance with EN 12201-3 for water distribution, EN 1555-3 for gas supply, and EN ISO 15494 for industrial fluid systems, the PE100 material exhibits outstanding mechanical endurance. The compound features a density of approximately 0.95 g/cm³, a tensile modulus of 900 N/mm², and high notch impact resistance, offering a Charpy value of 83 kJ/m² at 23 degrees Celsius and 13 kJ/m² at -40 degrees Celsius. The corrosion-resistant stainless steel insert withstands mechanical stress during valve or instrumentation mounting and eliminates the galvanic degradation risk encountered with mixed base metals.

Installation and jointing

Electrofusion joining is streamlined through the fitting's integral pipe fixation, which holds the PE100 pipe firmly aligned during fusion and cooling. This self-retaining design eliminates the requirement for external mechanical clamping brackets in confined trenches or crowded piping racks.

Jointing is performed using standard electrofusion control units through barcode scanning or manual parameter input via 4 mm terminals. Installers must scrape the pipe surface to remove the oxidized layer and degrease the jointing zone before insertion. When tightening male threaded components into the Rp stainless steel thread, installers should utilize approved thread sealants and adhere to standard torque limits to prevent overstressing adjacent pipework. As an authorised Georg Fischer distributor, BigWeld supplies the full ELGEF Plus electrofusion portfolio along with technical datasheets, certified equipment, and engineering support.
