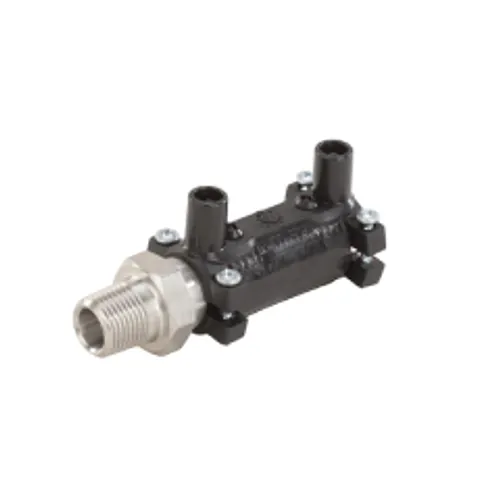

Electrofusion transition coupler PE100 with stainless steel male thread R and fusion terminals

Electrofusion transition coupler PE100/stainless steel male thread R

Material: Polyethylene PN: 16 Bar SDR: 11

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus electrofusion transition coupler PE100 to stainless steel with male thread R enables high-integrity mechanical transitions between polyethylene piping and threaded metallic components. Rated at SDR 11 for working pressures up to 16 bar for water and 10 bar for natural gas, this factory-assembled transition fitting guarantees full pull-out resistance and permanent leak tightness in buried utility networks and demanding industrial supply installations.

Technical specifications

This SDR 11 transition coupler combines an electrofusion socket with an engineered stainless steel conical male thread to provide robust transition jointing. Each fitting incorporates standard 4 mm terminal pins, limited-path visual fusion indicators, and integral pipe fixation designed for the d20 to d63 mm dimensional range.

  • Nominal pressure rating: 16 bar for water distribution / 10 bar for combustible gas networks
  • Dimensional ratio: SDR 11 compatibility across PE100 and PE80 pipelines
  • Welding interface: 4 mm terminal connector pins with limited-path visual fusion indicators
  • Metallic connection: Conical male thread R manufactured from corrosion-resistant stainless steel
  • Pipe stabilization: Integral pipe fixation mechanism preventing movement during fusion
  • Standard compliance: Certified to EN 12201-3 for water and EN 1555-3 for gas utilities

Installation and jointing

The electrofusion socket features an integrated pipe fixation mechanism that secures the inserted polyethylene pipe directly within the body, eliminating the need for external alignment clamps during the fusion cycle. Standard 4 mm connector pins ensure full compatibility with modern automated electrofusion welding units, while factory barcodes enable full digital traceability.

During the electrofusion cycle, the limited-path visual fusion indicators verify that thermal energy has been properly transferred to the joint interface without excessive melt expansion. Installers must properly peel the PE pipe surface and mark insertion depths prior to assembly. The factory-assembled stainless steel male thread R guarantees axial restraint and structural stability under operational ground movement and continuous thermal cycling.

Materials and standards

Manufactured from 100% virgin PE100 resin compounded with an integrated stainless steel insert, the fitting provides a design service life exceeding 100 years. The assembly complies strictly with EN 12201 for pressurized water conveyance and EN 1555 for natural gas distribution systems.

The high-density polyethylene compound delivers exceptional resistance to environmental stress cracking, aggressive soil conditions, UV degradation, and internal chemical wear. The stainless steel threaded insert ensures zero corrosion and preserves joint integrity without contaminating potable water systems or deteriorating under harsh utility conditions.

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus electrofusion transition coupler PE100 to stainless steel with male thread R enables high-integrity mechanical transitions between polyethylene piping and threaded metallic components. Rated at SDR 11 for working pressures up to 16 bar for water and 10 bar for natural gas, this factory-assembled transition fitting guarantees full pull-out resistance and permanent leak tightness in buried utility networks and demanding industrial supply installations.

Technical specifications

This SDR 11 transition coupler combines an electrofusion socket with an engineered stainless steel conical male thread to provide robust transition jointing. Each fitting incorporates standard 4 mm terminal pins, limited-path visual fusion indicators, and integral pipe fixation designed for the d20 to d63 mm dimensional range.

  • Nominal pressure rating: 16 bar for water distribution / 10 bar for combustible gas networks
  • Dimensional ratio: SDR 11 compatibility across PE100 and PE80 pipelines
  • Welding interface: 4 mm terminal connector pins with limited-path visual fusion indicators
  • Metallic connection: Conical male thread R manufactured from corrosion-resistant stainless steel
  • Pipe stabilization: Integral pipe fixation mechanism preventing movement during fusion
  • Standard compliance: Certified to EN 12201-3 for water and EN 1555-3 for gas utilities

Installation and jointing

The electrofusion socket features an integrated pipe fixation mechanism that secures the inserted polyethylene pipe directly within the body, eliminating the need for external alignment clamps during the fusion cycle. Standard 4 mm connector pins ensure full compatibility with modern automated electrofusion welding units, while factory barcodes enable full digital traceability.

During the electrofusion cycle, the limited-path visual fusion indicators verify that thermal energy has been properly transferred to the joint interface without excessive melt expansion. Installers must properly peel the PE pipe surface and mark insertion depths prior to assembly. The factory-assembled stainless steel male thread R guarantees axial restraint and structural stability under operational ground movement and continuous thermal cycling.

Materials and standards

Manufactured from 100% virgin PE100 resin compounded with an integrated stainless steel insert, the fitting provides a design service life exceeding 100 years. The assembly complies strictly with EN 12201 for pressurized water conveyance and EN 1555 for natural gas distribution systems.

The high-density polyethylene compound delivers exceptional resistance to environmental stress cracking, aggressive soil conditions, UV degradation, and internal chemical wear. The stainless steel threaded insert ensures zero corrosion and preserves joint integrity without contaminating potable water systems or deteriorating under harsh utility conditions.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 20 mm
Thread 1/2"
724920756
Material: Polyethylene
PN: 16 Bar
SDR: 11
pcs €102.73
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
Thread 3/4"
724920757
Material: Polyethylene
PN: 16 Bar
SDR: 11
pcs €107.71
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
Thread 1"
724920758
Material: Polyethylene
PN: 16 Bar
SDR: 11
pcs €112.78
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
Thread 1 1/4"
724920759
Material: Polyethylene
PN: 16 Bar
SDR: 11
pcs €134.37
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
Thread 1 1/2"
724920760
Material: Polyethylene
PN: 16 Bar
SDR: 11
pcs €148.81
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
Thread 2"
724920761
Material: Polyethylene
PN: 16 Bar
SDR: 11
pcs €178.14
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 724920756
D: 20 mm
Thread: 1/2"
Ships in 24 hours
€102.73 / pcs
SKU: 724920757
D: 25 mm
Thread: 3/4"
Ships in 24 hours
€107.71 / pcs
SKU: 724920758
D: 32 mm
Thread: 1"
Ships in 24 hours
€112.78 / pcs
SKU: 724920759
D: 40 mm
Thread: 1 1/4"
Ships in 24 hours
€134.37 / pcs
SKU: 724920760
D: 50 mm
Thread: 1 1/2"
Ships in 24 hours
€148.81 / pcs
SKU: 724920761
D: 63 mm
Thread: 2"
Ships in 24 hours
€178.14 / pcs
