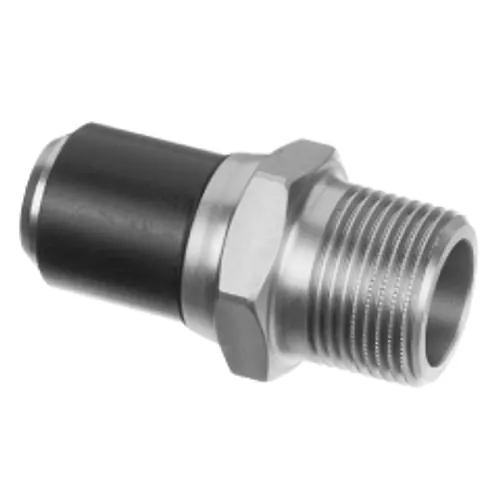

Transition adapter PE100 to stainless steel male thread SDR11 with black spigot

Transition Adapter PE100/Stainless Steel Male Thread SDR11

Material: Polyethylene PN: 16 Bar SDR: 11

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus PE100 to stainless steel male thread transition adapter provides a permanent, leak-tight connection between polyethylene pipe systems and metallic threaded components. Engineered for utility and industrial distribution networks, this SDR11 transition fitting is rated for working pressures up to 16 bar for water and 10 bar for gas. It enables seamless integration between PEHD pipelines and threaded metal valves, pumps, or instrumentation.

Technical specifications

This SDR11 transition fitting combines a high-density polyethylene PE100 spigot with a precision-machined stainless steel male thread to deliver high mechanical integrity and pressure containment. The joint is internally interlocked to prevent axial pull-out and rotational movement during service.

  • Nominal pressure rating: 16 bar for water distribution systems and 10 bar for combustible gas networks
  • Dimensional standard: Standard Dimension Ratio SDR11, compatible with SDR9 to SDR11 pipes
  • Connection types: PE100 spigot end for fusion welding and external male thread
  • Operating temperature: Engineered for utility water and gas networks in full accordance with EN 12201 and EN 1555
  • Mechanical retention: Integrated anti-rotation and tensile-resistant mechanical interlock between plastic and metal

Materials and standards

Manufactured from fully compounded virgin PE100 resin paired with premium austenitic V2A stainless steel (grade 1.4305), this adapter provides outstanding corrosion resistance and chemical stability. It eliminates galvanic degradation at the metal-plastic interface and ensures an expected service life exceeding 50 years.

The polyethylene component conforms to EN 12201 for drinking water supply and EN 1555 for fuel gas distribution, while the stainless steel thread guarantees clean, gall-free mechanical threading into metal equipment. As an authorised Georg Fischer distributor, BigWeld supplies certified ELGEF Plus utility components that meet rigorous European utility specifications and ISO 9001 manufacturing quality standards.

Installation and jointing

The PE100 spigot end can be welded into pipeline networks using electrofusion couplers or butt fusion welding according to DVS 2207 procedures. The threaded stainless steel end connects directly into metal fittings, valves, or meters using standard pipe thread sealants.

Installers should first complete the polyethylene welding operation using electrofusion fittings or qualified butt fusion procedures. Allow the fusion joint to cool completely in accordance with standard cooling time guidelines before tightening the metallic male thread. This sequential assembly protects the polyethylene spigot from excessive torsional stresses and prevents joint misalignment during system installation.

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus PE100 to stainless steel male thread transition adapter provides a permanent, leak-tight connection between polyethylene pipe systems and metallic threaded components. Engineered for utility and industrial distribution networks, this SDR11 transition fitting is rated for working pressures up to 16 bar for water and 10 bar for gas. It enables seamless integration between PEHD pipelines and threaded metal valves, pumps, or instrumentation.

Technical specifications

This SDR11 transition fitting combines a high-density polyethylene PE100 spigot with a precision-machined stainless steel male thread to deliver high mechanical integrity and pressure containment. The joint is internally interlocked to prevent axial pull-out and rotational movement during service.

  • Nominal pressure rating: 16 bar for water distribution systems and 10 bar for combustible gas networks
  • Dimensional standard: Standard Dimension Ratio SDR11, compatible with SDR9 to SDR11 pipes
  • Connection types: PE100 spigot end for fusion welding and external male thread
  • Operating temperature: Engineered for utility water and gas networks in full accordance with EN 12201 and EN 1555
  • Mechanical retention: Integrated anti-rotation and tensile-resistant mechanical interlock between plastic and metal

Materials and standards

Manufactured from fully compounded virgin PE100 resin paired with premium austenitic V2A stainless steel (grade 1.4305), this adapter provides outstanding corrosion resistance and chemical stability. It eliminates galvanic degradation at the metal-plastic interface and ensures an expected service life exceeding 50 years.

The polyethylene component conforms to EN 12201 for drinking water supply and EN 1555 for fuel gas distribution, while the stainless steel thread guarantees clean, gall-free mechanical threading into metal equipment. As an authorised Georg Fischer distributor, BigWeld supplies certified ELGEF Plus utility components that meet rigorous European utility specifications and ISO 9001 manufacturing quality standards.

Installation and jointing

The PE100 spigot end can be welded into pipeline networks using electrofusion couplers or butt fusion welding according to DVS 2207 procedures. The threaded stainless steel end connects directly into metal fittings, valves, or meters using standard pipe thread sealants.

Installers should first complete the polyethylene welding operation using electrofusion fittings or qualified butt fusion procedures. Allow the fusion joint to cool completely in accordance with standard cooling time guidelines before tightening the metallic male thread. This sequential assembly protects the polyethylene spigot from excessive torsional stresses and prevents joint misalignment during system installation.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 20 mm
Thread 1/2"
724920706
Material: Polyethylene
PN: 16 Bar
SDR: 11
pcs €83.27
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
Thread 3/4"
724920707
Material: Polyethylene
PN: 16 Bar
SDR: 11
pcs €85.73
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
Thread 1"
724920708
Material: Polyethylene
PN: 16 Bar
SDR: 11
pcs €89.02
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
Thread 1 1/4"
724920709
Material: Polyethylene
PN: 16 Bar
SDR: 11
pcs €109.46
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
Thread 1 1/2"
724920710
Material: Polyethylene
PN: 16 Bar
SDR: 11
pcs €110.16
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
Thread 1 1/2"
724920721
Material: Polyethylene
PN: 16 Bar
SDR: 11
pcs €121.19
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
Thread 2"
724920711
Material: Polyethylene
PN: 16 Bar
SDR: 11
pcs €137.50
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 724920706
D: 20 mm
Thread: 1/2"
Ships in 24 hours
€83.27 / pcs
SKU: 724920707
D: 25 mm
Thread: 3/4"
Ships in 24 hours
€85.73 / pcs
SKU: 724920708
D: 32 mm
Thread: 1"
Ships in 24 hours
€89.02 / pcs
SKU: 724920709
D: 40 mm
Thread: 1 1/4"
Ships in 24 hours
€109.46 / pcs
SKU: 724920710
D: 50 mm
Thread: 1 1/2"
Ships in 24 hours
€110.16 / pcs
SKU: 724920721
D: 63 mm
Thread: 1 1/2"
Ships in 24 hours
€121.19 / pcs
SKU: 724920711
D: 63 mm
Thread: 2"
Ships in 24 hours
€137.50 / pcs
