PVC-A PN12.5 Pressure Pipe LaReTer
Manufactured by LaReTer in Italy, the PVC-A PN12.5 pressure pipe is engineered for municipal potable water transport, pressurized irrigation, and industrial fluid distribution. Combining unplasticized polyvinyl chloride with chlorinated polyethylene modifiers, this polymeric alloy eliminates brittle fracture risks while maintaining high tensile strength and structural rigidity. Supplied in 6,000 mm lengths in RAL 5015 blue, it delivers a nominal operating pressure of 12.5 bar at 20 degrees Celsius and an annular ring stiffness of SN 10 kN/m2 across nominal outside diameters from 50 mm to 500 mm.
Technical specifications
The PVC-A PN12.5 piping system provides superior hydraulic efficiency and impact tolerance under demanding operating conditions. Its ductile formulation arrests rapid crack propagation caused by surface scratches or concentrated point loads, while its smooth bore minimizes head loss and pumping energy requirements.
- Nominal working pressure: PN 12.5 (12.5 bar at 20 degrees Celsius) with temperature derating up to 60 degrees Celsius per DIN 8061-62
- Annular ring stiffness: SN 10 kN/m2 across all diameters from 50 mm to 500 mm
- Hydraulic roughness coefficient: k = 0.003 mm according to Hazen-Williams flow formulas
- Mechanical properties: Young's modulus of 2,500 MPa and yield tensile strength of at least 40 MPa per EN ISO 6259-1
- Negative pressure tightness: certified vacuum resistance down to -0.5 bar
- Thermal stability: Vicat softening temperature of at least 80 degrees Celsius conforming to ISO 2507
Installation and jointing

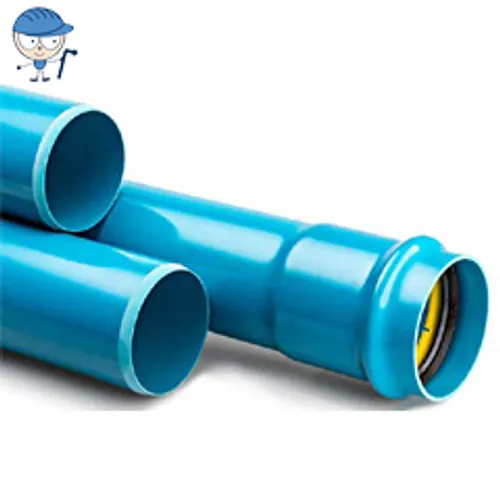

Each pipe section features an integrally thermoformed socket equipped with a factory pre-inserted Forsheda Power-Lock gasket. This jointing geometry simplifies field assembly, requires lower push-in insertion forces, and permits angular deflections up to 3 degrees to follow trench elevation changes without stressing the pipeline.
The Power-Lock sealing system integrates an elastomeric EPDM lip conforming to EN 681-1 and a co-molded yellow polypropylene retaining ring without metallic components. Mechanically locked into the socket groove during thermoforming, the gasket cannot displace, twist, or push out during pipe insertion, eliminating typical assembly defects. Additionally, the alloy allows manual cold bending during installation, and the reduced pipe weight—approximately 25 percent lighter than equivalent PE pipelines—streamlines logistical handling and trench lowering.
Materials and standards
Formulated completely without plasticizers or heavy metal stabilizers, LaReTer PVC-A material maintains full physical stability and long-term chemical inertness. The piping system is certified for direct contact with drinking water and conforms to European manufacturing and testing directives.
Quality compliance is validated by KIWA European TIC certification under mark KQ KIWA QUALITY KIP-105133 in accordance with UNI EN 1452. Health and organoleptic safety comply strictly with Italian Ministerial Decree DM 174/2004, Circular No. 102/1978, and UNI EN 1622 for neutral threshold odour and flavour numbers. The material also conforms to ISO 1183 for specific gravity (1.38 to 1.40 g/cm3), ISO 2505 for longitudinal reversion, and ISO 7686 for light opacity, ensuring an anticipated operational design life exceeding 50 years.
Manufactured by LaReTer in Italy, the PVC-A PN12.5 pressure pipe is engineered for municipal potable water transport, pressurized irrigation, and industrial fluid distribution. Combining unplasticized polyvinyl chloride with chlorinated polyethylene modifiers, this polymeric alloy eliminates brittle fracture risks while maintaining high tensile strength and structural rigidity. Supplied in 6,000 mm lengths in RAL 5015 blue, it delivers a nominal operating pressure of 12.5 bar at 20 degrees Celsius and an annular ring stiffness of SN 10 kN/m2 across nominal outside diameters from 50 mm to 500 mm.
Technical specifications
The PVC-A PN12.5 piping system provides superior hydraulic efficiency and impact tolerance under demanding operating conditions. Its ductile formulation arrests rapid crack propagation caused by surface scratches or concentrated point loads, while its smooth bore minimizes head loss and pumping energy requirements.
- Nominal working pressure: PN 12.5 (12.5 bar at 20 degrees Celsius) with temperature derating up to 60 degrees Celsius per DIN 8061-62
- Annular ring stiffness: SN 10 kN/m2 across all diameters from 50 mm to 500 mm
- Hydraulic roughness coefficient: k = 0.003 mm according to Hazen-Williams flow formulas
- Mechanical properties: Young's modulus of 2,500 MPa and yield tensile strength of at least 40 MPa per EN ISO 6259-1
- Negative pressure tightness: certified vacuum resistance down to -0.5 bar
- Thermal stability: Vicat softening temperature of at least 80 degrees Celsius conforming to ISO 2507
Installation and jointing
Each pipe section features an integrally thermoformed socket equipped with a factory pre-inserted Forsheda Power-Lock gasket. This jointing geometry simplifies field assembly, requires lower push-in insertion forces, and permits angular deflections up to 3 degrees to follow trench elevation changes without stressing the pipeline.
The Power-Lock sealing system integrates an elastomeric EPDM lip conforming to EN 681-1 and a co-molded yellow polypropylene retaining ring without metallic components. Mechanically locked into the socket groove during thermoforming, the gasket cannot displace, twist, or push out during pipe insertion, eliminating typical assembly defects. Additionally, the alloy allows manual cold bending during installation, and the reduced pipe weight—approximately 25 percent lighter than equivalent PE pipelines—streamlines logistical handling and trench lowering.
Materials and standards
Formulated completely without plasticizers or heavy metal stabilizers, LaReTer PVC-A material maintains full physical stability and long-term chemical inertness. The piping system is certified for direct contact with drinking water and conforms to European manufacturing and testing directives.
Quality compliance is validated by KIWA European TIC certification under mark KQ KIWA QUALITY KIP-105133 in accordance with UNI EN 1452. Health and organoleptic safety comply strictly with Italian Ministerial Decree DM 174/2004, Circular No. 102/1978, and UNI EN 1622 for neutral threshold odour and flavour numbers. The material also conforms to ISO 1183 for specific gravity (1.38 to 1.40 g/cm3), ISO 2505 for longitudinal reversion, and ISO 7686 for light opacity, ensuring an anticipated operational design life exceeding 50 years.
| Size | SKU | U.M. |
Price
incl. 21% VAT
VAT is calculated at checkout. It depends on who is buying (private person or company) and where the order is shipped, so the final rate may differ from the one shown here.
|
Availability | Add To Cart |
|---|---|---|---|---|---|
|
D
50 mm
|
139612 | m | €2.76 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
63 mm
|
139613 | m | €4.39 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
90 mm
|
139614 | m | €8.07 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
110 mm
|
139615 | m | €9.86 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
125 mm
|
139616 | m | €13.13 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
140 mm
|
139617 | m | €15.98 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
160 mm
|
139618 | m | €20.93 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
200 mm
|
139619 | m | €32.59 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
225 mm
|
139620 | m | €41.13 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
250 mm
|
139621 | m | €50.34 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
280 mm
|
139622 | m | €67.30 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
315 mm
|
139623 | m | €79.48 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
355 mm
|
139624 | m | €112.47 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
400 mm
|
139625 | m | €136.09 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
500 mm
|
139626 | m | €213.63 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
