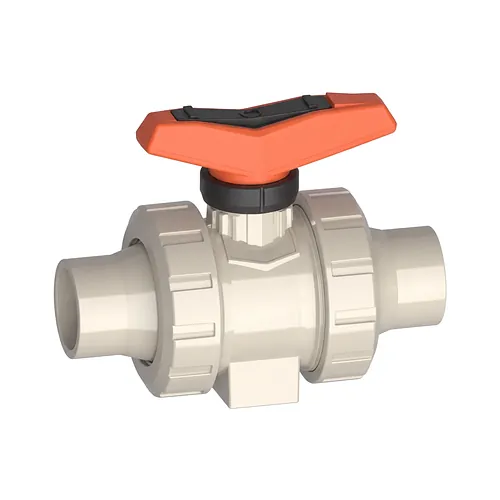

PROGEF Ball valve 546 Pro PP-H

  Datasheet (PDF)

The Georg Fischer PROGEF Standard 546 Pro ball valve is engineered from high-grade isotactic polypropylene homopolymer (beta-PP-H) for demanding chemical distribution, water treatment, and industrial processing systems. Designed in compliance with EN ISO 16135, this high-performance valve features a true double union configuration with metric butt fusion spigots compatible with infrared (IR Plus) and conventional butt welding across SDR 11 pipe networks. Rated for nominal operating pressures up to 10 bar (PN10) and tested in accordance with ISO 9393-2 and EN 12266 Leak Rate A, the valve is engineered for a 25-year operational service life with water at 20 degrees Celsius, exhibiting outstanding long-term hydrostatic strength and chemical resistance.

The internal mechanical assembly incorporates low-friction PTFE ball seats backed by elastomeric EPDM or FKM cushion rings. This dynamic configuration ensures self-adjusting sealing compensation and maintains constant, low operating torque throughout extensive cycling. Process safety is reinforced through an engineered safety stem featuring a predetermined shear breaking point located above the dual O-ring sealing package, preventing aggressive media leakage to the atmosphere even under severe mechanical impact. Robust buttress threads on the union nuts absorb high axial pipeline stresses, while left-hand threaded union bushings prevent inadvertent loosening during operational maintenance. The integrated stainless steel threaded inserts in the valve body facilitate secure mechanical fastening to pipe support systems without placing strain on adjacent pipe runs.

Operational handling is optimized via an ergonomic, glass-fibre reinforced lockable lever that includes an integrated disassembly tool for fast adjustment of the union bushes. As an authorised Georg Fischer distributor, BigWeld supplies the PROGEF 546 Pro series in sizes ranging from d20 to d110 (DN15 to DN100) to meet the exacting safety and operational demands of industrial plant engineers and mechanical piping contractors across Europe.
