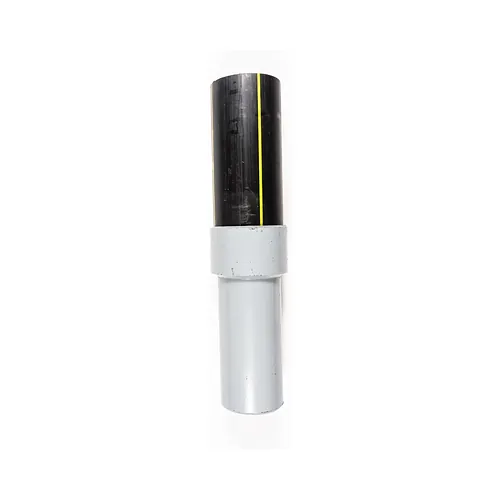

PE-steel transition fitting PE100 SDR11 for gas with black polyethylene pipe and steel spigot

PE-Steel Transition Fitting PE100 SDR11 Gas d32-630mm

Material: PE / Steel

  Datasheet (PDF)

The PE-Steel transition fitting is engineered for gas-tight, permanent connections between high-density polyethylene pipelines and metallic piping in combustible gas distribution infrastructure. Sized from d32 mm to d630 mm, this assembly provides an indivisible joint between PE100 SDR11 pipework and carbon steel lines for natural gas networks operating at working pressures up to 6 bar. It enables utility engineers and contractors to transition reliably between buried thermoplastic networks and above-ground steel manifolds or station risers.

Technical specifications

This transition fitting provides full structural integrity and hydraulic continuity without bore restriction across the transition zone. The mechanical joint is engineered to resist axial pull-out forces, ground settlement stresses, and dynamic loads encountered in buried gas distribution infrastructure.

  • Nominal size range: d32 mm to d630 mm spigot outlet
  • Pressure classification: up to 6 bar for natural gas distribution
  • Standard Dimension Ratio: SDR11 PE100 spigot end
  • Operating temperature: compliant with gas network utility criteria
  • Joint design: restrained, non-demountable mechanical transition seal
  • Flow characteristics: full bore without restrictive internal shoulders

Materials and standards

Every fitting combines virgin PE100 polyethylene with certified seamless or welded carbon steel pipe to ensure long-term integrity in demanding soil environments. The materials satisfy European norms governing polyethylene and metallic systems for fuel gas supply.

The polyethylene component conforms to EN 1555-2 and EN 1555-3 standards, exhibiting superior resistance to slow crack growth, chemical degradation, and environmental stress cracking. The steel section satisfies standard utility pipeline specifications for weldable carbon steel, allowing field welding or threading without degrading the adjacent factory-assembled transition seal. The resulting permanent connection prevents hydrocarbon micro-leakage and maintains leak-tight performance throughout the service life of the distribution system.

Installation and jointing

The spigot polyethylene end allows straightforward fusion into gas networks using standard electrofusion or butt fusion procedures. The metallic end connects directly to carbon steel piping via butt welding or threaded fittings according to project requirements.

When jointing the polyethylene spigot, installers can use Georg Fischer ELGEF Plus electrofusion couplers or conventional heated tool butt welding in accordance with DVS 2207 protocols. During steel welding operations, adequate thermal shielding or heat sinking must be applied to prevent excess heat conduction toward the internal polyethylene transition seal. These fittings are suited for underground district mains, connections to pressure regulating and metering stations, and transitions to above-ground metallic service risers.

  Datasheet (PDF)

The PE-Steel transition fitting is engineered for gas-tight, permanent connections between high-density polyethylene pipelines and metallic piping in combustible gas distribution infrastructure. Sized from d32 mm to d630 mm, this assembly provides an indivisible joint between PE100 SDR11 pipework and carbon steel lines for natural gas networks operating at working pressures up to 6 bar. It enables utility engineers and contractors to transition reliably between buried thermoplastic networks and above-ground steel manifolds or station risers.

Technical specifications

This transition fitting provides full structural integrity and hydraulic continuity without bore restriction across the transition zone. The mechanical joint is engineered to resist axial pull-out forces, ground settlement stresses, and dynamic loads encountered in buried gas distribution infrastructure.

  • Nominal size range: d32 mm to d630 mm spigot outlet
  • Pressure classification: up to 6 bar for natural gas distribution
  • Standard Dimension Ratio: SDR11 PE100 spigot end
  • Operating temperature: compliant with gas network utility criteria
  • Joint design: restrained, non-demountable mechanical transition seal
  • Flow characteristics: full bore without restrictive internal shoulders

Materials and standards

Every fitting combines virgin PE100 polyethylene with certified seamless or welded carbon steel pipe to ensure long-term integrity in demanding soil environments. The materials satisfy European norms governing polyethylene and metallic systems for fuel gas supply.

The polyethylene component conforms to EN 1555-2 and EN 1555-3 standards, exhibiting superior resistance to slow crack growth, chemical degradation, and environmental stress cracking. The steel section satisfies standard utility pipeline specifications for weldable carbon steel, allowing field welding or threading without degrading the adjacent factory-assembled transition seal. The resulting permanent connection prevents hydrocarbon micro-leakage and maintains leak-tight performance throughout the service life of the distribution system.

Installation and jointing

The spigot polyethylene end allows straightforward fusion into gas networks using standard electrofusion or butt fusion procedures. The metallic end connects directly to carbon steel piping via butt welding or threaded fittings according to project requirements.

When jointing the polyethylene spigot, installers can use Georg Fischer ELGEF Plus electrofusion couplers or conventional heated tool butt welding in accordance with DVS 2207 protocols. During steel welding operations, adequate thermal shielding or heat sinking must be applied to prevent excess heat conduction toward the internal polyethylene transition seal. These fittings are suited for underground district mains, connections to pressure regulating and metering stations, and transitions to above-ground metallic service risers.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 32 mm
PTS-32
Material: PE / Steel
pcs €19.41
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
PTS-40
Material: PE / Steel
pcs €30.27
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
PTS-50
Material: PE / Steel
pcs €32.98
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
PTS-63
Material: PE / Steel
pcs €38.42
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 75 mm
PTS-75
Material: PE / Steel
pcs €56.28
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 90 mm
PTS-90
Material: PE / Steel
pcs €81.51
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
PTS-110
Material: PE / Steel
pcs €85.76
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 125 mm
PTS-125
Material: PE / Steel
pcs €117.99
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 140 mm
PTS-140
Material: PE / Steel
pcs €160.68
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 160 mm
PTS-160
Material: PE / Steel
pcs €205.70
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 180 mm
PTS-180
Material: PE / Steel
pcs €265.47
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 200 mm
PTS-200
Material: PE / Steel
pcs €320.96
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 225 mm
PTS-225
Material: PE / Steel
pcs €455.26
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 250 mm
PTS-250
Material: PE / Steel
pcs €552.29
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 280 mm
PTS-280
Material: PE / Steel
pcs €731.98
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 315 mm
PTS-315
Material: PE / Steel
pcs €1,044.41
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 355 mm
PTS-355
Material: PE / Steel
pcs €2,117.94
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 400 mm
PTS-400
Material: PE / Steel
pcs €2,815.75
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 450 mm
PTS-450
Material: PE / Steel
pcs €3,358.73
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 500 mm
PTS-500
Material: PE / Steel
pcs €3,600.91
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 560 mm
PTS-560
Material: PE / Steel
pcs €3,059.88
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 630 mm
PTS-630
Material: PE / Steel
pcs €6,839.72
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: PTS-32
D: 32 mm
Ships in 24 hours
€19.41 / pcs
SKU: PTS-40
D: 40 mm
Ships in 24 hours
€30.27 / pcs
SKU: PTS-50
D: 50 mm
Ships in 24 hours
€32.98 / pcs
SKU: PTS-63
D: 63 mm
Ships in 24 hours
€38.42 / pcs
SKU: PTS-75
D: 75 mm
Ships in 24 hours
€56.28 / pcs
SKU: PTS-90
D: 90 mm
Ships in 24 hours
€81.51 / pcs
SKU: PTS-110
D: 110 mm
Ships in 24 hours
€85.76 / pcs
SKU: PTS-125
D: 125 mm
Ships in 24 hours
€117.99 / pcs
SKU: PTS-140
D: 140 mm
Ships in 24 hours
€160.68 / pcs
SKU: PTS-160
D: 160 mm
Ships in 24 hours
€205.70 / pcs
SKU: PTS-180
D: 180 mm
Ships in 24 hours
€265.47 / pcs
SKU: PTS-200
D: 200 mm
Ships in 24 hours
€320.96 / pcs
SKU: PTS-225
D: 225 mm
Ships in 24 hours
€455.26 / pcs
SKU: PTS-250
D: 250 mm
Ships in 24 hours
€552.29 / pcs
SKU: PTS-280
D: 280 mm
Ships in 24 hours
€731.98 / pcs
SKU: PTS-315
D: 315 mm
Ships in 24 hours
€1,044.41 / pcs
SKU: PTS-355
D: 355 mm
Ships in 24 hours
€2,117.94 / pcs
SKU: PTS-400
D: 400 mm
Ships in 24 hours
€2,815.75 / pcs
SKU: PTS-450
D: 450 mm
Ships in 24 hours
€3,358.73 / pcs
SKU: PTS-500
D: 500 mm
Ships in 24 hours
€3,600.91 / pcs
SKU: PTS-560
D: 560 mm
Ships in 24 hours
€3,059.88 / pcs
SKU: PTS-630
D: 630 mm
Ships in 24 hours
€6,839.72 / pcs
