COOL-FIT 2.0/4.0 Adaptor union PE/SS Rp

  Datasheet (PDF)

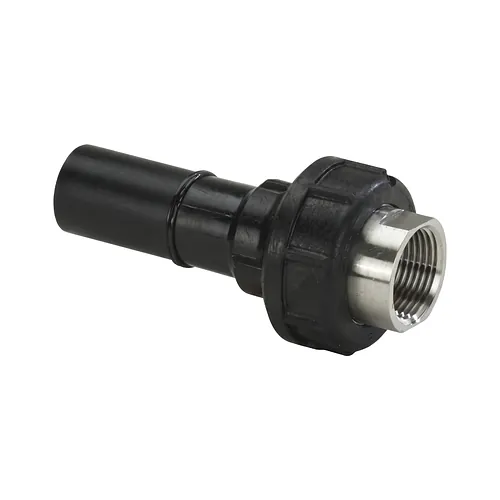

The Georg Fischer COOL-FIT 2.0/4.0 PE/stainless steel adaptor union is a precision-engineered transition fitting designed for demountable connections between pre-insulated polyethylene piping networks and threaded metal equipment in commercial air conditioning, refrigeration, and industrial cooling circuits. Engineered for seamless mechanical integration within secondary cooling loops operating at a nominal pressure of 16 bar (PN16, SDR11), this hybrid component bridges thermoplastic PE100 piping systems with metallic threaded valves, instruments, or plant apparatus. The union assembly comprises a PE100 SDR11 metric spigot union bush with a smooth free end suitable for electrofusion jointing, a precision-machined union end manufactured from high-grade stainless steel 1.4404 (316L) with an internal female thread Rp, and a robust union nut made of glass-fibre reinforced polyethylene (PEGF25). Critical internal fluid containment is maintained via a heavy-duty elastomeric EPDM O-ring gasket (No. 748 410 008-011), ensuring reliable, vapor-tight sealing against chilled water and aqueous glycol mixtures across an operating temperature range from 0 degrees Celsius to +60 degrees Celsius. By pairing the encrustation-free hydraulic performance of PE100 with the corrosion resistance of 316L stainless steel, the assembly prevents localized degradation at equipment transition points. The three-part detachable architecture facilitates rapid servicing and dismounting of connected machinery without sectioning the pipeline. Covering dimensions d32, d40, d50, and d63 mm (DN25 to DN50), this transition union guarantees maximum structural integrity, long-term pressure retention, and operational efficiency in chilled utility applications.
