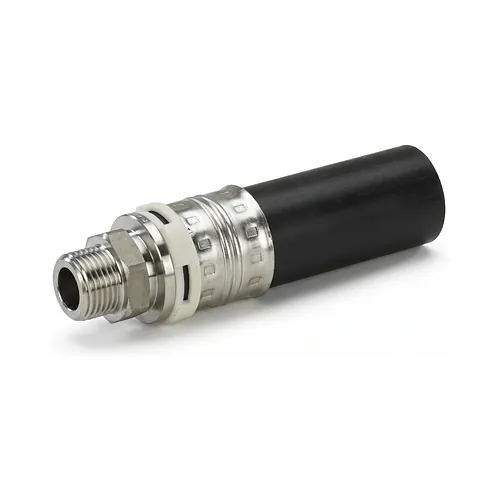

COOL-FIT 2.0/4.0 Adaptor PE/SS Male Thread R d32-63mm SDR11 PN16

COOL-FIT 2.0/4.0 Adaptor PE/SS Male Thread R d32-63mm SDR11 PN16

Material: PE100 / SS PN: 16 Bar SDR: 11

  Datasheet (PDF)

Georg Fischer COOL-FIT 2.0/4.0 PE to stainless steel adaptor fittings provide a factory-engineered transition between pre-insulated polyethylene cooling networks and threaded metallic equipment. Designed for secondary refrigeration, industrial HVAC, and process cooling loops, this transition fitting combines a PE100 SDR11 spigot with a grade 1.4404 (316L) stainless steel male thread R, rated for PN16 working pressure.

Technical specifications

This adaptor fitting delivers a leak-tight connection between thermoplastic distribution lines and metallic system components across demanding commercial and industrial cooling duties. The pre-assembled transition eliminates the need for mechanical compression couplings while maintaining full fluid containment under operating pressures up to 16 bar.

  • Nominal pressure: 16 bar (SDR11)
  • Operating temperature: 0 degrees Celsius to 60 degrees Celsius
  • Polymer material: Polyethylene PE100 spigot end
  • Metallic section: Stainless steel 1.4404 (AISI 316L) with external R thread
  • Internal sealing: High-integrity elastomeric EPDM O-ring
  • Size range: d32 mm to d63 mm (DN25 to DN50)

Materials and standards

Manufactured according to international industrial piping standards, the fitting combines high-density polyethylene PE100 and acid-resistant austenitic stainless steel 1.4404. All materials ensure total resistance against corrosion and incrustation when exposed to chilled water and glycol-based secondary refrigerants.

The threaded male interface complies with ISO 7 (R) pipe thread standards, facilitating direct and robust engagement with threaded valves, pumps, plate heat exchangers, and cooling plant equipment. The factory-integrated EPDM O-ring maintains permanent hydrostatic sealing against vibration, pressure surges, and cyclic thermal expansion, complying with EN ISO 15494 industrial piping system standards.

Installation and jointing

The PE100 SDR11 metric spigot integrates directly into COOL-FIT 2.0 and COOL-FIT 4.0 systems using standard electrofusion couplers. Installers can complete the plastic joint using standard electrofusion welding equipment without risking heat transfer to internal seals or adjoining pre-insulated jackets.

The stainless steel male thread R section enables straightforward mechanical connection to metallic valves, strainers, and chillers using appropriate thread sealants. Once welded and threaded into place, the joint area can be post-insulated with matching COOL-FIT insulation half-shells and heat-shrink components, maintaining continuous vapor barrier protection and preventing condensation throughout the cooling installation.

  Datasheet (PDF)

Georg Fischer COOL-FIT 2.0/4.0 PE to stainless steel adaptor fittings provide a factory-engineered transition between pre-insulated polyethylene cooling networks and threaded metallic equipment. Designed for secondary refrigeration, industrial HVAC, and process cooling loops, this transition fitting combines a PE100 SDR11 spigot with a grade 1.4404 (316L) stainless steel male thread R, rated for PN16 working pressure.

Technical specifications

This adaptor fitting delivers a leak-tight connection between thermoplastic distribution lines and metallic system components across demanding commercial and industrial cooling duties. The pre-assembled transition eliminates the need for mechanical compression couplings while maintaining full fluid containment under operating pressures up to 16 bar.

  • Nominal pressure: 16 bar (SDR11)
  • Operating temperature: 0 degrees Celsius to 60 degrees Celsius
  • Polymer material: Polyethylene PE100 spigot end
  • Metallic section: Stainless steel 1.4404 (AISI 316L) with external R thread
  • Internal sealing: High-integrity elastomeric EPDM O-ring
  • Size range: d32 mm to d63 mm (DN25 to DN50)

Materials and standards

Manufactured according to international industrial piping standards, the fitting combines high-density polyethylene PE100 and acid-resistant austenitic stainless steel 1.4404. All materials ensure total resistance against corrosion and incrustation when exposed to chilled water and glycol-based secondary refrigerants.

The threaded male interface complies with ISO 7 (R) pipe thread standards, facilitating direct and robust engagement with threaded valves, pumps, plate heat exchangers, and cooling plant equipment. The factory-integrated EPDM O-ring maintains permanent hydrostatic sealing against vibration, pressure surges, and cyclic thermal expansion, complying with EN ISO 15494 industrial piping system standards.

Installation and jointing

The PE100 SDR11 metric spigot integrates directly into COOL-FIT 2.0 and COOL-FIT 4.0 systems using standard electrofusion couplers. Installers can complete the plastic joint using standard electrofusion welding equipment without risking heat transfer to internal seals or adjoining pre-insulated jackets.

The stainless steel male thread R section enables straightforward mechanical connection to metallic valves, strainers, and chillers using appropriate thread sealants. Once welded and threaded into place, the joint area can be post-insulated with matching COOL-FIT insulation half-shells and heat-shrink components, maintaining continuous vapor barrier protection and preventing condensation throughout the cooling installation.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 32 mm
Thread 1/2"
738940508
Material: PE100 / SS
PN: 16 Bar
SDR: 11
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
Thread 3/4"
738940518
Material: PE100 / SS
PN: 16 Bar
SDR: 11
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
Thread 1"
738940528
Material: PE100 / SS
PN: 16 Bar
SDR: 11
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
Thread 1 1/4"
738940509
Material: PE100 / SS
PN: 16 Bar
SDR: 11
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
Thread 1 1/2"
738940510
Material: PE100 / SS
PN: 16 Bar
SDR: 11
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
Thread 2"
738940511
Material: PE100 / SS
PN: 16 Bar
SDR: 11
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 738940508
D: 32 mm
Thread: 1/2"
Ships in 24 hours
On Request / pcs
SKU: 738940518
D: 32 mm
Thread: 3/4"
Ships in 24 hours
On Request / pcs
SKU: 738940528
D: 32 mm
Thread: 1"
Ships in 24 hours
On Request / pcs
SKU: 738940509
D: 40 mm
Thread: 1 1/4"
Ships in 24 hours
On Request / pcs
SKU: 738940510
D: 50 mm
Thread: 1 1/2"
Ships in 24 hours
On Request / pcs
SKU: 738940511
D: 63 mm
Thread: 2"
Ships in 24 hours
On Request / pcs
