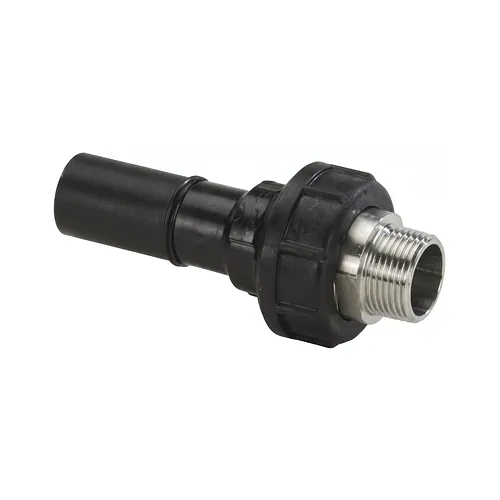

COOL-FIT 2.0/4.0 Adaptor union PE100/SS R

COOL-FIT 2.0/4.0 Adaptor union PE100/SS R

Material: PE100 / SS PN: 16 Bar

  Datasheet (PDF)

The Georg Fischer COOL-FIT 2.0/4.0 PE100 and stainless steel adaptor union provides a demountable, tension-free transition between pre-insulated polyethylene cooling circuits and threaded metallic equipment or components. Engineered for industrial refrigeration systems, process cooling, and chilled-water HVAC installations, this union ensures reliable hydraulic isolation, full moisture-proof sealing, and rapid dismounting for component maintenance and line servicing.

Technical specifications

This adaptor union couples an SDR11 PE100 metric spigot end with a stainless steel taper male thread, supporting operating pressures up to 16 bar. The assembly delivers dependable sealing across medium operating temperatures from 0 degrees Celsius to +60 degrees Celsius without thermal condensation risks.

  • Nominal pressure rating: PN16 working pressure at SDR11 wall thickness.
  • Operating temperature range: Continuous operation from 0 degrees Celsius to +60 degrees Celsius.
  • PE end connection: Metric spigot plain end designed for electrofusion jointing with COOL-FIT fittings.
  • Threaded connection: External taper pipe thread conforming to ISO 7 (R thread).
  • System compatibility: Fully compatible with COOL-FIT 2.0 and COOL-FIT 4.0 pre-insulated piping architectures.
  • Sealing interface: High-performance elastomeric EPDM O-ring gasket for moisture-tight jointing.

Materials and standards

Constructed with industrial-grade materials, the fitting pairs PE100 polyethylene with AISI 316L (1.4404) austenitic stainless steel to eliminate condensation-induced galvanic corrosion. A robust PEGF25 glass-fiber reinforced polyethylene union nut maintains joint compression under operational stresses.

Manufactured in compliance with EN ISO 15494 standards for industrial plastic piping and ISO 7 for pressure-tight pipe threads, the assembly guarantees mechanical endurance and chemical compatibility in water-glycol secondary refrigeration circuits.

Applications

Engineered specifically for indirect cooling loops, the adaptor union allows direct, detachable connections between pre-insulated plastic piping networks and metallic mechanical equipment. It provides service points at chillers, heat exchangers, manifolds, pumps, and threaded metallic valves.

The union serves mission-critical chilled-water loops in data center cooling facilities, commercial HVAC installations, food and beverage processing plants, and marine refrigeration systems requiring non-corrosive, vapor-tight transitions.

  Datasheet (PDF)

The Georg Fischer COOL-FIT 2.0/4.0 PE100 and stainless steel adaptor union provides a demountable, tension-free transition between pre-insulated polyethylene cooling circuits and threaded metallic equipment or components. Engineered for industrial refrigeration systems, process cooling, and chilled-water HVAC installations, this union ensures reliable hydraulic isolation, full moisture-proof sealing, and rapid dismounting for component maintenance and line servicing.

Technical specifications

This adaptor union couples an SDR11 PE100 metric spigot end with a stainless steel taper male thread, supporting operating pressures up to 16 bar. The assembly delivers dependable sealing across medium operating temperatures from 0 degrees Celsius to +60 degrees Celsius without thermal condensation risks.

  • Nominal pressure rating: PN16 working pressure at SDR11 wall thickness.
  • Operating temperature range: Continuous operation from 0 degrees Celsius to +60 degrees Celsius.
  • PE end connection: Metric spigot plain end designed for electrofusion jointing with COOL-FIT fittings.
  • Threaded connection: External taper pipe thread conforming to ISO 7 (R thread).
  • System compatibility: Fully compatible with COOL-FIT 2.0 and COOL-FIT 4.0 pre-insulated piping architectures.
  • Sealing interface: High-performance elastomeric EPDM O-ring gasket for moisture-tight jointing.

Materials and standards

Constructed with industrial-grade materials, the fitting pairs PE100 polyethylene with AISI 316L (1.4404) austenitic stainless steel to eliminate condensation-induced galvanic corrosion. A robust PEGF25 glass-fiber reinforced polyethylene union nut maintains joint compression under operational stresses.

Manufactured in compliance with EN ISO 15494 standards for industrial plastic piping and ISO 7 for pressure-tight pipe threads, the assembly guarantees mechanical endurance and chemical compatibility in water-glycol secondary refrigeration circuits.

Applications

Engineered specifically for indirect cooling loops, the adaptor union allows direct, detachable connections between pre-insulated plastic piping networks and metallic mechanical equipment. It provides service points at chillers, heat exchangers, manifolds, pumps, and threaded metallic valves.

The union serves mission-critical chilled-water loops in data center cooling facilities, commercial HVAC installations, food and beverage processing plants, and marine refrigeration systems requiring non-corrosive, vapor-tight transitions.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 32 mm
Thread 1"
738540708
Material: PE100 / SS
PN: 16 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
Thread 1 1/4"
738540709
Material: PE100 / SS
PN: 16 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
Thread 1 1/4"
738540710
Material: PE100 / SS
PN: 16 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
Thread 2"
738540711
Material: PE100 / SS
PN: 16 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 738540708
D: 32 mm
Thread: 1"
Ships in 24 hours
On Request / pcs
SKU: 738540709
D: 40 mm
Thread: 1 1/4"
Ships in 24 hours
On Request / pcs
SKU: 738540710
D: 50 mm
Thread: 1 1/4"
Ships in 24 hours
On Request / pcs
SKU: 738540711
D: 63 mm
Thread: 2"
Ships in 24 hours
On Request / pcs
