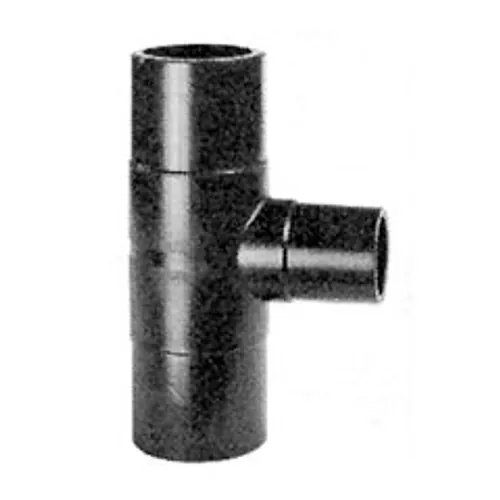

Tee 90 degrees reduced PE100 SDR17 PN10
Datasheet (PDF) | Product Range | Instructional Video
The Georg Fischer ELGEF Plus 90-degree reduced tee in PE100 SDR17 is an injection-moulded polyethylene spigot fitting engineered for high-integrity branch derivations in municipal water systems, industrial utility lines, and natural gas distribution networks. Rated for 10 bar water and 5 bar natural gas service, this fitting provides long spigot ends suited for both butt fusion and electrofusion joining across pipeline networks.
Technical specifications
This reduced branch tee is manufactured to tight dimensional tolerances to ensure uninterrupted hydraulic flow and full pressure containment across distribution networks. The extended tubular spigot design guarantees sufficient clamping clearance and insertion depth for standard welding equipment.
- Operating pressure: 10 bar water (PN10) / 5 bar natural gas
- Dimensional standard: SDR 17 dimensional ratio (EN 12201-3, EN 1555-3)
- Main run diameter envelope: d90 mm up to d315 mm with calibrated reduced outlets
- Nominal wall thicknesses: 5.4 mm (d90) up to 18.7 mm (d315)
- Thermal expansion coefficient: 0.15–0.20 mm/m·K
- Mechanical properties: 25 N/mm² yield stress and 83 kJ/m² Charpy impact strength at 23°C
Materials and standards
Moulded entirely from virgin pre-compounded PE100 high-density polyethylene resin, the fitting delivers superior resistance to slow crack growth, rapid crack propagation, and aggressive industrial environments. Its homogeneous polymer matrix prevents inner wall encrustation while ensuring smooth, low-friction hydraulic transmission throughout an extended operational service life.
Manufacturing quality and drinking water hygiene are validated in full conformity with European standards EN 12201-3 for water distribution and EN 1555-3 for gas networks. Each individual fitting integrates Georg Fischer Track & Trace production codes for site traceability, supported by international hygiene and performance certifications from DVGW, KIWA, SVGW, and ACS.
Installation and jointing
The elongated spigot outlets allow pipe installers to execute secure pipeline connections via either conventional butt fusion or electrofusion couplers. The extended straight lengths facilitate error-free positioning of pipe alignment clamps, scraping tools, and peeling devices required for proper pipe preparation.
Installers must ensure proper surface scraping to remove the oxidised polyethylene skin and clean joint zones with approved wipes prior to fusion cycles. During butt fusion, qualified operators must align joint faces and control heating and pressure stages in accordance with standard DVS 2207 procedures to secure permanent, leak-tight transitions.
Datasheet (PDF) | Product Range | Instructional Video
The Georg Fischer ELGEF Plus 90-degree reduced tee in PE100 SDR17 is an injection-moulded polyethylene spigot fitting engineered for high-integrity branch derivations in municipal water systems, industrial utility lines, and natural gas distribution networks. Rated for 10 bar water and 5 bar natural gas service, this fitting provides long spigot ends suited for both butt fusion and electrofusion joining across pipeline networks.
Technical specifications
This reduced branch tee is manufactured to tight dimensional tolerances to ensure uninterrupted hydraulic flow and full pressure containment across distribution networks. The extended tubular spigot design guarantees sufficient clamping clearance and insertion depth for standard welding equipment.
- Operating pressure: 10 bar water (PN10) / 5 bar natural gas
- Dimensional standard: SDR 17 dimensional ratio (EN 12201-3, EN 1555-3)
- Main run diameter envelope: d90 mm up to d315 mm with calibrated reduced outlets
- Nominal wall thicknesses: 5.4 mm (d90) up to 18.7 mm (d315)
- Thermal expansion coefficient: 0.15–0.20 mm/m·K
- Mechanical properties: 25 N/mm² yield stress and 83 kJ/m² Charpy impact strength at 23°C
Materials and standards
Moulded entirely from virgin pre-compounded PE100 high-density polyethylene resin, the fitting delivers superior resistance to slow crack growth, rapid crack propagation, and aggressive industrial environments. Its homogeneous polymer matrix prevents inner wall encrustation while ensuring smooth, low-friction hydraulic transmission throughout an extended operational service life.
Manufacturing quality and drinking water hygiene are validated in full conformity with European standards EN 12201-3 for water distribution and EN 1555-3 for gas networks. Each individual fitting integrates Georg Fischer Track & Trace production codes for site traceability, supported by international hygiene and performance certifications from DVGW, KIWA, SVGW, and ACS.
Installation and jointing
The elongated spigot outlets allow pipe installers to execute secure pipeline connections via either conventional butt fusion or electrofusion couplers. The extended straight lengths facilitate error-free positioning of pipe alignment clamps, scraping tools, and peeling devices required for proper pipe preparation.
Installers must ensure proper surface scraping to remove the oxidised polyethylene skin and clean joint zones with approved wipes prior to fusion cycles. During butt fusion, qualified operators must align joint faces and control heating and pressure stages in accordance with standard DVS 2207 procedures to secure permanent, leak-tight transitions.
| Size | SKU | Property | U.M. |
Price
incl. 21% VAT
VAT is calculated at checkout. It depends on who is buying (private person or company) and where the order is shipped, so the final rate may differ from the one shown here.
|
Availability | Add To Cart |
|---|---|---|---|---|---|---|
|
D
90 mm
D
63 mm
|
753200829 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €30.20 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
90 mm
D
50 mm
|
753201827 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €31.30 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
90 mm
D
75 mm
|
753201855 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €34.24 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
110 mm
D
63 mm
|
753200828 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €37.50 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
110 mm
D
75 mm
|
753200131 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €53.26 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
110 mm
D
90 mm
|
753200832 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €47.30 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
125 mm
D
90 mm
|
753200132 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €69.70 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
125 mm
D
110 mm
|
753200133 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €61.38 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
160 mm
D
63 mm
|
753200834 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €121.57 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
160 mm
D
75 mm
|
753200880 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €126.22 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
160 mm
D
90 mm
|
753200836 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €106.46 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
160 mm
D
110 mm
|
753200837 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €107.48 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
180 mm
D
90 mm
|
753200881 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €194.66 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
180 mm
D
110 mm
|
753200150 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €215.04 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
180 mm
D
160 mm
|
753200882 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €190.33 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
200 mm
D
63 mm
|
753201873 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €266.20 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
200 mm
D
90 mm
|
753201874 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €243.57 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
200 mm
D
110 mm
|
753201875 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €244.12 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
200 mm
D
160 mm
|
753201876 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €245.30 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
225 mm
D
75 mm
|
753200839 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €313.41 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
225 mm
D
90 mm
|
753200840 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €290.79 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
225 mm
D
110 mm
|
753200841 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €278.97 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
225 mm
D
160 mm
|
753200842 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €316.19 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
225 mm
D
180 mm
|
753200843 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €316.85 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
250 mm
D
110 mm
|
753201878 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €390.27 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
250 mm
D
160 mm
|
753201879 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €397.94 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
315 mm
D
110 mm
|
753200851 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €489.06 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
315 mm
D
160 mm
|
753200852 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €489.06 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
315 mm
D
200 mm
|
753200152 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €977.10 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
315 mm
D
225 mm
|
753200153 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €534.86 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
315 mm
D
250 mm
|
753200854 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €534.86 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
Ø (mm)
140 x 90
|
0753200822 |
Material: Polyethylene
PN: 10 Bar
SDR: 17
|
pcs | €73.10 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
