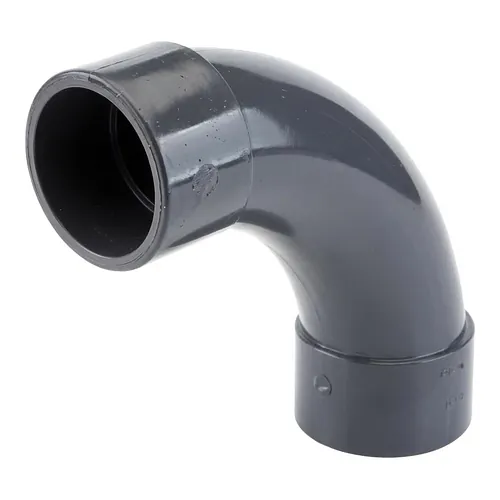

Dark grey bend 90 degrees PVC-U pipe fitting for pressure installations

Bend 90 degrees PVC-U PN16 d20-110 mm

Material: PVC-U PN: 16 Bar

  Datasheet (PDF) |   Product Range | Instructional Video

Manufactured from unplasticised polyvinyl chloride, this 90-degree metric PVC-U bend is engineered for directional fluid routing in industrial pressure piping systems. Its long-radius profile reduces hydraulic friction and pressure drop compared to standard compact elbows, ensuring smooth flow characteristics across continuous process lines. Rated PN16 and covering outside diameters from d20 mm to d110 mm, this fitting is supplied by BigWeld as an authorised Georg Fischer distributor for demanding water treatment, cooling, and chemical processing networks.

Technical specifications

This 90-degree long-radius bend provides optimal hydrodynamic performance across metric industrial pipe circuits. Its engineered geometry minimises head loss while maintaining complete structural integrity under sustained operational pressures.

  • Fitting geometry: 90-degree sweeping long-radius bend with metric solvent cement sockets.
  • Size range: Metric outside diameters from d20 mm up to d110 mm.
  • Nominal pressure rating: PN16 (16 bar maximum allowable operating pressure at 20 degrees Celsius).
  • Operating temperature: 0 to 60 degrees Celsius, with standard thermal de-rating factors applied above 20 degrees Celsius.
  • Flow efficiency: Extended radius configuration delivers significantly lower hydraulic resistance than standard 90-degree elbows.

Materials and standards

Fabricated from premium dark grey RAL 7011 unplasticised polyvinyl chloride, this fitting complies strictly with international industrial standards. The robust compound ensures comprehensive chemical resistance against inorganic acids, alkalis, and salt solutions without risk of electrochemical corrosion or internal encrustation.

Manufactured and tested in accordance with EN ISO 1452-3, the homogeneous PVC-U material prevents scaling, preserves water quality, and guarantees dimensional stability throughout its design life. It is entirely inert to industrial process fluids within defined chemical thresholds, making it suitable for water treatment plants, chemical distribution systems, and industrial cooling loops.

Installation and jointing

Jointing is executed via solvent cement socket welding to produce a homogenous, leak-free connection. Both sockets are precision-moulded to metric pipe tolerances for reliable interference fits.

Installers should chamfer pipe spigots, clean bonding surfaces thoroughly with approved cleaners such as Tangit KS, and apply solvent cement like Tangit PVC-U evenly before assembly. Proper curing ensures a monolithic bond capable of handling full PN16 system pressure. As an authorised Georg Fischer distributor, BigWeld provides complete piping systems, compatible adhesives, and specialist technical support throughout Europe.

  Datasheet (PDF) |   Product Range | Instructional Video

Manufactured from unplasticised polyvinyl chloride, this 90-degree metric PVC-U bend is engineered for directional fluid routing in industrial pressure piping systems. Its long-radius profile reduces hydraulic friction and pressure drop compared to standard compact elbows, ensuring smooth flow characteristics across continuous process lines. Rated PN16 and covering outside diameters from d20 mm to d110 mm, this fitting is supplied by BigWeld as an authorised Georg Fischer distributor for demanding water treatment, cooling, and chemical processing networks.

Technical specifications

This 90-degree long-radius bend provides optimal hydrodynamic performance across metric industrial pipe circuits. Its engineered geometry minimises head loss while maintaining complete structural integrity under sustained operational pressures.

  • Fitting geometry: 90-degree sweeping long-radius bend with metric solvent cement sockets.
  • Size range: Metric outside diameters from d20 mm up to d110 mm.
  • Nominal pressure rating: PN16 (16 bar maximum allowable operating pressure at 20 degrees Celsius).
  • Operating temperature: 0 to 60 degrees Celsius, with standard thermal de-rating factors applied above 20 degrees Celsius.
  • Flow efficiency: Extended radius configuration delivers significantly lower hydraulic resistance than standard 90-degree elbows.

Materials and standards

Fabricated from premium dark grey RAL 7011 unplasticised polyvinyl chloride, this fitting complies strictly with international industrial standards. The robust compound ensures comprehensive chemical resistance against inorganic acids, alkalis, and salt solutions without risk of electrochemical corrosion or internal encrustation.

Manufactured and tested in accordance with EN ISO 1452-3, the homogeneous PVC-U material prevents scaling, preserves water quality, and guarantees dimensional stability throughout its design life. It is entirely inert to industrial process fluids within defined chemical thresholds, making it suitable for water treatment plants, chemical distribution systems, and industrial cooling loops.

Installation and jointing

Jointing is executed via solvent cement socket welding to produce a homogenous, leak-free connection. Both sockets are precision-moulded to metric pipe tolerances for reliable interference fits.

Installers should chamfer pipe spigots, clean bonding surfaces thoroughly with approved cleaners such as Tangit KS, and apply solvent cement like Tangit PVC-U evenly before assembly. Proper curing ensures a monolithic bond capable of handling full PN16 system pressure. As an authorised Georg Fischer distributor, BigWeld provides complete piping systems, compatible adhesives, and specialist technical support throughout Europe.
