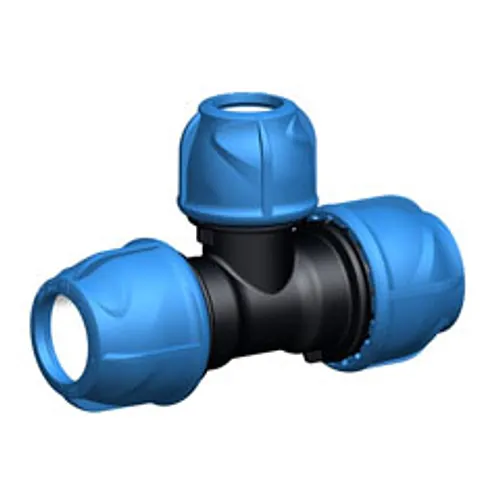

90 degrees reducing tee iJoint PP PN16 fitting with blue compression nuts

90 Degrees Reducing Tee iJoint PP PN16

Material: Polipropilena PN: 16 Bar

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer iJoint 90 degrees reducing tee is a mechanical polypropylene compression fitting designed for branching and dimensional reduction in metric polyethylene (PE 80, PE 100) and PEX piping systems. Rated for nominal operating pressures up to PN16, this push-fit fitting delivers a dependable, high-integrity mechanical connection for utility water networks, municipal distribution lines, and industrial fluid circuits without requiring pipe chamfering or fitting disassembly.

Technical specifications

The iJoint 90 degrees reducing tee is engineered to maintain full operational integrity under continuous hydrostatic pressure and dynamic hydraulic surges. It provides a pressure-tight, pull-out resistant branch connection across challenging environmental conditions.

  • Nominal pressure rating: PN16 (16 bar maximum operating pressure at 20 °C).
  • Operating temperature range: -10 °C to +45 °C.
  • Pipe compatibility: PE 80, PE 100, PEX, and PEX-a pipes per ISO 4427 and DIN EN 12201.
  • Joint mechanism: Push-fit mechanical compression with biting grip ring and EPDM lip seal.
  • Size coverage: Branch reductions from d20 mm to d110 mm metric pipe diameters.

Materials and standards

Constructed entirely from premium-grade technical polymers, the iJoint reducing tee guarantees total immunity to corrosion, rust, and scale incrustation. The assembly ensures complete compliance with stringent international hygiene and performance standards.

The body and threaded nuts are molded from UV-stabilized polypropylene impact copolymer (PP-B), formulated to resist long-term aging according to ISO 9080 and withstand intense solar radiation. Tensile restraint is achieved through an internal polyacetal (POM) grip ring that securely anchors into the pipe wall under axial tension. Sealing is executed by a factory-lubricated, food-safe EPDM lip gasket that actively seals against ovalized, scratched, or undersized pipes. Certified for contact with drinking water, the fitting meets DVGW (GW 335-B3, W270, KTW), ACS, KIWA, and SVGW requirements, tested in conformity with ISO 17885 and DIN 8076-3.

Installation and jointing

The mechanical push-fit design allows rapid, forgiving jointing directly on-site without pre-dismantling the fitting. Installers achieve a permanent, pressure-tight seal without special tools or complex fusion equipment.

To assemble, square-cut the PE or PEX pipe and push it smoothly past the relaxed EPDM lip gasket until it reaches the internal pipe stop. Tightening the blue polypropylene nut advances the internal thrust ring, driving the POM grip ring into firm contact with the pipe exterior and compressing the lip gasket for instantaneous sealing. Because the assembly is completely mechanical, the fitting can also be disassembled non-destructively for network reconfigurations, maintenance, or temporary bypass piping installations.

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer iJoint 90 degrees reducing tee is a mechanical polypropylene compression fitting designed for branching and dimensional reduction in metric polyethylene (PE 80, PE 100) and PEX piping systems. Rated for nominal operating pressures up to PN16, this push-fit fitting delivers a dependable, high-integrity mechanical connection for utility water networks, municipal distribution lines, and industrial fluid circuits without requiring pipe chamfering or fitting disassembly.

Technical specifications

The iJoint 90 degrees reducing tee is engineered to maintain full operational integrity under continuous hydrostatic pressure and dynamic hydraulic surges. It provides a pressure-tight, pull-out resistant branch connection across challenging environmental conditions.

  • Nominal pressure rating: PN16 (16 bar maximum operating pressure at 20 °C).
  • Operating temperature range: -10 °C to +45 °C.
  • Pipe compatibility: PE 80, PE 100, PEX, and PEX-a pipes per ISO 4427 and DIN EN 12201.
  • Joint mechanism: Push-fit mechanical compression with biting grip ring and EPDM lip seal.
  • Size coverage: Branch reductions from d20 mm to d110 mm metric pipe diameters.

Materials and standards

Constructed entirely from premium-grade technical polymers, the iJoint reducing tee guarantees total immunity to corrosion, rust, and scale incrustation. The assembly ensures complete compliance with stringent international hygiene and performance standards.

The body and threaded nuts are molded from UV-stabilized polypropylene impact copolymer (PP-B), formulated to resist long-term aging according to ISO 9080 and withstand intense solar radiation. Tensile restraint is achieved through an internal polyacetal (POM) grip ring that securely anchors into the pipe wall under axial tension. Sealing is executed by a factory-lubricated, food-safe EPDM lip gasket that actively seals against ovalized, scratched, or undersized pipes. Certified for contact with drinking water, the fitting meets DVGW (GW 335-B3, W270, KTW), ACS, KIWA, and SVGW requirements, tested in conformity with ISO 17885 and DIN 8076-3.

Installation and jointing

The mechanical push-fit design allows rapid, forgiving jointing directly on-site without pre-dismantling the fitting. Installers achieve a permanent, pressure-tight seal without special tools or complex fusion equipment.

To assemble, square-cut the PE or PEX pipe and push it smoothly past the relaxed EPDM lip gasket until it reaches the internal pipe stop. Tightening the blue polypropylene nut advances the internal thrust ring, driving the POM grip ring into firm contact with the pipe exterior and compressing the lip gasket for instantaneous sealing. Because the assembly is completely mechanical, the fitting can also be disassembled non-destructively for network reconfigurations, maintenance, or temporary bypass piping installations.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
Ø (mm) 20 x 25
158400200
Material: Polipropilena
PN: 16 Bar
pcs €5.76
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Ø (mm) 25 x 20
158400232
Material: Polipropilena
PN: 16 Bar
pcs €5.28
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Ø (mm) 25 x 32
158400201
Material: Polipropilena
PN: 16 Bar
pcs €6.06
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Ø (mm) 32 x25
158400233
Material: Polipropilena
PN: 16 Bar
pcs €6.70
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Ø (mm) 40 x 32
158400234
Material: Polipropilena
PN: 16 Bar
pcs €11.89
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Ø (mm) 50 x 32
158400235
Material: Polipropilena
PN: 16 Bar
pcs €16.79
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Ø (mm) 50 x 40
158400236
Material: Polipropilena
PN: 16 Bar
pcs €16.79
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Ø (mm) 63 x 32
158400237
Material: Polipropilena
PN: 16 Bar
pcs €22.84
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Ø (mm) 63 x 50
158400238
Material: Polipropilena
PN: 16 Bar
pcs €22.84
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Ø (mm) 75 x 63
158400239
Material: Polipropilena
PN: 16 Bar
pcs €44.47
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Ø (mm) 90 x 75
158400240
Material: Polipropilena
PN: 16 Bar
pcs €74.06
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Ø (mm) 110 x 63
158400241
Material: Polipropilena
PN: 16 Bar
pcs €113.51
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Ø (mm) 110 x 90
158400242
Material: Polipropilena
PN: 16 Bar
pcs €115.39
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
