Pneumatic Diaphragm Valve DIASTAR Ten FC PVDF d20-d63

Pneumatic Diaphragm Valve DIASTAR Ten FC PVDF d20-d63

Material: PVDF PN: 10 Bar

  Datasheet (PDF)

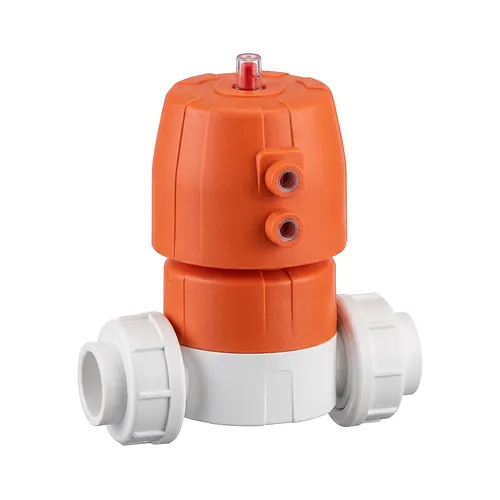

The Georg Fischer SYGEF Standard DIASTAR Ten FC pneumatic diaphragm valve provides precise automated flow throttling and bubble-tight shut-off across metric pipeline dimensions d20 to d63 mm (DN15 to DN50). Engineered with an unpigmented PVDF body and a fail-safe-to-close pneumatic actuator, this true union valve is designed for process chemical distribution, deionized water treatment, and high-purity industrial piping systems operating at pressures up to 10 bar.

Technical specifications

The valve assembly integrates an optimized weir-style body geometry with a single-acting pneumatic actuator that automatically returns to the fully closed position upon air pressure drop. A central union nut replaces traditional multi-bolt bonnets to provide uniform peripheral clamping force across the sealing diaphragm.

  • Actuator operating mode: pneumatic fail-safe to close (FC / normally closed)
  • Nominal working pressure rating: 10 bar at 20 degrees C
  • Operating temperature envelope: -20 degrees C to 140 degrees C
  • Control air connection: configurable in 90 degrees rotational increments
  • Diaphragm configuration options: dual-layer PTFE/EPDM or PTFE/FKM
  • Integrated mounting features: threaded stainless steel base inserts for structural support

By doubling the kv flow coefficient relative to earlier diaphragm valve designs, the internal body geometry minimizes localized turbulence, pressure loss, and fluid shear stresses across aggressive media loops.

Materials and standards

All wetted body components are manufactured from virgin, unpigmented polyvinylidene fluoride compliant with international industrial standards. The non-toxic fluoropolymer construction ensures complete resistance against concentrated inorganic acids, halogens, and high-purity process fluids.

Manufactured according to ISO 10931 dimensions and quality standards, the valve meets the physiological safety criteria established under FDA 21 CFR 177.2510 for PVDF fluid contact and FDA 21 CFR 177.1550 for PTFE diaphragms. The inert polymer matrix conforms to USP 25 Class VI biocompatibility requirements, preventing trace ionic leaching and total organic carbon (TOC) contamination in critical utility distribution loops.

Installation and jointing

The valve connects to the pipeline via true union ends engineered specifically for heated-tool socket fusion jointing per DVS 2207 Part 15. The union nut design enables complete radial removal of the central valve body without applying axial stress or mechanical spreading to adjacent pipe runs.

During mechanical assembly, the threaded bottom inserts secure the valve housing directly to strut channels or pipe supports, isolating the PVDF piping from pneumatic cycling vibrations and actuator torque. Pneumatic control ports accept standard tubing fittings and can be rotated in 90 degrees intervals to simplify routing within crowded pipe racks and automated control cabinets.

  Datasheet (PDF)

The Georg Fischer SYGEF Standard DIASTAR Ten FC pneumatic diaphragm valve provides precise automated flow throttling and bubble-tight shut-off across metric pipeline dimensions d20 to d63 mm (DN15 to DN50). Engineered with an unpigmented PVDF body and a fail-safe-to-close pneumatic actuator, this true union valve is designed for process chemical distribution, deionized water treatment, and high-purity industrial piping systems operating at pressures up to 10 bar.

Technical specifications

The valve assembly integrates an optimized weir-style body geometry with a single-acting pneumatic actuator that automatically returns to the fully closed position upon air pressure drop. A central union nut replaces traditional multi-bolt bonnets to provide uniform peripheral clamping force across the sealing diaphragm.

  • Actuator operating mode: pneumatic fail-safe to close (FC / normally closed)
  • Nominal working pressure rating: 10 bar at 20 degrees C
  • Operating temperature envelope: -20 degrees C to 140 degrees C
  • Control air connection: configurable in 90 degrees rotational increments
  • Diaphragm configuration options: dual-layer PTFE/EPDM or PTFE/FKM
  • Integrated mounting features: threaded stainless steel base inserts for structural support

By doubling the kv flow coefficient relative to earlier diaphragm valve designs, the internal body geometry minimizes localized turbulence, pressure loss, and fluid shear stresses across aggressive media loops.

Materials and standards

All wetted body components are manufactured from virgin, unpigmented polyvinylidene fluoride compliant with international industrial standards. The non-toxic fluoropolymer construction ensures complete resistance against concentrated inorganic acids, halogens, and high-purity process fluids.

Manufactured according to ISO 10931 dimensions and quality standards, the valve meets the physiological safety criteria established under FDA 21 CFR 177.2510 for PVDF fluid contact and FDA 21 CFR 177.1550 for PTFE diaphragms. The inert polymer matrix conforms to USP 25 Class VI biocompatibility requirements, preventing trace ionic leaching and total organic carbon (TOC) contamination in critical utility distribution loops.

Installation and jointing

The valve connects to the pipeline via true union ends engineered specifically for heated-tool socket fusion jointing per DVS 2207 Part 15. The union nut design enables complete radial removal of the central valve body without applying axial stress or mechanical spreading to adjacent pipe runs.

During mechanical assembly, the threaded bottom inserts secure the valve housing directly to strut channels or pipe supports, isolating the PVDF piping from pneumatic cycling vibrations and actuator torque. Pneumatic control ports accept standard tubing fittings and can be rotated in 90 degrees intervals to simplify routing within crowded pipe racks and automated control cabinets.
