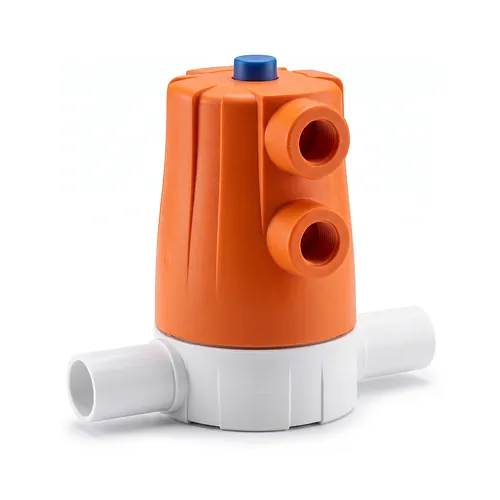

Diaphragm valve type 605 PVDF

  Datasheet (PDF)

The Georg Fischer SYGEF Standard diaphragm valve type 605 PVDF is an engineered pneumatically actuated solution designed for precise throttling, reliable isolation, and high-purity fluid handling in demanding industrial and chemical processing environments. Featuring an all-plastic, screwless exterior architecture, the compact valve body eliminates external metal fastener corrosion in aggressive atmospheric conditions while maintaining market-standard installation dimensions. Manufactured for pipe dimension d20 (DN15) with an SDR21 butt fusion spigot end connection featuring a wall thickness of 1.9 mm and an overall length of 124 mm, the unit integrates smoothly into thermoplastic piping assemblies using bead and crevice-free (BCF) or infrared (IR) fusion jointing. The pneumatic actuator utilizes an integrated threaded bonnet housing that enables straightforward servicing without specialized tools, providing exceptionally fast opening and closing cycle response times. Engineered to operate under a nominal working pressure of PN6 (6 bar) with an operating temperature window ranging from -20 degrees to +140 degrees Celsius, this valve delivers a flow capacity of 125 l/min at a 1 bar pressure differential with an efficient 6 mm diaphragm stroke lift. Configurable with chemically resilient FKM seals or inert PTFE/EPDM composite diaphragms, the pneumatic drive accommodates Fail Safe to Close (FC), Fail Safe to Open (FO), and Double Acting (DA) control configurations powered through a standard 1/4 inch pneumatic pilot port. The streamlined flow geometry provides linear flow characteristics and minimized flow resistance, ensuring reliable operation across chemical dosing, ultrapure water distribution, and pharmaceutical-grade industrial circuits.
