PP-H Socket Fusion Union d16-110 PN10 PROGEF Standard

PP-H Socket Fusion Union d16-110 PN10 PROGEF Standard

Material: PP-H PN: 10 Bar

  Datasheet (PDF)

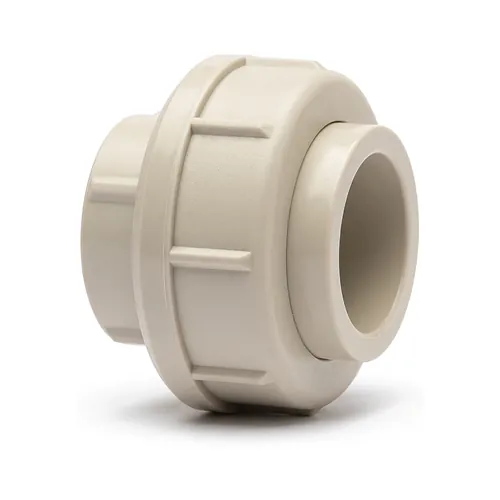

The Georg Fischer PROGEF Standard PP-H socket fusion union is a three-piece demountable fitting engineered for industrial thermoplastic piping installations. Designed for metric pipe networks from outside diameter d16 mm to d110 mm, this PN10 component provides rapid radial assembly and disconnection of valves, flowmeters, and equipment without moving adjacent pipes. Manufactured from high-grade beta-nucleated polypropylene homopolymer, it ensures long-term chemical and hydrostatic reliability across challenging industrial environments.

Technical specifications

PROGEF Standard socket fusion unions are engineered to maintain high structural integrity and hermetic tightness across metric industrial pipelines. Each assembly features precision-machined union ends and an integrated sealing profile optimized for demanding pressure duties.

  • Nominal pressure rating: PN10 (SDR 11) for water service at 20 degrees Celsius
  • Dimensional range: Metric socket fusion ends from outer diameter d16 mm up to d110 mm
  • Sealing elements: High-integrity elastomeric O-rings in EPDM or FKM compound options
  • Operational lifespan: Engineered for a minimum 25-year working life under rated conditions
  • Working temperature limits: Suitable for continuous industrial operation up to 80 degrees Celsius

Materials and standards

The union components are injection moulded from beta-nucleated isotactic polypropylene homopolymer (beta-PP-H) to deliver superior mechanical strength. This advanced polymer formulation offers significantly enhanced impact toughness and resistance to stress cracking compared to conventional polypropylene grades.

Manufactured in full conformity with EN ISO 15494, the fitting complies with rigorous international requirements for industrial plastic piping systems. Sealing rings are manufactured to meet EN 681 specifications, ensuring exceptional resistance to compression set and reliable chemical containment. The beta-PP-H material provides robust chemical resistance against inorganic salts, concentrated alkalis, mineral acids, and diverse industrial effluents, maintaining dimensional stability and pressure containment across elevated temperatures.

Installation and jointing

Jointing is performed via standard heated-tool socket fusion, creating homogeneous, leak-tight molecular bonds between the fitting sockets and SDR 11 PP-H pipes. The three-piece union design allows installers to disconnect pipeline segments radially without requiring axial displacement of fixed pipe runs.

The assembly incorporates a threaded union end, an insert union end featuring an engineered O-ring seating groove, and a robust union nut. Installers can easily service flowmeters, process valves, or inline instrumentation by simply loosening the nut. Socket fusion jointing can be completed efficiently using workshop welding benches or portable jobsite socket fusion tools, making PROGEF Standard unions ideal for chemical processing facilities, industrial water treatment plants, galvanic treatment lines, and demineralised water networks.

  Datasheet (PDF)

The Georg Fischer PROGEF Standard PP-H socket fusion union is a three-piece demountable fitting engineered for industrial thermoplastic piping installations. Designed for metric pipe networks from outside diameter d16 mm to d110 mm, this PN10 component provides rapid radial assembly and disconnection of valves, flowmeters, and equipment without moving adjacent pipes. Manufactured from high-grade beta-nucleated polypropylene homopolymer, it ensures long-term chemical and hydrostatic reliability across challenging industrial environments.

Technical specifications

PROGEF Standard socket fusion unions are engineered to maintain high structural integrity and hermetic tightness across metric industrial pipelines. Each assembly features precision-machined union ends and an integrated sealing profile optimized for demanding pressure duties.

  • Nominal pressure rating: PN10 (SDR 11) for water service at 20 degrees Celsius
  • Dimensional range: Metric socket fusion ends from outer diameter d16 mm up to d110 mm
  • Sealing elements: High-integrity elastomeric O-rings in EPDM or FKM compound options
  • Operational lifespan: Engineered for a minimum 25-year working life under rated conditions
  • Working temperature limits: Suitable for continuous industrial operation up to 80 degrees Celsius

Materials and standards

The union components are injection moulded from beta-nucleated isotactic polypropylene homopolymer (beta-PP-H) to deliver superior mechanical strength. This advanced polymer formulation offers significantly enhanced impact toughness and resistance to stress cracking compared to conventional polypropylene grades.

Manufactured in full conformity with EN ISO 15494, the fitting complies with rigorous international requirements for industrial plastic piping systems. Sealing rings are manufactured to meet EN 681 specifications, ensuring exceptional resistance to compression set and reliable chemical containment. The beta-PP-H material provides robust chemical resistance against inorganic salts, concentrated alkalis, mineral acids, and diverse industrial effluents, maintaining dimensional stability and pressure containment across elevated temperatures.

Installation and jointing

Jointing is performed via standard heated-tool socket fusion, creating homogeneous, leak-tight molecular bonds between the fitting sockets and SDR 11 PP-H pipes. The three-piece union design allows installers to disconnect pipeline segments radially without requiring axial displacement of fixed pipe runs.

The assembly incorporates a threaded union end, an insert union end featuring an engineered O-ring seating groove, and a robust union nut. Installers can easily service flowmeters, process valves, or inline instrumentation by simply loosening the nut. Socket fusion jointing can be completed efficiently using workshop welding benches or portable jobsite socket fusion tools, making PROGEF Standard unions ideal for chemical processing facilities, industrial water treatment plants, galvanic treatment lines, and demineralised water networks.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 16 mm
Gasket EPDM
727510155
Material: PP-H
PN: 10 Bar
pcs €22.68
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 16 mm
Gasket FKM
727520155
Material: PP-H
PN: 10 Bar
pcs €26.23
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 20 mm
Gasket EPDM
727510156
Material: PP-H
PN: 10 Bar
pcs €23.64
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 20 mm
Gasket FKM
727520156
Material: PP-H
PN: 10 Bar
pcs €27.81
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
Gasket EPDM
727510157
Material: PP-H
PN: 10 Bar
pcs €25.64
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
Gasket FKM
727520157
Material: PP-H
PN: 10 Bar
pcs €31.05
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
Gasket EPDM
727510158
Material: PP-H
PN: 10 Bar
pcs €30.93
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
Gasket FKM
727520158
Material: PP-H
PN: 10 Bar
pcs €36.65
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
Gasket EPDM
727510159
Material: PP-H
PN: 10 Bar
pcs €41.32
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
Gasket FKM
727520159
Material: PP-H
PN: 10 Bar
pcs €51.55
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
Gasket EPDM
727510160
Material: PP-H
PN: 10 Bar
pcs €58.09
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
Gasket FKM
727520160
Material: PP-H
PN: 10 Bar
pcs €68.93
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
Gasket EPDM
727510161
Material: PP-H
PN: 10 Bar
pcs €82.59
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
Gasket FKM
727520161
Material: PP-H
PN: 10 Bar
pcs €95.34
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 75 mm
Gasket EPDM
727510192
Material: PP-H
PN: 10 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 75 mm
Gasket FKM
727520192
Material: PP-H
PN: 10 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 90 mm
Gasket EPDM
727510193
Material: PP-H
PN: 10 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 90 mm
Gasket FKM
727520193
Material: PP-H
PN: 10 Bar
pcs €190.04
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
Gasket EPDM
727510194
Material: PP-H
PN: 10 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
Gasket FKM
727520194
Material: PP-H
PN: 10 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
