Pneumatic Ball Valve PROGEF PP-H 546 Pro FO d20-63 PN10

Pneumatic Ball Valve PROGEF PP-H 546 Pro FO d20-63 PN10

Material: PP-H PN: 10 Bar

  Datasheet (PDF)

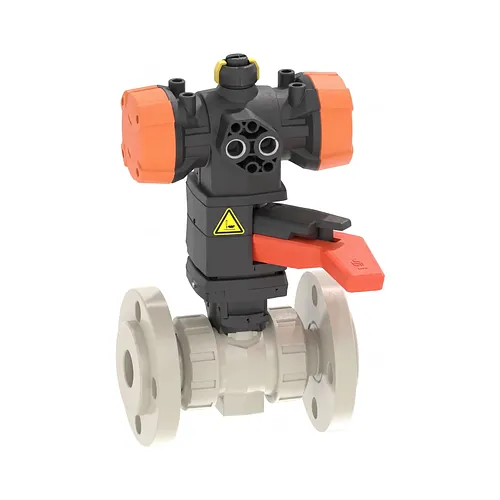

The Georg Fischer PROGEF Standard Type 546 Pro pneumatic ball valve is an automated flow-control and isolation unit engineered for industrial pipelines carrying aggressive chemicals, process water and effluent streams. Supplied across Europe by BigWeld, an authorised Georg Fischer distributor, this fail-safe-to-open (FO) assembly combines an isotactic beta polypropylene homopolymer (β-PP-H) body with fixed metric ISO flanges from d20 to d63 (DN15 to DN50) rated for PN10 operating pressure.

Technical specifications

The pneumatic actuator automatically drives the ball to the fully open position upon loss of pilot air pressure, ensuring fail-safe continuity in lines requiring constant discharge. The actuator housing incorporates standardized mounting interfaces and visual position feedback for seamless integration into industrial process automation loops.

  • Actuation mode: Pneumatic fail-safe-to-open (FO) with integrated manual override for commissioning
  • Nominal pressure: PN10 nominal working pressure across all diameters from d20 to d63
  • Accessory interface: Integrated NAMUR interface compliant with VDI/VDE 3845 for pilot solenoid valves and limit-switch boxes
  • Shut-off classification: Bidirectional bubble-tight sealing verified according to EN 12266 and ISO 9393-2 leak rate A
  • Safety stem design: Predetermined shear breaking point preventing external leakage to the atmosphere under mechanical overload
  • Connection design: Metric ISO fixed flanges for secure bolted installation into industrial piping systems

Materials and standards

High-purity beta polypropylene homopolymer and flame-retardant composite materials deliver broad chemical compatibility and mechanical durability. The valve assembly withstands aggressive acidic and alkaline process media while maintaining long-term dimensional stability.

The valve body is injection-moulded from stress-crack-resistant β-PP-H, formulated for a design life of up to 25 years in water service at 20 degrees Celsius. Sealing is handled by low-friction PTFE ball seats supported by elastomeric backing rings in EPDM or FKM, selected according to chemical exposure. Stainless steel threaded inserts secure all structural mounting points, while the glass-fibre reinforced polypropylene (PP-GF) actuator casing resists corrosive industrial atmospheres and routine washdowns.

Applications

This actuated valve is engineered for automated industrial flow control in chemical manufacturing, industrial water purification, chemical dosing systems and industrial waste neutralization plants. Its fail-safe-to-open configuration provides critical process protection in bypass lines, cooling loops, drain circuits and ventilation scrubbing systems where fluid stagnation could trigger dangerous pressure accumulation or equipment damage.

  Datasheet (PDF)

The Georg Fischer PROGEF Standard Type 546 Pro pneumatic ball valve is an automated flow-control and isolation unit engineered for industrial pipelines carrying aggressive chemicals, process water and effluent streams. Supplied across Europe by BigWeld, an authorised Georg Fischer distributor, this fail-safe-to-open (FO) assembly combines an isotactic beta polypropylene homopolymer (β-PP-H) body with fixed metric ISO flanges from d20 to d63 (DN15 to DN50) rated for PN10 operating pressure.

Technical specifications

The pneumatic actuator automatically drives the ball to the fully open position upon loss of pilot air pressure, ensuring fail-safe continuity in lines requiring constant discharge. The actuator housing incorporates standardized mounting interfaces and visual position feedback for seamless integration into industrial process automation loops.

  • Actuation mode: Pneumatic fail-safe-to-open (FO) with integrated manual override for commissioning
  • Nominal pressure: PN10 nominal working pressure across all diameters from d20 to d63
  • Accessory interface: Integrated NAMUR interface compliant with VDI/VDE 3845 for pilot solenoid valves and limit-switch boxes
  • Shut-off classification: Bidirectional bubble-tight sealing verified according to EN 12266 and ISO 9393-2 leak rate A
  • Safety stem design: Predetermined shear breaking point preventing external leakage to the atmosphere under mechanical overload
  • Connection design: Metric ISO fixed flanges for secure bolted installation into industrial piping systems

Materials and standards

High-purity beta polypropylene homopolymer and flame-retardant composite materials deliver broad chemical compatibility and mechanical durability. The valve assembly withstands aggressive acidic and alkaline process media while maintaining long-term dimensional stability.

The valve body is injection-moulded from stress-crack-resistant β-PP-H, formulated for a design life of up to 25 years in water service at 20 degrees Celsius. Sealing is handled by low-friction PTFE ball seats supported by elastomeric backing rings in EPDM or FKM, selected according to chemical exposure. Stainless steel threaded inserts secure all structural mounting points, while the glass-fibre reinforced polypropylene (PP-GF) actuator casing resists corrosive industrial atmospheres and routine washdowns.

Applications

This actuated valve is engineered for automated industrial flow control in chemical manufacturing, industrial water purification, chemical dosing systems and industrial waste neutralization plants. Its fail-safe-to-open configuration provides critical process protection in bypass lines, cooling loops, drain circuits and ventilation scrubbing systems where fluid stagnation could trigger dangerous pressure accumulation or equipment damage.
