PP-H 45 Degrees Elbow Butt Fusion PROGEF SDR11 PN10

PP-H 45 Degrees Elbow Butt Fusion PROGEF SDR11 PN10

Material: PP-H PN: 10 Bar

  Datasheet (PDF)

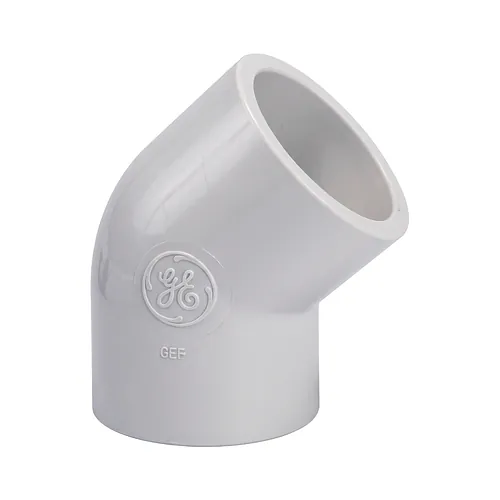

The Georg Fischer PROGEF Standard 45 degrees elbow is an industrial thermoplastic spigot fitting designed for smooth directional changes in chemical and utility pressure piping systems. Moulded from beta-nucleated polypropylene homopolymer (β-PP-H) across the metric range d20 mm to d315 mm, it delivers SDR11 pressure resistance rated at PN10 (10 bar). Supplied by BigWeld as an authorised Georg Fischer distributor, it serves plant engineers requiring robust chemical resistance and long-term hydrostatic integrity.

Materials and standards

The fitting is manufactured from premium beta-nucleated polypropylene homopolymer (β-PP-H) in accordance with the EN ISO 15494 industrial piping standard. This specific formulation refines the crystalline polymer structure to maximize mechanical rigidity, impact strength, and resistance to environmental stress cracking under pressure.

Designed for an operational design life of 25 years with water at 20 degrees Celsius, the PROGEF compound withstands demanding process conditions without internal scaling or electrochemical corrosion. The material offers comprehensive resistance against inorganic acids, aggressive alkalis, salts, and industrial effluents.

  • Material: Beta-nucleated polypropylene homopolymer (β-PP-H)
  • Standard: EN ISO 15494 for industrial thermoplastic piping
  • Pressure rating: SDR11 / PN10 (10 bar maximum allowable operating pressure)
  • Dimensional range: d20 mm to d315 mm spigot ends
  • Design life: 25 years with water at 20 degrees Celsius

Installation and jointing

Both spigot ends are calibrated for high-integrity jointing using butt fusion or contactless infrared (IR) fusion techniques. Strict manufacturing tolerances ensure precise axial alignment with PROGEF pipes to promote uniform melt flow and homogeneous, leak-tight welds.

Butt fusion welding is performed according to DVS 2207 welding guidelines, guaranteeing predictable joint strength comparable to the parent pipe. The geometry of the 45 degrees elbow features a smooth hydraulic radius that minimizes internal turbulence, reduces localized pressure drops, and cuts pumping energy requirements in continuous process duties.

Applications

This PROGEF elbow is engineered for industrial fluid transfer lines handling aggressive media and treated process water. It provides dependable performance across chemical synthesis, surface finishing, and effluent handling infrastructure.

Core operating duties include industrial wastewater treatment plants, chemical manufacturing process lines, electroplating and etching facilities, semiconductor utilities, and cooling loops. BigWeld supplies the entire PROGEF system to meet strict industrial process specifications throughout Europe.

  Datasheet (PDF)

The Georg Fischer PROGEF Standard 45 degrees elbow is an industrial thermoplastic spigot fitting designed for smooth directional changes in chemical and utility pressure piping systems. Moulded from beta-nucleated polypropylene homopolymer (β-PP-H) across the metric range d20 mm to d315 mm, it delivers SDR11 pressure resistance rated at PN10 (10 bar). Supplied by BigWeld as an authorised Georg Fischer distributor, it serves plant engineers requiring robust chemical resistance and long-term hydrostatic integrity.

Materials and standards

The fitting is manufactured from premium beta-nucleated polypropylene homopolymer (β-PP-H) in accordance with the EN ISO 15494 industrial piping standard. This specific formulation refines the crystalline polymer structure to maximize mechanical rigidity, impact strength, and resistance to environmental stress cracking under pressure.

Designed for an operational design life of 25 years with water at 20 degrees Celsius, the PROGEF compound withstands demanding process conditions without internal scaling or electrochemical corrosion. The material offers comprehensive resistance against inorganic acids, aggressive alkalis, salts, and industrial effluents.

  • Material: Beta-nucleated polypropylene homopolymer (β-PP-H)
  • Standard: EN ISO 15494 for industrial thermoplastic piping
  • Pressure rating: SDR11 / PN10 (10 bar maximum allowable operating pressure)
  • Dimensional range: d20 mm to d315 mm spigot ends
  • Design life: 25 years with water at 20 degrees Celsius

Installation and jointing

Both spigot ends are calibrated for high-integrity jointing using butt fusion or contactless infrared (IR) fusion techniques. Strict manufacturing tolerances ensure precise axial alignment with PROGEF pipes to promote uniform melt flow and homogeneous, leak-tight welds.

Butt fusion welding is performed according to DVS 2207 welding guidelines, guaranteeing predictable joint strength comparable to the parent pipe. The geometry of the 45 degrees elbow features a smooth hydraulic radius that minimizes internal turbulence, reduces localized pressure drops, and cuts pumping energy requirements in continuous process duties.

Applications

This PROGEF elbow is engineered for industrial fluid transfer lines handling aggressive media and treated process water. It provides dependable performance across chemical synthesis, surface finishing, and effluent handling infrastructure.

Core operating duties include industrial wastewater treatment plants, chemical manufacturing process lines, electroplating and etching facilities, semiconductor utilities, and cooling loops. BigWeld supplies the entire PROGEF system to meet strict industrial process specifications throughout Europe.
