Pneumatic Diaphragm Valve PP-H DIASTAR Six FC d25-63 6 Bar

Pneumatic Diaphragm Valve PP-H DIASTAR Six FC d25-63 6 Bar

Material: PP-H PN: 6 Bar

  Datasheet (PDF)

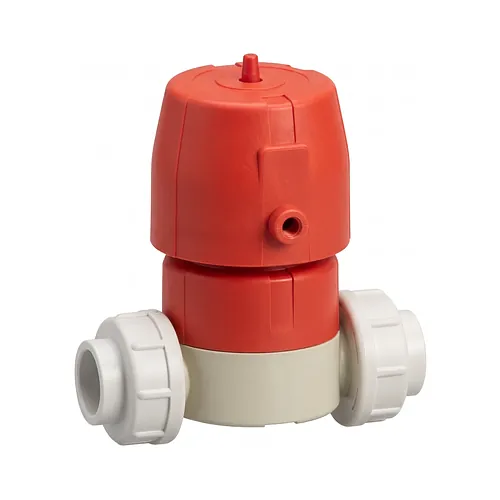

The Georg Fischer PROGEF Standard DIASTAR Six FC pneumatic diaphragm valve is engineered for precise flow regulation, throttling, and reliable shut-off in demanding industrial fluid networks. Designed with a fail-safe-to-close pneumatic actuator rated up to 6 bar, this valve handles aggressive chemicals, industrial wastewater, and high-purity water across pipe sizes from d25 mm to d63 mm with minimal pressure drop and dependable closure.

Technical specifications

The DIASTAR Six FC actuator provides automatic fail-safe shut-off utilizing an internal preloaded galvanised steel spring pack that closes instantly upon pilot air pressure loss. Its integrated optical indicator delivers visual valve position feedback, while configurable air supply ports ensure straightforward pneumatic routing.

  • Nominal working pressure: Rated for line operating pressures up to 6 bar.
  • Actuation mode: Pneumatic single-acting fail-safe-to-close (FC) mechanism.
  • Dimensional range: Covers metric outside diameters from d25 mm to d63 mm.
  • Pneumatic pilot connection: Air connection ports rotatable in 90-degree increments for versatile tube routing.
  • Mounting integration: Built-in threaded inserts allow direct and secure support on pipe brackets.

Materials and standards

Constructed entirely from industrial-grade plastics, the valve combines a beta polypropylene homopolymer body with a glass-fibre reinforced polypropylene actuator casing for total corrosion immunity. The design eliminates external metal hardware to prevent atmospheric degradation in aggressive industrial environments.

The valve body is injection-moulded from high-performance beta-PP-H, offering superior resistance against concentrated acids, alkalis, inorganic salts, and elevated temperature chemicals. The actuator upper body is manufactured from flame-retardant PPGF, providing robust impact resistance without external painting or protective coatings. An elastomer EPDM diaphragm ensures high hermetic seal integrity across the weir, while the central union nut assembly secures the actuator directly to the body without through-bolts.

Installation and jointing

The valve features double union ends designed for metric socket fusion jointing into standard SDR 11 polypropylene piping systems. This true union configuration allows radial installation, quick disassembly, and rapid maintenance without cutting or dismantling adjacent pipe runs.

Socket fusion creates homogeneous, leak-tight welded joints that match the long-term hydrostatic pressure resistance of the surrounding PROGEF Standard PP-H pipeline. During routine servicing or diaphragm inspection, the central housing union nut permits the entire actuator and diaphragm assembly to be removed cleanly while the body remains aligned in the piping skid.

  Datasheet (PDF)

The Georg Fischer PROGEF Standard DIASTAR Six FC pneumatic diaphragm valve is engineered for precise flow regulation, throttling, and reliable shut-off in demanding industrial fluid networks. Designed with a fail-safe-to-close pneumatic actuator rated up to 6 bar, this valve handles aggressive chemicals, industrial wastewater, and high-purity water across pipe sizes from d25 mm to d63 mm with minimal pressure drop and dependable closure.

Technical specifications

The DIASTAR Six FC actuator provides automatic fail-safe shut-off utilizing an internal preloaded galvanised steel spring pack that closes instantly upon pilot air pressure loss. Its integrated optical indicator delivers visual valve position feedback, while configurable air supply ports ensure straightforward pneumatic routing.

  • Nominal working pressure: Rated for line operating pressures up to 6 bar.
  • Actuation mode: Pneumatic single-acting fail-safe-to-close (FC) mechanism.
  • Dimensional range: Covers metric outside diameters from d25 mm to d63 mm.
  • Pneumatic pilot connection: Air connection ports rotatable in 90-degree increments for versatile tube routing.
  • Mounting integration: Built-in threaded inserts allow direct and secure support on pipe brackets.

Materials and standards

Constructed entirely from industrial-grade plastics, the valve combines a beta polypropylene homopolymer body with a glass-fibre reinforced polypropylene actuator casing for total corrosion immunity. The design eliminates external metal hardware to prevent atmospheric degradation in aggressive industrial environments.

The valve body is injection-moulded from high-performance beta-PP-H, offering superior resistance against concentrated acids, alkalis, inorganic salts, and elevated temperature chemicals. The actuator upper body is manufactured from flame-retardant PPGF, providing robust impact resistance without external painting or protective coatings. An elastomer EPDM diaphragm ensures high hermetic seal integrity across the weir, while the central union nut assembly secures the actuator directly to the body without through-bolts.

Installation and jointing

The valve features double union ends designed for metric socket fusion jointing into standard SDR 11 polypropylene piping systems. This true union configuration allows radial installation, quick disassembly, and rapid maintenance without cutting or dismantling adjacent pipe runs.

Socket fusion creates homogeneous, leak-tight welded joints that match the long-term hydrostatic pressure resistance of the surrounding PROGEF Standard PP-H pipeline. During routine servicing or diaphragm inspection, the central housing union nut permits the entire actuator and diaphragm assembly to be removed cleanly while the body remains aligned in the piping skid.
