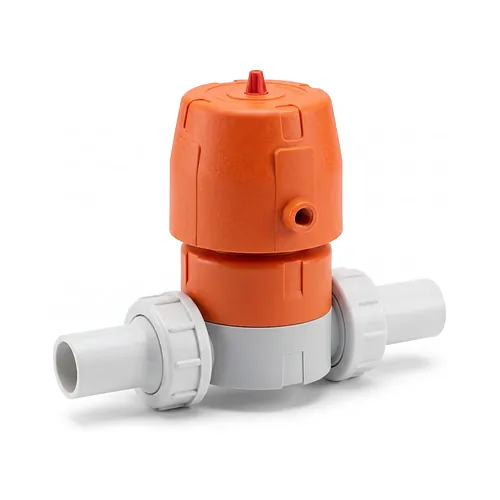

PP-H Pneumatic Diaphragm Valve PROGEF DIASTAR Six FC 6 Bar d25-63

PP-H Pneumatic Diaphragm Valve PROGEF DIASTAR Six FC 6 Bar d25-63

Material: PP-H PN: 6 Bar

  Datasheet (PDF)

The Georg Fischer PROGEF Standard DIASTAR Six FC pneumatic diaphragm valve provides fail-safe flow regulation and shut-off in demanding industrial chemical processes and water treatment pipelines. Manufactured from unpigmented isotactic polypropylene homopolymeride (β-PP-H) with metric SDR11 butt fusion spigots from d25 to d63, this automated valve ensures zero metal contact with corrosive media while delivering robust operation at working pressures up to 6 bar.

Technical specifications

The valve integrates a high-efficiency weir body design with a normally closed pneumatic actuator engineered for continuous process duty. An internal galvanised steel spring pack automatically closes the valve upon loss of pilot air pressure, preventing unintentional discharge or system contamination.

  • Operating pressure: Rated for line pressures up to 6 bar
  • Actuation mode: Fail Safe to Close (FC) pneumatic actuator with internal spring pack
  • Flow performance: Hydrodynamically optimised weir body nearly doubling legacy Kv flow values
  • Connection format: True union ends with metric SDR11 butt fusion spigots (d25 to d63)
  • Visual feedback: Integrated optical position indicator with pilot air port indexing in 90 degrees increments

Materials and standards

All wetted surfaces and structural components are manufactured from premium thermoplastics to resist harsh external atmospheres and aggressive media. The assembly complies fully with EN ISO 16138 standards for industrial valves and undergoes rigorous hydrostatic testing in accordance with ISO 9393.

The valve body is injection moulded from high-grade β-PP-H, paired with an impact-resistant glass-fibre reinforced polypropylene (PP-GF) bonnet that eliminates exposed metallic fasteners. Diaphragm options in EPDM or FKM provide tailored chemical resistance across wide-ranging industrial acids, alkalis, and inorganic salt solutions.

Installation and jointing

Radial disassembly is enabled by the true union design, allowing fast maintenance or diaphragm replacement without spreading or displacing adjacent pipe spools. Jointing to SDR11 PP-H pipelines is completed via standard butt fusion or infrared (IR) welding techniques. As an authorised Georg Fischer distributor, BigWeld supplies the entire DIASTAR portfolio along with compatible butt fusion equipment and complete technical documentation.

  Datasheet (PDF)

The Georg Fischer PROGEF Standard DIASTAR Six FC pneumatic diaphragm valve provides fail-safe flow regulation and shut-off in demanding industrial chemical processes and water treatment pipelines. Manufactured from unpigmented isotactic polypropylene homopolymeride (β-PP-H) with metric SDR11 butt fusion spigots from d25 to d63, this automated valve ensures zero metal contact with corrosive media while delivering robust operation at working pressures up to 6 bar.

Technical specifications

The valve integrates a high-efficiency weir body design with a normally closed pneumatic actuator engineered for continuous process duty. An internal galvanised steel spring pack automatically closes the valve upon loss of pilot air pressure, preventing unintentional discharge or system contamination.

  • Operating pressure: Rated for line pressures up to 6 bar
  • Actuation mode: Fail Safe to Close (FC) pneumatic actuator with internal spring pack
  • Flow performance: Hydrodynamically optimised weir body nearly doubling legacy Kv flow values
  • Connection format: True union ends with metric SDR11 butt fusion spigots (d25 to d63)
  • Visual feedback: Integrated optical position indicator with pilot air port indexing in 90 degrees increments

Materials and standards

All wetted surfaces and structural components are manufactured from premium thermoplastics to resist harsh external atmospheres and aggressive media. The assembly complies fully with EN ISO 16138 standards for industrial valves and undergoes rigorous hydrostatic testing in accordance with ISO 9393.

The valve body is injection moulded from high-grade β-PP-H, paired with an impact-resistant glass-fibre reinforced polypropylene (PP-GF) bonnet that eliminates exposed metallic fasteners. Diaphragm options in EPDM or FKM provide tailored chemical resistance across wide-ranging industrial acids, alkalis, and inorganic salt solutions.

Installation and jointing

Radial disassembly is enabled by the true union design, allowing fast maintenance or diaphragm replacement without spreading or displacing adjacent pipe spools. Jointing to SDR11 PP-H pipelines is completed via standard butt fusion or infrared (IR) welding techniques. As an authorised Georg Fischer distributor, BigWeld supplies the entire DIASTAR portfolio along with compatible butt fusion equipment and complete technical documentation.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 25 mm
Gasket EPDM
167614113
Material: PP-H
PN: 6 Bar
pcs €295.22
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
Gasket FKM
800047262
Material: PP-H
PN: 6 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
Gasket EPDM
167614114
Material: PP-H
PN: 6 Bar
pcs €321.10
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
Gasket FKM
800047263
Material: PP-H
PN: 6 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
Gasket EPDM
167614115
Material: PP-H
PN: 6 Bar
pcs €380.64
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
Gasket FKM
800047259
Material: PP-H
PN: 6 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
Gasket EPDM
167614116
Material: PP-H
PN: 6 Bar
pcs €450.56
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
Gasket FKM
800047264
Material: PP-H
PN: 6 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
Gasket EPDM
167614117
Material: PP-H
PN: 6 Bar
pcs €580.04
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
Gasket FKM
800047265
Material: PP-H
PN: 6 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 167614113
D: 25 mm
Gasket: EPDM
Ships in 24 hours
€295.22 / pcs
SKU: 800047262
D: 25 mm
Gasket: FKM
Ships in 24 hours
On Request / pcs
SKU: 167614114
D: 32 mm
Gasket: EPDM
Ships in 24 hours
€321.10 / pcs
SKU: 800047263
D: 32 mm
Gasket: FKM
Ships in 24 hours
On Request / pcs
SKU: 167614115
D: 40 mm
Gasket: EPDM
Ships in 24 hours
€380.64 / pcs
SKU: 800047259
D: 40 mm
Gasket: FKM
Ships in 24 hours
On Request / pcs
SKU: 167614116
D: 50 mm
Gasket: EPDM
Ships in 24 hours
€450.56 / pcs
SKU: 800047264
D: 50 mm
Gasket: FKM
Ships in 24 hours
On Request / pcs
SKU: 167614117
D: 63 mm
Gasket: EPDM
Ships in 24 hours
€580.04 / pcs
SKU: 800047265
D: 63 mm
Gasket: FKM
Ships in 24 hours
On Request / pcs
