MSA 340 Electrofusion Welding Unit with GPS & Traceability, d20–1400 mm
Datasheet (PDF) | Product Range | Instructional Video

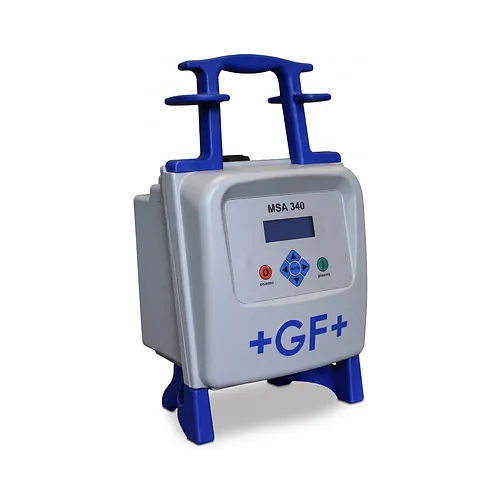

The Georg Fischer MSA 340 electrofusion welding unit is engineered for jointing polyethylene (PE) and polypropylene (PP) pressure piping systems from d20 mm up to d1400 mm. Built for gas distribution, potable water supply, and heavy industrial installations, this unit delivers high-power fusion alongside automated process control. As an authorised Georg Fischer distributor, BigWeld supplies the MSA 340 to civil engineering contractors and utility installers who require certified joint integrity and rigorous traceability.
Technical specifications
The unit delivers robust electrical output and intelligent thermal regulation designed to sustain continuous electrofusion cycles on demanding jobsite installations.
Engineered with a die-cast aluminium housing rated to IP65, the MSA 340 protects internal electronics from water spray and fine trench dust. An integrated temperature sensor automatically compensates energy output across ambient conditions from -10 degrees to +45 degrees Celsius, maintaining precise melt parameters during series welding.
- Fusion output voltage: 8 to 48 V with maximum current up to 100 A
- Ambient operating temperature range: -10 degrees to +45 degrees Celsius
- Internal memory storage: up to 1000 detailed fusion protocols
- Protection class: Class 1 / IP65 die-cast aluminium casing
- Data transfer and positioning: integrated GPS receiver and USB interface
Materials and standards
The MSA 340 complies fully with international quality assurance protocols governing thermoplastic piping installations across utility networks.
Operating under ISO 12176 standards for electrofusion equipment, the system supports ISO 12176-3 operator badge recognition and ISO 12176-4 component traceability. Fusion parameters are captured instantly via optical barcode scanner or manual key entry. Data export is executed through standard USB media in PDF and CSV file formats, enabling direct integration into geographic information systems (GIS) and municipal asset registers for PE 80, PE 100, PE 100-RC, and PP piping networks.
Installation and jointing
Field operation is streamlined by high-visibility graphical navigation, extended cable lengths, and adaptable terminal connectors.
The unit is equipped with a high-contrast graphical LCD that guides the pipe fitter through pre-fusion checks and cooling times. Standard supply includes a 4-metre mains connection cable, a 4-metre heavy-duty welding cable, and interchangeable 4.0 mm and 4.7 mm angular connector adapters. This setup ensures seamless access inside deep pipeline excavations, minimizing setup delays during large-diameter electrofusion socket or coupler welding.
Datasheet (PDF) | Product Range | Instructional Video
The Georg Fischer MSA 340 electrofusion welding unit is engineered for jointing polyethylene (PE) and polypropylene (PP) pressure piping systems from d20 mm up to d1400 mm. Built for gas distribution, potable water supply, and heavy industrial installations, this unit delivers high-power fusion alongside automated process control. As an authorised Georg Fischer distributor, BigWeld supplies the MSA 340 to civil engineering contractors and utility installers who require certified joint integrity and rigorous traceability.
Technical specifications
The unit delivers robust electrical output and intelligent thermal regulation designed to sustain continuous electrofusion cycles on demanding jobsite installations.
Engineered with a die-cast aluminium housing rated to IP65, the MSA 340 protects internal electronics from water spray and fine trench dust. An integrated temperature sensor automatically compensates energy output across ambient conditions from -10 degrees to +45 degrees Celsius, maintaining precise melt parameters during series welding.
- Fusion output voltage: 8 to 48 V with maximum current up to 100 A
- Ambient operating temperature range: -10 degrees to +45 degrees Celsius
- Internal memory storage: up to 1000 detailed fusion protocols
- Protection class: Class 1 / IP65 die-cast aluminium casing
- Data transfer and positioning: integrated GPS receiver and USB interface
Materials and standards
The MSA 340 complies fully with international quality assurance protocols governing thermoplastic piping installations across utility networks.
Operating under ISO 12176 standards for electrofusion equipment, the system supports ISO 12176-3 operator badge recognition and ISO 12176-4 component traceability. Fusion parameters are captured instantly via optical barcode scanner or manual key entry. Data export is executed through standard USB media in PDF and CSV file formats, enabling direct integration into geographic information systems (GIS) and municipal asset registers for PE 80, PE 100, PE 100-RC, and PP piping networks.
Installation and jointing
Field operation is streamlined by high-visibility graphical navigation, extended cable lengths, and adaptable terminal connectors.
The unit is equipped with a high-contrast graphical LCD that guides the pipe fitter through pre-fusion checks and cooling times. Standard supply includes a 4-metre mains connection cable, a 4-metre heavy-duty welding cable, and interchangeable 4.0 mm and 4.7 mm angular connector adapters. This setup ensures seamless access inside deep pipeline excavations, minimizing setup delays during large-diameter electrofusion socket or coupler welding.
| Size | SKU | U.M. |
Price
incl. 21% VAT
VAT is calculated at checkout. It depends on who is buying (private person or company) and where the order is shipped, so the final rate may differ from the one shown here.
|
Availability | Add To Cart |
|---|---|---|---|---|---|
|
D
20 mm
D
1400 mm
|
790160063 | pcs | €4,825.27 |
