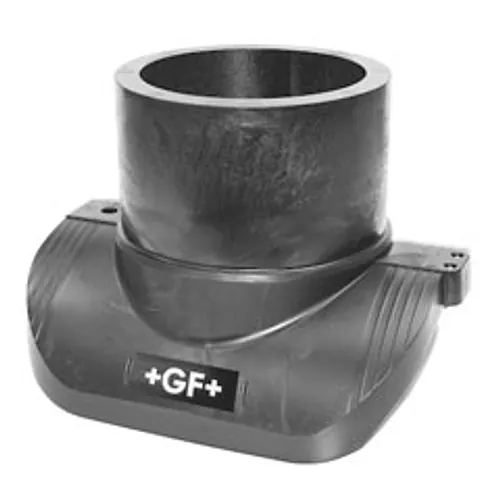

Black HDPE electrofusion branch saddle Topload PE100 fitting on a white background

Electrofusion Branch Saddle Topload PE100 d160-225 mm SDR11

Material: Polyethylene PN: 16 Bar SDR: 11

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus Topload electrofusion branch saddle in PE100 SDR 11 creates branch outlets on existing polyethylene pipelines without severing the main line. Designed for utility engineers and industrial piping contractors, this fitting is rated for operating pressures of 16 bar in water networks and 10 bar in gas distribution systems. It fuses exclusively from the top of the pipe, eliminating under-pipe trench excavation.

Technical specifications

The ELGEF Plus Topload saddle incorporates integrated clamping and electrofusion elements configured for fast, reliable joining on d160 mm and d225 mm mains. It connects directly to standard electrofusion control units using universal 4 mm pin terminals.

  • Nominal pressure: 16 bar water / 10 bar gas
  • Standard dimension ratio: SDR 11
  • Main pipe compatibility: d160 mm and d225 mm PE100 pipes
  • Fusion connection: 4 mm terminal pins with limited-path fusion indicators
  • Quality documentation: Barcode embedded with full Track and Trace data

Materials and standards

Manufactured from 100 percent virgin PE100 compound approved by the PE100+ Association, this fitting provides comprehensive corrosion resistance and an estimated service life of 100 years. The material retains impact toughness down to -40 degrees C, ensuring durable performance in utility installations.

The component complies with EN 12201 for potable water systems and EN 1555 for combustible gas networks. The ELGEF Plus range holds international quality and sanitary approvals including DVGW, KIWA, ACS, KTW/W270 and SVGW. Material properties feature a yield stress of 25 N/mm² and Charpy notched impact strength of 83 kJ/m² at 23 degrees C (13 kJ/m² at -40 degrees C). BigWeld is an authorised Georg Fischer distributor supplying genuine ELGEF Plus fittings and electrofusion tooling.

Applications

Topload electrofusion branch saddles provide branch connections on pressurized or unpressurized polyethylene mains across municipal and industrial sectors. Installation from the top of the main minimizes civil works in tight trenches.

Typical installations include municipal drinking water distribution, natural gas networks, industrial process piping, agricultural irrigation headers, and underground fire protection systems.

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus Topload electrofusion branch saddle in PE100 SDR 11 creates branch outlets on existing polyethylene pipelines without severing the main line. Designed for utility engineers and industrial piping contractors, this fitting is rated for operating pressures of 16 bar in water networks and 10 bar in gas distribution systems. It fuses exclusively from the top of the pipe, eliminating under-pipe trench excavation.

Technical specifications

The ELGEF Plus Topload saddle incorporates integrated clamping and electrofusion elements configured for fast, reliable joining on d160 mm and d225 mm mains. It connects directly to standard electrofusion control units using universal 4 mm pin terminals.

  • Nominal pressure: 16 bar water / 10 bar gas
  • Standard dimension ratio: SDR 11
  • Main pipe compatibility: d160 mm and d225 mm PE100 pipes
  • Fusion connection: 4 mm terminal pins with limited-path fusion indicators
  • Quality documentation: Barcode embedded with full Track and Trace data

Materials and standards

Manufactured from 100 percent virgin PE100 compound approved by the PE100+ Association, this fitting provides comprehensive corrosion resistance and an estimated service life of 100 years. The material retains impact toughness down to -40 degrees C, ensuring durable performance in utility installations.

The component complies with EN 12201 for potable water systems and EN 1555 for combustible gas networks. The ELGEF Plus range holds international quality and sanitary approvals including DVGW, KIWA, ACS, KTW/W270 and SVGW. Material properties feature a yield stress of 25 N/mm² and Charpy notched impact strength of 83 kJ/m² at 23 degrees C (13 kJ/m² at -40 degrees C). BigWeld is an authorised Georg Fischer distributor supplying genuine ELGEF Plus fittings and electrofusion tooling.

Applications

Topload electrofusion branch saddles provide branch connections on pressurized or unpressurized polyethylene mains across municipal and industrial sectors. Installation from the top of the main minimizes civil works in tight trenches.

Typical installations include municipal drinking water distribution, natural gas networks, industrial process piping, agricultural irrigation headers, and underground fire protection systems.
