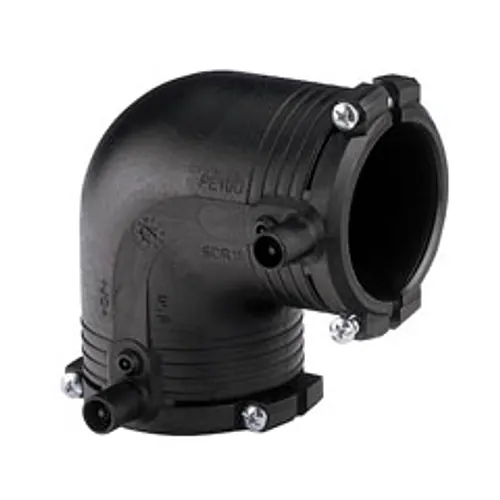

Black elbow 90 degrees electrofusion PE100 SDR11 fitting with pin terminals

Elbow 90 degrees electrofusion PE100 SDR11

Material: Polyethylene PN: 16 Bar SDR: 11

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus 90 degrees electrofusion elbow is an engineered PE100 fitting designed for directional changes in pressurized polyethylene pipelines. Manufactured in SDR 11 across the entire d20 to d250 mm diameter range, this fitting is rated for 16 bar in water applications and 10 bar in gas distribution networks. It provides pipeline installers and utility engineers with a high-integrity, leak-free joint that maintains the full nominal pressure rating of the pipeline without restriction.

Technical specifications

The ELGEF Plus 90 degrees elbow delivers dependable hydraulic performance across utility and industrial process lines, maintaining a constant SDR 11 wall ratio throughout the fitting geometry. Each unit is pressure rated to ensure continuous operation across demanding environmental conditions.

  • Material: 100% virgin PE100 polyethylene resin (black RAL 9005)
  • Dimensional range: d20 mm to d250 mm in SDR 11
  • Nominal pressure rating: 16 bar for water / 10 bar for gas
  • Operating temperature: -50 degrees Celsius to +60 degrees Celsius
  • Connection system: Electrofusion socket with 4 mm pin connectors
  • Compliance standards: EN 12201-3 (water supply) and EN 1555-3 (fuel gas distribution)

Materials and standards

Manufactured entirely from fully compounded, virgin PE100 resin approved by the PE100+ Association, the fitting offers exceptional resistance to chemical attack, abrasion, and environmental stress cracking. The material exhibits a density of approximately 0.95 g/cm³, a yield stress of 25 N/mm², and a tensile modulus of 900 N/mm² at 23 degrees Celsius, ensuring high mechanical strength under hydraulic pressure surges.

The component complies with European design standards EN 12201 for potable water systems and EN 1555 for combustible gas lines. It holds comprehensive international hygiene and utility certifications, including ACS, DVGW, KIWA, KTW/W270, and SVGW approvals. Full production tracking is embedded into every individual fitting via an integrated Track & Trace barcode system, enabling digital weld data logging and long-term asset verification.

Installation and jointing

Welding is conducted using standard electrofusion control units compatible with 4 mm terminal pins, guided by automated barcode scanning or manual parameter input. Visual confirmation of heating is provided by built-in limited path fusion indicators that emerge upon successful completion of the weld cycle.

For sizes from d20 to d63 mm, the fitting incorporates an integral pipe fixation mechanism that clamps the inserted pipe ends firmly in concentric alignment throughout heating and cooling phases, eliminating the need for external alignment clamps. Diameters from d200 to d250 mm feature two independent fusion zones, allowing each socket to be energized and welded separately under dedicated cycle parameters to accommodate large pipe handling on site.

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus 90 degrees electrofusion elbow is an engineered PE100 fitting designed for directional changes in pressurized polyethylene pipelines. Manufactured in SDR 11 across the entire d20 to d250 mm diameter range, this fitting is rated for 16 bar in water applications and 10 bar in gas distribution networks. It provides pipeline installers and utility engineers with a high-integrity, leak-free joint that maintains the full nominal pressure rating of the pipeline without restriction.

Technical specifications

The ELGEF Plus 90 degrees elbow delivers dependable hydraulic performance across utility and industrial process lines, maintaining a constant SDR 11 wall ratio throughout the fitting geometry. Each unit is pressure rated to ensure continuous operation across demanding environmental conditions.

  • Material: 100% virgin PE100 polyethylene resin (black RAL 9005)
  • Dimensional range: d20 mm to d250 mm in SDR 11
  • Nominal pressure rating: 16 bar for water / 10 bar for gas
  • Operating temperature: -50 degrees Celsius to +60 degrees Celsius
  • Connection system: Electrofusion socket with 4 mm pin connectors
  • Compliance standards: EN 12201-3 (water supply) and EN 1555-3 (fuel gas distribution)

Materials and standards

Manufactured entirely from fully compounded, virgin PE100 resin approved by the PE100+ Association, the fitting offers exceptional resistance to chemical attack, abrasion, and environmental stress cracking. The material exhibits a density of approximately 0.95 g/cm³, a yield stress of 25 N/mm², and a tensile modulus of 900 N/mm² at 23 degrees Celsius, ensuring high mechanical strength under hydraulic pressure surges.

The component complies with European design standards EN 12201 for potable water systems and EN 1555 for combustible gas lines. It holds comprehensive international hygiene and utility certifications, including ACS, DVGW, KIWA, KTW/W270, and SVGW approvals. Full production tracking is embedded into every individual fitting via an integrated Track & Trace barcode system, enabling digital weld data logging and long-term asset verification.

Installation and jointing

Welding is conducted using standard electrofusion control units compatible with 4 mm terminal pins, guided by automated barcode scanning or manual parameter input. Visual confirmation of heating is provided by built-in limited path fusion indicators that emerge upon successful completion of the weld cycle.

For sizes from d20 to d63 mm, the fitting incorporates an integral pipe fixation mechanism that clamps the inserted pipe ends firmly in concentric alignment throughout heating and cooling phases, eliminating the need for external alignment clamps. Diameters from d200 to d250 mm feature two independent fusion zones, allowing each socket to be energized and welded separately under dedicated cycle parameters to accommodate large pipe handling on site.
