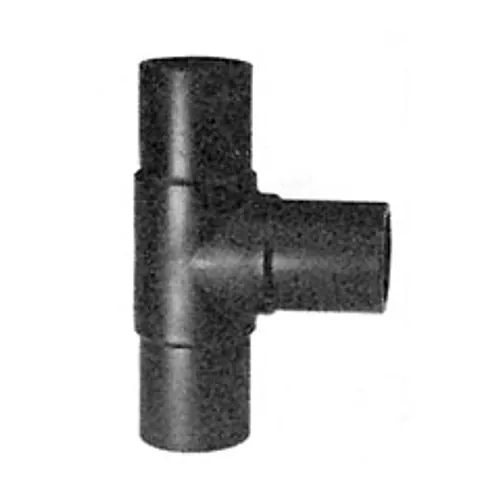

Black injected HDPE equal tee 90 degrees PE100 fitting

Tee 90 degrees equal HDPE PE100 SDR17 d90-d800

Material: Polyethylene PN: 10 Bar SDR: 17

  Datasheet (PDF) |   | |   Product Range |   | | Instructional Video

The Georg Fischer (GF Piping Systems) ELGEF Plus 90-degree equal tee PE100 SDR17 is an engineered spigot fitting designed for branch connections in municipal water networks, natural gas mains, and industrial utility piping. Intended for utility contractors, civil engineers, and pipeline installers, this fitting delivers reliable fluid division under operating pressures of up to 10 bar for water and 5 bar for gas across diameter sizes from d90 mm to d800 mm.

Technical specifications

The ELGEF Plus SDR17 equal tee provides balanced hydraulic flow and high structural stability across subterranean and above-ground pipeline routes. Manufactured to standard dimension ratio SDR17, the fitting features extended spigots that accommodate multiple joining systems without requiring additional adaptors.

  • Nominal pressure rating: PN10 for water networks and PN5 for natural gas systems across the range.
  • Dimensional coverage: diameter sizes spanning from d90 mm up to d800 mm (DN80 to DN800).
  • Manufacturing method: homogeneous injection moulding up to d630 mm, precision-machined with welded pipe spigots for d710 mm and d800 mm.
  • Material classification: high-density polyethylene PE100 certified by the PE100+ Association for crack resistance.
  • Welding compatibility: dual qualification for electrofusion couplers and butt fusion welding machinery.
  • Traceability: permanent embossed production codes and batch identification on every individual component.

Applications

This equal tee fitting is certified for buried utility distribution networks conveying potable water, industrial cooling water, wastewater, and gaseous fuels. Its robust structural design makes it suitable for urban infrastructure projects, industrial plant installations, and agricultural irrigation networks.

The chemical inertness of PE100 ensures resistance against aggressive media, soil settlement, and corrosive ground chemistries, eliminating the tuberculation and encrustation common in metallic piping. In gas distribution infrastructure, the resin exhibits superior resistance to rapid crack propagation and slow crack growth, safeguarding continuous distribution integrity under heavy cyclic and seismic loads.

Installation and jointing

Long spigot ends provide generous clamping lengths designed for quick alignment in standard butt fusion equipment or clamping tools used with electrofusion couplers. All jointing procedures should be executed in strict compliance with DVS 2207 welding guidelines and manufacturer instructions.

The extended spigot geometry protects the joint fusion zone from mechanical stress and ensures sufficient clearance for scraping tools, cleaning agents, and heating elements. BigWeld is an authorised Georg Fischer distributor, supplying the complete ELGEF Plus polyethylene piping range with technical documentation, factory test reports, and direct logistical support across European utility projects.

  Datasheet (PDF) |   | |   Product Range |   | | Instructional Video

The Georg Fischer (GF Piping Systems) ELGEF Plus 90-degree equal tee PE100 SDR17 is an engineered spigot fitting designed for branch connections in municipal water networks, natural gas mains, and industrial utility piping. Intended for utility contractors, civil engineers, and pipeline installers, this fitting delivers reliable fluid division under operating pressures of up to 10 bar for water and 5 bar for gas across diameter sizes from d90 mm to d800 mm.

Technical specifications

The ELGEF Plus SDR17 equal tee provides balanced hydraulic flow and high structural stability across subterranean and above-ground pipeline routes. Manufactured to standard dimension ratio SDR17, the fitting features extended spigots that accommodate multiple joining systems without requiring additional adaptors.

  • Nominal pressure rating: PN10 for water networks and PN5 for natural gas systems across the range.
  • Dimensional coverage: diameter sizes spanning from d90 mm up to d800 mm (DN80 to DN800).
  • Manufacturing method: homogeneous injection moulding up to d630 mm, precision-machined with welded pipe spigots for d710 mm and d800 mm.
  • Material classification: high-density polyethylene PE100 certified by the PE100+ Association for crack resistance.
  • Welding compatibility: dual qualification for electrofusion couplers and butt fusion welding machinery.
  • Traceability: permanent embossed production codes and batch identification on every individual component.

Applications

This equal tee fitting is certified for buried utility distribution networks conveying potable water, industrial cooling water, wastewater, and gaseous fuels. Its robust structural design makes it suitable for urban infrastructure projects, industrial plant installations, and agricultural irrigation networks.

The chemical inertness of PE100 ensures resistance against aggressive media, soil settlement, and corrosive ground chemistries, eliminating the tuberculation and encrustation common in metallic piping. In gas distribution infrastructure, the resin exhibits superior resistance to rapid crack propagation and slow crack growth, safeguarding continuous distribution integrity under heavy cyclic and seismic loads.

Installation and jointing

Long spigot ends provide generous clamping lengths designed for quick alignment in standard butt fusion equipment or clamping tools used with electrofusion couplers. All jointing procedures should be executed in strict compliance with DVS 2207 welding guidelines and manufacturer instructions.

The extended spigot geometry protects the joint fusion zone from mechanical stress and ensures sufficient clearance for scraping tools, cleaning agents, and heating elements. BigWeld is an authorised Georg Fischer distributor, supplying the complete ELGEF Plus polyethylene piping range with technical documentation, factory test reports, and direct logistical support across European utility projects.
