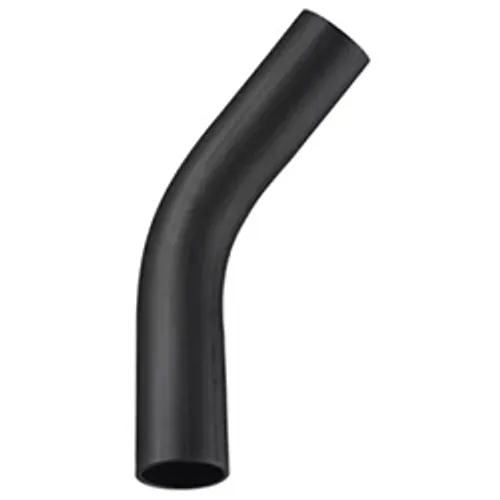

Black HDPE 30° bend PE100 SDR11 pipe fitting with smooth finish

Bend 30° PE100 SDR11 PN16 d32-d900mm

Material: Polyethylene PN: 16 Bar SDR: 11

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus 30-degree bend in PE100 SDR11 is an engineered long-spigot fitting manufactured from seamless high-density polyethylene pipe for pressurized water distribution, utility infrastructure, and industrial fluid systems. Designed for demanding municipal and industrial pipework, it provides continuous 16 bar operating pressure for water at 20°C across diameters from d32 mm up to d900 mm. Its continuous 1.5×d bend radius ensures streamlined flow and low head loss.

Technical specifications

This seamless polyethylene bend provides optimized fluid dynamics and complete pressure containment for continuous piping networks. The long-radius design minimizes hydraulic turbulence and flow separation across directional deviations.

  • Nominal pressure rating: PN16 (16 bar water at 20°C)
  • Standard dimension ratio: SDR11
  • Bending geometry: 30° arc with a continuous 1.5×d radius (R = 48 mm to 1350 mm)
  • Dimensional coverage: d32 mm to d900 mm outer diameter
  • Fitting construction: Seamless extruded PE100 pipe with uniform wall thickness
  • Spigot configuration: Extended spigot ends for electrofusion couplers or butt fusion clamps

Materials and standards

Manufactured from virgin high-density PE100 polymer, the fitting conforms to rigorous international standards for pressure piping. Selected larger dimensions between d355 mm and d500 mm also comply with FM 1613 approvals at 15 bar pressure rating.

The high-density resin delivers comprehensive chemical resistance across a broad spectrum of industrial media, eliminating the risks of internal scaling, tuberculation, and soil corrosion. Because PE100 is completely non-conductive and immune to microbiological degradation, the installation requires no external protective wrap or sacrificial cathodic protection systems in buried trenches or above-ground infrastructure.

Installation and jointing

Extended spigots provide full compatibility with electrofusion fittings and conventional heated-tool butt fusion equipment. All thermal joining procedures must follow DVS 2207 welding guidelines to achieve fully homogeneous, leak-tight joints.

A critical field guideline governs this component: bends formed from seamless pipe must never be shortened or cut on site. Preserving the exact factory spigot lengths is essential to maintain structural alignment, ensure adequate clamping zones in welding machinery, and prevent detrimental mechanical stress concentrations within the curved pipe profile.

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus 30-degree bend in PE100 SDR11 is an engineered long-spigot fitting manufactured from seamless high-density polyethylene pipe for pressurized water distribution, utility infrastructure, and industrial fluid systems. Designed for demanding municipal and industrial pipework, it provides continuous 16 bar operating pressure for water at 20°C across diameters from d32 mm up to d900 mm. Its continuous 1.5×d bend radius ensures streamlined flow and low head loss.

Technical specifications

This seamless polyethylene bend provides optimized fluid dynamics and complete pressure containment for continuous piping networks. The long-radius design minimizes hydraulic turbulence and flow separation across directional deviations.

  • Nominal pressure rating: PN16 (16 bar water at 20°C)
  • Standard dimension ratio: SDR11
  • Bending geometry: 30° arc with a continuous 1.5×d radius (R = 48 mm to 1350 mm)
  • Dimensional coverage: d32 mm to d900 mm outer diameter
  • Fitting construction: Seamless extruded PE100 pipe with uniform wall thickness
  • Spigot configuration: Extended spigot ends for electrofusion couplers or butt fusion clamps

Materials and standards

Manufactured from virgin high-density PE100 polymer, the fitting conforms to rigorous international standards for pressure piping. Selected larger dimensions between d355 mm and d500 mm also comply with FM 1613 approvals at 15 bar pressure rating.

The high-density resin delivers comprehensive chemical resistance across a broad spectrum of industrial media, eliminating the risks of internal scaling, tuberculation, and soil corrosion. Because PE100 is completely non-conductive and immune to microbiological degradation, the installation requires no external protective wrap or sacrificial cathodic protection systems in buried trenches or above-ground infrastructure.

Installation and jointing

Extended spigots provide full compatibility with electrofusion fittings and conventional heated-tool butt fusion equipment. All thermal joining procedures must follow DVS 2207 welding guidelines to achieve fully homogeneous, leak-tight joints.

A critical field guideline governs this component: bends formed from seamless pipe must never be shortened or cut on site. Preserving the exact factory spigot lengths is essential to maintain structural alignment, ensure adequate clamping zones in welding machinery, and prevent detrimental mechanical stress concentrations within the curved pipe profile.
