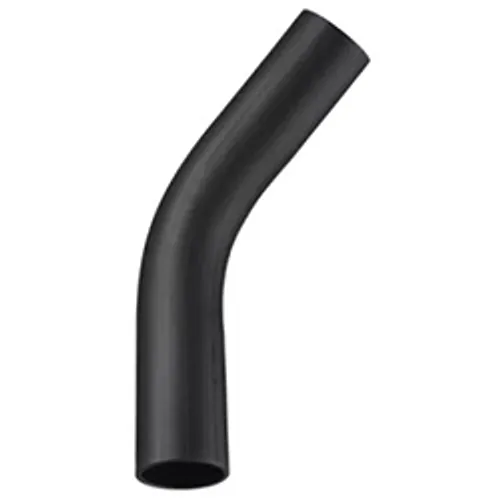

Black bend 22 degrees PE100 SDR17 PN10 injected fitting for HDPE pipes

Bend 22 degrees PE100 SDR17 PN10

Material: Polyethylene PN: 10 Bar SDR: 17

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus bend 22 degrees PE100 SDR17 is an engineered long-spigot piping component manufactured from seamless high-density polyethylene pipe for utility and industrial fluid conveyance. Rated for nominal operating pressures up to PN10 on water systems, this fitting covers dimensions from d90 up to d1000 mm. Designed for low hydraulic resistance, it enables pipeline designers to accommodate directional deviations along trenches and road profiles with minimal pressure loss.

Technical specifications

This seamless PE100 fitting maintains consistent wall thickness throughout the bend radius, avoiding the localized stress concentrations and flow turbulence associated with segmented or fabricated fittings. Formed with a 1.5 × d centerline bending radius, it ensures superior flow characteristics and structural resilience under continuous hydrostatic load.

Key engineering characteristics include:

  • Material grade: Virgin PE100 high-density polyethylene with high crack resistance
  • Geometric deflection: 22 degrees with a smooth centerline bend radius of 1.5 × d
  • Dimensional span: Outer diameters from d90 mm (DN80) to d1000 mm (DN1000)
  • Pressure classification: SDR17 rated for PN10 water and PN5 natural gas services
  • Spigot execution: Long straight pipe ends accommodating standard clamping tools and electrofusion couplers

Installation and jointing

Each spigot end features generous straight lengths designed for compatibility with both butt fusion machines and electrofusion couplers. This dual jointing capability allows installation teams to easily weld the bend directly into existing or newly laid PE100 pipe spools across various site conditions.

Because these fittings are hot-formed from seamless extruded PE100 pipe, site personnel must never cut or shorten the spigot ends. Shortening alters the calculated geometric clearance and violates manufacturing tolerances; installers must account for standard z and L dimensions during spool drafting. BigWeld is an authorised Georg Fischer distributor, supplying genuine ELGEF Plus fittings with complete traceability documentation.

Applications

The 22-degree deflection profile is ideal for civil engineering projects and municipal water distribution networks requiring gentle adjustments to match ground contours, utility corridors, or roadway trajectories. By mitigating water hammer and friction losses compared to sharper mitred turns, seamless 1.5 × d bends preserve hydraulic efficiency over long conveyance distances.

Beyond municipal potable water and raw water supply mains, these PN10 PE100 fittings serve industrial cooling circuits, agricultural irrigation networks, and gravity or pumped wastewater lines where chemical compatibility and abrasion resistance are paramount.

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus bend 22 degrees PE100 SDR17 is an engineered long-spigot piping component manufactured from seamless high-density polyethylene pipe for utility and industrial fluid conveyance. Rated for nominal operating pressures up to PN10 on water systems, this fitting covers dimensions from d90 up to d1000 mm. Designed for low hydraulic resistance, it enables pipeline designers to accommodate directional deviations along trenches and road profiles with minimal pressure loss.

Technical specifications

This seamless PE100 fitting maintains consistent wall thickness throughout the bend radius, avoiding the localized stress concentrations and flow turbulence associated with segmented or fabricated fittings. Formed with a 1.5 × d centerline bending radius, it ensures superior flow characteristics and structural resilience under continuous hydrostatic load.

Key engineering characteristics include:

  • Material grade: Virgin PE100 high-density polyethylene with high crack resistance
  • Geometric deflection: 22 degrees with a smooth centerline bend radius of 1.5 × d
  • Dimensional span: Outer diameters from d90 mm (DN80) to d1000 mm (DN1000)
  • Pressure classification: SDR17 rated for PN10 water and PN5 natural gas services
  • Spigot execution: Long straight pipe ends accommodating standard clamping tools and electrofusion couplers

Installation and jointing

Each spigot end features generous straight lengths designed for compatibility with both butt fusion machines and electrofusion couplers. This dual jointing capability allows installation teams to easily weld the bend directly into existing or newly laid PE100 pipe spools across various site conditions.

Because these fittings are hot-formed from seamless extruded PE100 pipe, site personnel must never cut or shorten the spigot ends. Shortening alters the calculated geometric clearance and violates manufacturing tolerances; installers must account for standard z and L dimensions during spool drafting. BigWeld is an authorised Georg Fischer distributor, supplying genuine ELGEF Plus fittings with complete traceability documentation.

Applications

The 22-degree deflection profile is ideal for civil engineering projects and municipal water distribution networks requiring gentle adjustments to match ground contours, utility corridors, or roadway trajectories. By mitigating water hammer and friction losses compared to sharper mitred turns, seamless 1.5 × d bends preserve hydraulic efficiency over long conveyance distances.

Beyond municipal potable water and raw water supply mains, these PN10 PE100 fittings serve industrial cooling circuits, agricultural irrigation networks, and gravity or pumped wastewater lines where chemical compatibility and abrasion resistance are paramount.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 90 mm
753080813
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €59.88
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
753080814
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €74.81
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 125 mm
753080815
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €84.60
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 140 mm
753080816
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €96.55
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 160 mm
753080817
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €106.55
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 180 mm
753080818
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €170.46
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 200 mm
753080819
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €205.87
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 225 mm
753080820
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €244.09
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 250 mm
753080821
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €295.16
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 280 mm
753080822
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €326.58
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 315 mm
753080823
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €421.41
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 355 mm
753080824
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €665.63
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 400 mm
753080825
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €923.93
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 450 mm
753080826
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €1,110.62
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 500 mm
753080827
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €1,522.79
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 560 mm
753080828
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €1,945.89
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 630 mm
753080829
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €2,427.33
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 710 mm
753080830
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 800 mm
753080831
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 900 mm
753080832
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 1000 mm
753080833
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
