ABS Adaptor Union Metric Socket to Rp Female Thread PN10

  Datasheet (PDF)

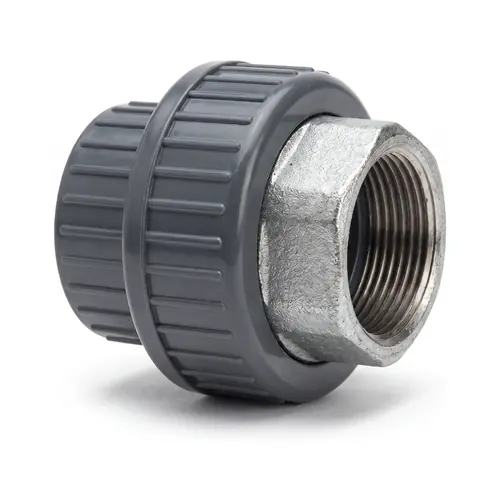

This Georg Fischer ABS adaptor union provides a robust, detachable transition between metric ABS solvent cement piping networks and threaded metal equipment or pipework. Designed with an ABS metric solvent cement socket on one end and a parallel female Rp thread manufactured from galvanized malleable iron on the other, the fitting allows seamless mechanical demountability for maintenance, valve installation, and component replacement without altering the surrounding installation. Rated for a nominal pressure of PN10 (10 bar at 20 degrees Celsius), this transition union is specifically engineered for secondary refrigeration, chilled water circuits, industrial air conditioning, and water treatment systems.

The fitting assembly includes a gravel grey (RAL 7001) ABS solvent cement adaptor bush, a heavy-duty ABS union nut, an EPDM profile gasket for dependable sealing, and a robust galvanized malleable iron threaded end. The high impact strength of ABS even at sub-zero operating temperatures down to minus 40 degrees Celsius combined with the mechanical durability of galvanized iron creates a dependable junction point resistant to pressure fluctuations, vibration, and thermal cycling. The integrated high-grade EPDM O-ring ensures leak-free sealing under continuous thermal loads, while the smooth hydraulic bore preserves optimum flow rates with low pressure loss.

Installation of the metric socket side requires proper pipe preparation using Tangit cleaner and Tangit ABS solvent cement to achieve a permanent, homogeneous chemical weld. The metal threaded end features parallel Rp threads compliant with standard pipe threading specifications, requiring an appropriate sealing medium such as PTFE tape. As an authorised Georg Fischer distributor, BigWeld supplies the complete metric ABS piping portfolio alongside technical documentation, ensuring full compliance and long-term operating safety across European industrial projects.
