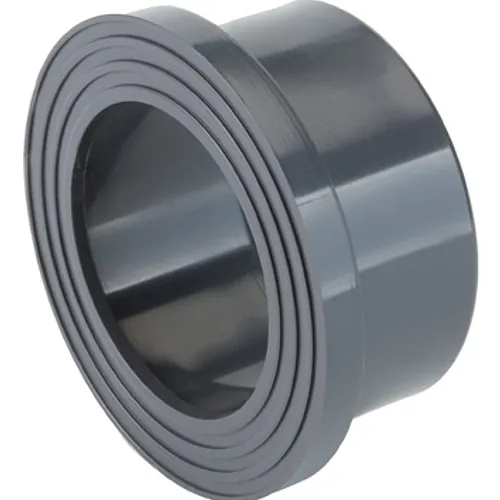

Serrated PVC-U flange adaptor for industrial piping systems, durable grey plastic stub end fitting for secure connections.

Serrated Flange Adaptor PVC-U PN16 d20-d315

Material: PVC-U PN: 16 Bar

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer PVC-U serrated flange adaptor is an industrial solvent cement collar engineered for high-integrity flanged transitions in metric thermoplastic pressure piping networks. Designed for process engineers and industrial piping installers, this precision-moulded component creates demountable connections between rigid pipeline runs, valves, and mechanical equipment. Rated at PN16 at 20 degrees Celsius, it provides dependable mechanical anchoring and leak-tight sealing across diverse process systems.

Technical specifications

This flange collar features a metric solvent cement socket and a combined flat and grooved stub face designed for optimal compression against elastomeric gaskets. The integrated serrations distribute bolt torque evenly to prevent gasket creep or blowout under sustained hydrostatic working conditions.

  • Nominal pressure rating: PN16 (16 bar) at a reference temperature of 20 degrees Celsius.
  • Operating temperature limit: Up to 45 degrees Celsius for flanged assemblies with thermal de-rating.
  • Jointing method: Metric solvent cement socket fusion according to metric dimensional standards.
  • Flange face geometry: Precision concentric serrations for elastomeric flat or profiled gaskets.
  • Compatible backing rings: PP-Steel composite, PP-V, and loose PVC-U backing flanges.
  • Sealing elastomer options: Fully compatible with EPDM and FKM industrial flange gaskets.

Materials and standards

Manufactured from unplasticised polyvinyl chloride in standard industrial grey RAL 7011, the adaptor provides proven resistance to inorganic chemicals, acids, alkalis, and saline solutions. The robust polymer formulation ensures high mechanical stiffness, dimensional stability, and long service life in aggressive operational environments.

The compound resists internal deposit formation and environmental degradation, maintaining laminar fluid flow throughout its working life. Because it contains no plasticisers, the material prevents fluid contamination in water treatment, chemical dosing, and cooling loops. For demanding media such as concentrated oxidizing acids, chemical compatibility must be verified in accordance with manufacturer technical guidelines.

Installation and jointing

Flanged connections are assembled by sliding a loose backing flange onto the pipe before solvent cementing the adaptor socket with approved primer and adhesive. Once cured, mating with companion flanges, valves, or pumps is completed using metric bolt sets tightened in a crosswise pattern.

Installers must ensure that pipe ends are cut square, deburred, and properly chamfered prior to applying Tangit or compatible PVC-U solvent cement. The loose backing flange must be positioned over the pipe spigot before bonding, as the collar diameter prevents subsequent mounting. When bolting, tightening torques should be applied gradually in opposing pairs using a calibrated torque wrench to achieve uniform gasket compression without overstressing the thermoplastic collar.
