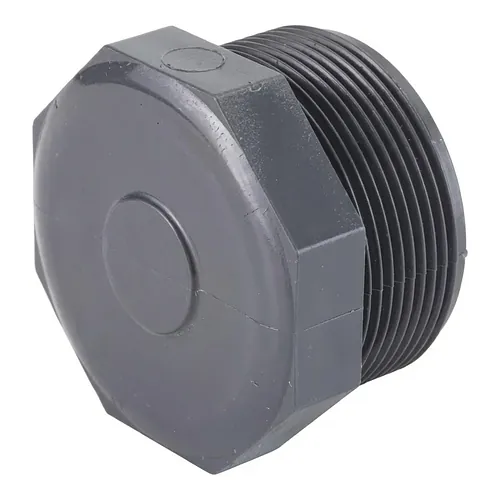

Grey PVC-U male threaded plug PN16 with a hexagonal cap

Male threaded plug PVC-U PN16

Material: PVC-U PN: 16 Bar

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer PVC-U male threaded plug PN16 provides a dependable, pressure-tight end closure for industrial process piping, water treatment facilities and chemical distribution networks. Designed for blanking female-threaded ports, valves and manifold branches, this industrial-grade fitting features an external taper pipe thread conforming to ISO 7-1 and EN 10226-1. Rated for working pressures up to 16 bar at 20 degrees Celsius, it delivers exceptional mechanical rigidity and corrosion resistance across demanding liquid distribution applications.

Technical specifications

The male threaded plug is rated for a nominal operating pressure of 16 bar at 20 degrees Celsius and handles medium temperatures up to 45 degrees Celsius. It features an external taper R thread engineered to create an interference fit within mating parallel female Rp threads.

  • Material: Unplasticised polyvinyl chloride (PVC-U)
  • Pressure rating: PN16 (nominal working pressure of 16 bar at 20 degrees Celsius)
  • Thread standard: External taper pipe thread R per ISO 7-1 and EN 10226-1
  • Size range: Thread dimensions from 3/8" up to 4"
  • Temperature limit: Maximum continuous medium temperature of 45 degrees Celsius with thermal de-rating
  • Manufacturing standard: ISO EN 1452-3

Materials and standards

Moulded from high-grade unplasticised polyvinyl chloride, this plug complies fully with the dimensional and physical requirements of ISO EN 1452-3. As an authorised Georg Fischer distributor, BigWeld supplies authentic Georg Fischer components manufactured under stringent quality controls for industrial piping systems.

The PVC-U formulation provides outstanding chemical resistance to diluted inorganic acids, alkalis, aliphatic hydrocarbons and neutral salt solutions. This inert thermoplastic construction prevents pitting, scaling and galvanic degradation, eliminating the risk of metallic ion contamination in pure water lines or corrosive chemical media. The solid hexagonal head allows high mechanical torque transfer during tightening without risking thread distortion or micro-fissuring.

Installation and jointing

Assembly requires wrapping the male taper thread with virgin PTFE tape before threading it into a mating parallel female thread. Installers must tighten the hexagonal head using calibrated hand wrenches to avoid over-torquing the thermoplastic threads.

Liquid thread sealants, solvent-based dopes and pipe pastes that contain aggressive plasticisers or solvents must never be applied, as they can induce environmental stress cracking in PVC-U. Thread the plug by hand until the taper engages smoothly, then complete tightening with an open-ended or adjustable wrench applied squarely across the hexagonal flats. This threaded configuration permits rapid blanking, pressure testing, routine inspection and system re-commissioning without damaging the underlying pipeline infrastructure.

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer PVC-U male threaded plug PN16 provides a dependable, pressure-tight end closure for industrial process piping, water treatment facilities and chemical distribution networks. Designed for blanking female-threaded ports, valves and manifold branches, this industrial-grade fitting features an external taper pipe thread conforming to ISO 7-1 and EN 10226-1. Rated for working pressures up to 16 bar at 20 degrees Celsius, it delivers exceptional mechanical rigidity and corrosion resistance across demanding liquid distribution applications.

Technical specifications

The male threaded plug is rated for a nominal operating pressure of 16 bar at 20 degrees Celsius and handles medium temperatures up to 45 degrees Celsius. It features an external taper R thread engineered to create an interference fit within mating parallel female Rp threads.

  • Material: Unplasticised polyvinyl chloride (PVC-U)
  • Pressure rating: PN16 (nominal working pressure of 16 bar at 20 degrees Celsius)
  • Thread standard: External taper pipe thread R per ISO 7-1 and EN 10226-1
  • Size range: Thread dimensions from 3/8" up to 4"
  • Temperature limit: Maximum continuous medium temperature of 45 degrees Celsius with thermal de-rating
  • Manufacturing standard: ISO EN 1452-3

Materials and standards

Moulded from high-grade unplasticised polyvinyl chloride, this plug complies fully with the dimensional and physical requirements of ISO EN 1452-3. As an authorised Georg Fischer distributor, BigWeld supplies authentic Georg Fischer components manufactured under stringent quality controls for industrial piping systems.

The PVC-U formulation provides outstanding chemical resistance to diluted inorganic acids, alkalis, aliphatic hydrocarbons and neutral salt solutions. This inert thermoplastic construction prevents pitting, scaling and galvanic degradation, eliminating the risk of metallic ion contamination in pure water lines or corrosive chemical media. The solid hexagonal head allows high mechanical torque transfer during tightening without risking thread distortion or micro-fissuring.

Installation and jointing

Assembly requires wrapping the male taper thread with virgin PTFE tape before threading it into a mating parallel female thread. Installers must tighten the hexagonal head using calibrated hand wrenches to avoid over-torquing the thermoplastic threads.

Liquid thread sealants, solvent-based dopes and pipe pastes that contain aggressive plasticisers or solvents must never be applied, as they can induce environmental stress cracking in PVC-U. Thread the plug by hand until the taper engages smoothly, then complete tightening with an open-ended or adjustable wrench applied squarely across the hexagonal flats. This threaded configuration permits rapid blanking, pressure testing, routine inspection and system re-commissioning without damaging the underlying pipeline infrastructure.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
Thread 3/8"
RV0TAF160
Material: PVC-U
PN: 16 Bar
pcs €0.86
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1/2"
RV0TAF200
Material: PVC-U
PN: 16 Bar
pcs €0.83
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 3/4"
RV0TAF250
Material: PVC-U
PN: 16 Bar
pcs €0.93
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1"
RV0TAF320
Material: PVC-U
PN: 16 Bar
pcs €1.21
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1 1/4"
RV0TAF400
Material: PVC-U
PN: 16 Bar
pcs €1.78
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1 1/2"
RV0TAF500
Material: PVC-U
PN: 16 Bar
pcs €2.04
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 2"
RV0TAF630
Material: PVC-U
PN: 16 Bar
pcs €2.35
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 2 1/2"
RV0TAF750
Material: PVC-U
PN: 16 Bar
pcs €9.57
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 3"
RV0TAF900
Material: PVC-U
PN: 16 Bar
pcs €10.59
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 4"
RV0TAF910
Material: PVC-U
PN: 16 Bar
pcs €17.91
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: RV0TAF160
Thread: 3/8"
Ships in 24 hours
€0.86 / pcs
SKU: RV0TAF200
Thread: 1/2"
Ships in 24 hours
€0.83 / pcs
SKU: RV0TAF250
Thread: 3/4"
Ships in 24 hours
€0.93 / pcs
SKU: RV0TAF320
Thread: 1"
Ships in 24 hours
€1.21 / pcs
SKU: RV0TAF400
Thread: 1 1/4"
Ships in 24 hours
€1.78 / pcs
SKU: RV0TAF500
Thread: 1 1/2"
Ships in 24 hours
€2.04 / pcs
SKU: RV0TAF630
Thread: 2"
Ships in 24 hours
€2.35 / pcs
SKU: RV0TAF750
Thread: 2 1/2"
Ships in 24 hours
€9.57 / pcs
SKU: RV0TAF900
Thread: 3"
Ships in 24 hours
€10.59 / pcs
SKU: RV0TAF910
Thread: 4"
Ships in 24 hours
€17.91 / pcs
