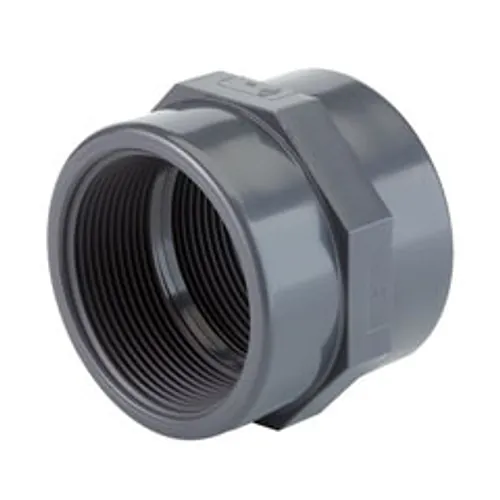

Dark grey PVC-U threaded double socket with internal female thread and hexagonal grip

Threaded Double Socket PVC-U PN16 Rp 3/8"-6"

Material: PVC-U PN: 16 Bar

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer PVC-U threaded double socket provides a robust, fully plastic female-to-female connection for joining threaded pipe ends and transition fittings in pressurised networks. Rated at PN16 (16 bar at 20 degrees Celsius), this precision-moulded component covers imperial thread sizes from 3/8 inch to 6 inch. It is engineered for industrial process lines, commercial water treatment, and chemical distribution systems requiring complete corrosion resistance and dependable dimensional stability.

Technical specifications

This double socket fitting features cylindrical internal threads engineered for seamless integration into standard pressure piping installations. Operating parameters and structural limits are determined by media temperature and pressure ratings defined for unplasticised polyvinyl chloride.

  • Component type: Double threaded socket, female to female (parallel Rp)
  • Nominal pressure rating: PN16 (16 bar at 20 degrees Celsius)
  • Thread sizing: 3/8 inch up to 6 inch internal thread
  • Thread standard: ISO 7-1 and EN 10226-1 parallel female thread (Rp)
  • Operating temperature limit: Maximum 60 degrees Celsius with temperature de-rating
  • Colour: Industrial dark grey RAL 7011

Materials and standards

Manufactured from unplasticised polyvinyl chloride (PVC-U), the socket complies with international pressure piping standards including ISO 7-1 and EN 10226-1. The homogenous formulation prevents electrochemical corrosion, internal scaling, and wall thinning caused by harsh industrial fluids.

The compound delivers exceptional resistance against inorganic acids, alkalis, brine solutions, and industrial wastewater. Because PVC-U is physiologically inert and completely non-conductive, it eliminates galvanic corrosion when interfaced with dissimilar materials across distribution circuits. BigWeld is an authorised Georg Fischer distributor and supplies industrial, irrigation and utility piping systems across Europe.

Installation and jointing

Threaded assembly requires compatible sealant systems to guarantee absolute leak tightness without inducing structural hoop stress on the thermoplastic female threads. Installers must avoid over-tightening and never use chemically aggressive pastes or traditional organic fibres.

Joints must be sealed exclusively with high-density PTFE tape or thread sealants specifically verified as chemically compatible with PVC-U. Hemp, solvent cements, and aggressive solvent-based jointing compounds must strictly be avoided, as they cause environmental stress cracking. When operating above 20 degrees Celsius, standard working pressure de-rating factors must be applied up to the maximum service temperature limit of 60 degrees Celsius.

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer PVC-U threaded double socket provides a robust, fully plastic female-to-female connection for joining threaded pipe ends and transition fittings in pressurised networks. Rated at PN16 (16 bar at 20 degrees Celsius), this precision-moulded component covers imperial thread sizes from 3/8 inch to 6 inch. It is engineered for industrial process lines, commercial water treatment, and chemical distribution systems requiring complete corrosion resistance and dependable dimensional stability.

Technical specifications

This double socket fitting features cylindrical internal threads engineered for seamless integration into standard pressure piping installations. Operating parameters and structural limits are determined by media temperature and pressure ratings defined for unplasticised polyvinyl chloride.

  • Component type: Double threaded socket, female to female (parallel Rp)
  • Nominal pressure rating: PN16 (16 bar at 20 degrees Celsius)
  • Thread sizing: 3/8 inch up to 6 inch internal thread
  • Thread standard: ISO 7-1 and EN 10226-1 parallel female thread (Rp)
  • Operating temperature limit: Maximum 60 degrees Celsius with temperature de-rating
  • Colour: Industrial dark grey RAL 7011

Materials and standards

Manufactured from unplasticised polyvinyl chloride (PVC-U), the socket complies with international pressure piping standards including ISO 7-1 and EN 10226-1. The homogenous formulation prevents electrochemical corrosion, internal scaling, and wall thinning caused by harsh industrial fluids.

The compound delivers exceptional resistance against inorganic acids, alkalis, brine solutions, and industrial wastewater. Because PVC-U is physiologically inert and completely non-conductive, it eliminates galvanic corrosion when interfaced with dissimilar materials across distribution circuits. BigWeld is an authorised Georg Fischer distributor and supplies industrial, irrigation and utility piping systems across Europe.

Installation and jointing

Threaded assembly requires compatible sealant systems to guarantee absolute leak tightness without inducing structural hoop stress on the thermoplastic female threads. Installers must avoid over-tightening and never use chemically aggressive pastes or traditional organic fibres.

Joints must be sealed exclusively with high-density PTFE tape or thread sealants specifically verified as chemically compatible with PVC-U. Hemp, solvent cements, and aggressive solvent-based jointing compounds must strictly be avoided, as they cause environmental stress cracking. When operating above 20 degrees Celsius, standard working pressure de-rating factors must be applied up to the maximum service temperature limit of 60 degrees Celsius.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
Thread 3/8"
RV0MAF160
Material: PVC-U
PN: 16 Bar
pcs €1.61
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1/2"
RV0MAF200
Material: PVC-U
PN: 16 Bar
pcs €1.80
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 3/4"
RV0MAF250
Material: PVC-U
PN: 16 Bar
pcs €1.73
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1"
RV0MAF320
Material: PVC-U
PN: 16 Bar
pcs €2.12
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1 1/4"
RV0MAF400
Material: PVC-U
PN: 16 Bar
pcs €2.54
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1 1/2"
RV0MAF500
Material: PVC-U
PN: 16 Bar
pcs €3.05
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 2"
RV0MAF630
Material: PVC-U
PN: 16 Bar
pcs €4.07
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 2 1/2"
RV0MAF750
Material: PVC-U
PN: 16 Bar
pcs €12.35
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 3"
RV0MAF900
Material: PVC-U
PN: 16 Bar
pcs €14.14
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 4"
RV0MAF910
Material: PVC-U
PN: 16 Bar
pcs €21.10
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 6"
RV0MAF940
Material: PVC-U
PN: 16 Bar
pcs €51.96
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
