Screwed flange malleable iron drilled 2 holes

Screwed flange malleable iron drilled 2 holes

Material: Galvanised iron PN: 10 Bar

  Datasheet (PDF)

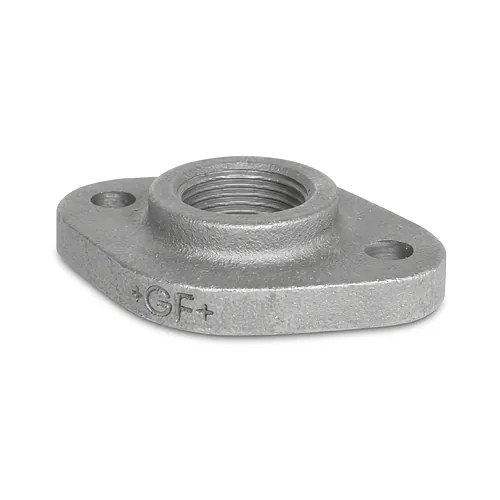

The Georg Fischer 326 malleable cast iron screwed flange provides a rigid, detachable connection between threaded pipework and flanged apparatus, valves, or pumps in building service and industrial utility networks. Engineered for space-restricted installations where circular multi-bolt patterns cannot fit, this compact two-bolt oval fitting features an internal parallel Rp thread conforming to EN 10226-1 and ISO 7-1, delivering a dependable mechanical transition rated for PN 10 operating pressure.

Materials and standards

Manufactured from high-grade whiteheart malleable cast iron, this flange satisfies stringent European metallurgic criteria for mechanical robustness and pressure containment. Decarburised annealing provides high elongation and tensile strength, preventing brittle fracture under structural vibrations and pipeline stress.

  • Material grade: decarburised annealed whiteheart malleable cast iron EN-GJMW-400-5 conforming to EN 1562
  • Design classification: complies with EN 10242 and ISO 49 Design Symbol A
  • Thread specification: female parallel thread Rp complying with EN 10226-1 and ISO 7-1
  • Surface protection: high-purity hot-dip galvanised coating free from polycyclic aromatic hydrocarbons
  • Bolt pattern: oval two-hole configuration drilled for PN 10 pressure class coupling

Technical specifications

The component incorporates a precision-machined planar sealing face engineered to deliver uniform gasket compression across the joint. Its compact two-hole oval flange geometry allows engineers and pipefitters to establish secure mechanical terminations within congested envelopes.

The internal parallel Rp thread mates with standard taper external R pipe threads, creating a pressure-tight threaded seal when combined with approved thread jointing compounds. Designed to operate safely across an extensive temperature range from minus 20 degrees Celsius up to 300 degrees Celsius within permissible pressure thresholds, the fitting maintains dimensional stability under recurring thermal cycling and pressure fluctuations.

Applications

This oval screwed flange serves as an interface between threaded steel piping and flanged utility apparatus across diverse commercial and industrial engineering sectors. The durable hot-dip galvanised finish provides outstanding chemical barrier protection against atmospheric corrosion and fluid degradation.

Typical installations include commercial heating systems, potable and non-potable water distribution, cooling water circuits, compressed air lines, and municipal gas transmission installations requiring dependable two-bolt detachable connections.

  Datasheet (PDF)

The Georg Fischer 326 malleable cast iron screwed flange provides a rigid, detachable connection between threaded pipework and flanged apparatus, valves, or pumps in building service and industrial utility networks. Engineered for space-restricted installations where circular multi-bolt patterns cannot fit, this compact two-bolt oval fitting features an internal parallel Rp thread conforming to EN 10226-1 and ISO 7-1, delivering a dependable mechanical transition rated for PN 10 operating pressure.

Materials and standards

Manufactured from high-grade whiteheart malleable cast iron, this flange satisfies stringent European metallurgic criteria for mechanical robustness and pressure containment. Decarburised annealing provides high elongation and tensile strength, preventing brittle fracture under structural vibrations and pipeline stress.

  • Material grade: decarburised annealed whiteheart malleable cast iron EN-GJMW-400-5 conforming to EN 1562
  • Design classification: complies with EN 10242 and ISO 49 Design Symbol A
  • Thread specification: female parallel thread Rp complying with EN 10226-1 and ISO 7-1
  • Surface protection: high-purity hot-dip galvanised coating free from polycyclic aromatic hydrocarbons
  • Bolt pattern: oval two-hole configuration drilled for PN 10 pressure class coupling

Technical specifications

The component incorporates a precision-machined planar sealing face engineered to deliver uniform gasket compression across the joint. Its compact two-hole oval flange geometry allows engineers and pipefitters to establish secure mechanical terminations within congested envelopes.

The internal parallel Rp thread mates with standard taper external R pipe threads, creating a pressure-tight threaded seal when combined with approved thread jointing compounds. Designed to operate safely across an extensive temperature range from minus 20 degrees Celsius up to 300 degrees Celsius within permissible pressure thresholds, the fitting maintains dimensional stability under recurring thermal cycling and pressure fluctuations.

Applications

This oval screwed flange serves as an interface between threaded steel piping and flanged utility apparatus across diverse commercial and industrial engineering sectors. The durable hot-dip galvanised finish provides outstanding chemical barrier protection against atmospheric corrosion and fluid degradation.

Typical installations include commercial heating systems, potable and non-potable water distribution, cooling water circuits, compressed air lines, and municipal gas transmission installations requiring dependable two-bolt detachable connections.
