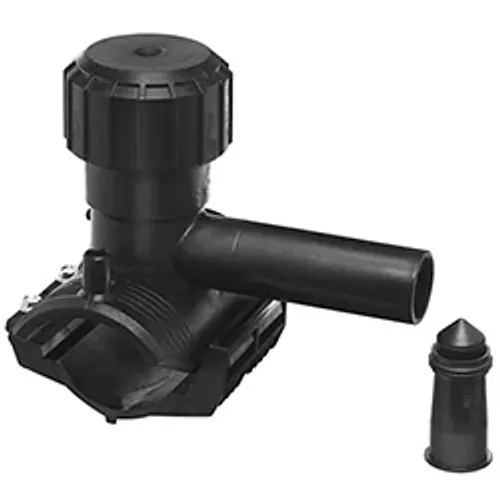

Black electrofusion tapping saddle monobloc PE100 SDR11 with Gas-Stop insert

Electrofusion tapping saddle monobloc PE100 SDR11 with Gas-Stop

Material: Polyethylene PN: 0.2 - 5 Bar SDR: 11

  Datasheet (PDF) |   | |   Product Range |   | | Instructional Video

The Georg Fischer ELGEF Plus PE100 monobloc tapping saddle with integrated Gas-Stop is an engineered electrofusion fitting designed for live under-pressure branch connections on polyethylene gas distribution networks. Operating safely across a pressure range of 0.2 to 5 bar, this specialized tapping saddle incorporates an internal rotating cutter and a factory-fitted excess flow valve to prevent dangerous gas releases during branch installation and protect downstream installations against pipe rupture.

Technical specifications

The ELGEF Plus monobloc tapping saddle combines mechanical pipe drilling with automatic excess flow protection in a single factory-assembled electrofusion fitting. The pre-assembled Pipelife Type S GS 32/200 UE Gas-Stop valve features an integrated overflow orifice and shuts off downstream gas flow automatically in the event of severe line damage.

  • Operating pressure range: 0.2 to 5 bar (200 mbar to 5 bar) for natural gas distribution systems
  • Safety shut-off mechanism: Integrated Pipelife Type S excess flow valve with internal overflow orifice
  • Maximum rated flow capacity: 750 l/min nominal gas flow prior to automatic shut-off actuation
  • Electrical terminal interface: Standard 4 mm connector pins with visual limited-path fusion indicators
  • Service branch outlet: Extended spigot compatible with electrofusion couplers and butt fusion
  • Mainline SDR compatibility: SDR 9 to 11 for d40–d50 mm mains and SDR 9 to 17.6 for d63 mm mains

Materials and standards

Constructed entirely from virgin high-density polyethylene resin, this tapping saddle delivers high structural integrity, broad chemical inertness, and long-term resistance to environmental stress cracking. The black RAL 9005 PE100 material is completely immune to electrochemical corrosion and is engineered for an estimated operational service lifetime of 100 years in underground utility installations.

The component complies fully with European standard EN 1555-3 governing plastic piping systems for the supply of gaseous fuels. Product quality and safety are confirmed through independent international certifications including DVGW, KIWA, ACS, and SVGW approvals. The threaded service cap incorporates an integrated elastomeric O-ring seal to ensure hermetic secondary containment and prevent gas emissions throughout the working life of the connection.

Installation and jointing

Jointing of the monobloc tapping saddle is completed through standard electrofusion welding directly onto live pressurized gas mains without requiring network depressurisation. The integrated internal cutter eliminates the need for separate external drilling equipment or auxiliary hot-tapping machines.

Electrofusion is carried out using universal welding units connected to the 4 mm terminal pins, driven by automatic barcode recognition or manual parameter input. Visual fusion indicators provide immediate confirmation of melt pressure and joint completion. After observing the specified cooling period, the internal rotating cutter is driven downward through the pipe crown using a standard hex drive and retracted into the upper housing, retaining the cut pipe coupon and opening gas flow into the integrated safety valve.

  Datasheet (PDF) |   | |   Product Range |   | | Instructional Video

The Georg Fischer ELGEF Plus PE100 monobloc tapping saddle with integrated Gas-Stop is an engineered electrofusion fitting designed for live under-pressure branch connections on polyethylene gas distribution networks. Operating safely across a pressure range of 0.2 to 5 bar, this specialized tapping saddle incorporates an internal rotating cutter and a factory-fitted excess flow valve to prevent dangerous gas releases during branch installation and protect downstream installations against pipe rupture.

Technical specifications

The ELGEF Plus monobloc tapping saddle combines mechanical pipe drilling with automatic excess flow protection in a single factory-assembled electrofusion fitting. The pre-assembled Pipelife Type S GS 32/200 UE Gas-Stop valve features an integrated overflow orifice and shuts off downstream gas flow automatically in the event of severe line damage.

  • Operating pressure range: 0.2 to 5 bar (200 mbar to 5 bar) for natural gas distribution systems
  • Safety shut-off mechanism: Integrated Pipelife Type S excess flow valve with internal overflow orifice
  • Maximum rated flow capacity: 750 l/min nominal gas flow prior to automatic shut-off actuation
  • Electrical terminal interface: Standard 4 mm connector pins with visual limited-path fusion indicators
  • Service branch outlet: Extended spigot compatible with electrofusion couplers and butt fusion
  • Mainline SDR compatibility: SDR 9 to 11 for d40–d50 mm mains and SDR 9 to 17.6 for d63 mm mains

Materials and standards

Constructed entirely from virgin high-density polyethylene resin, this tapping saddle delivers high structural integrity, broad chemical inertness, and long-term resistance to environmental stress cracking. The black RAL 9005 PE100 material is completely immune to electrochemical corrosion and is engineered for an estimated operational service lifetime of 100 years in underground utility installations.

The component complies fully with European standard EN 1555-3 governing plastic piping systems for the supply of gaseous fuels. Product quality and safety are confirmed through independent international certifications including DVGW, KIWA, ACS, and SVGW approvals. The threaded service cap incorporates an integrated elastomeric O-ring seal to ensure hermetic secondary containment and prevent gas emissions throughout the working life of the connection.

Installation and jointing

Jointing of the monobloc tapping saddle is completed through standard electrofusion welding directly onto live pressurized gas mains without requiring network depressurisation. The integrated internal cutter eliminates the need for separate external drilling equipment or auxiliary hot-tapping machines.

Electrofusion is carried out using universal welding units connected to the 4 mm terminal pins, driven by automatic barcode recognition or manual parameter input. Visual fusion indicators provide immediate confirmation of melt pressure and joint completion. After observing the specified cooling period, the internal rotating cutter is driven downward through the pipe crown using a standard hex drive and retracted into the upper housing, retaining the cut pipe coupon and opening gas flow into the integrated safety valve.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 40 mm
D 32 mm
193130814
Material: Polyethylene
PN: 0.2 - 5 Bar
SDR: 11
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
D 32 mm
193130824
Material: Polyethylene
PN: 0.2 - 5 Bar
SDR: 11
pcs €173.34
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
D 32 mm
193130834
Material: Polyethylene
PN: 0.2 - 5 Bar
SDR: 11
pcs €180.14
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 193130814
D: 40 mm
D: 32 mm
Ships in 10-15 days
On Request / pcs
SKU: 193130824
D: 50 mm
D: 32 mm
Ships in 24 hours
€173.34 / pcs
SKU: 193130834
D: 63 mm
D: 32 mm
Ships in 24 hours
€180.14 / pcs
