Galvanized malleable iron socket Rp - R

Galvanized malleable iron socket Rp - R

Material: Steel

  Datasheet (PDF)

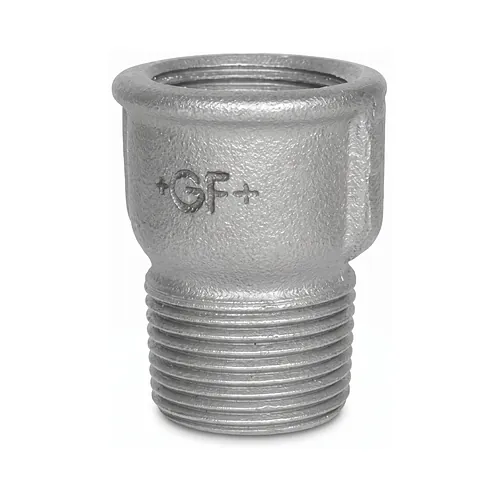

Georg Fischer 529a galvanized malleable cast iron sockets provide a reliable inline threaded transition between female fittings and male pipe runs. Conforming to ISO and EN M4 fitting geometry, this fitting features an internal parallel thread Rp and an external taper thread R. Designed for professional installers and plant engineers, it delivers dependable mechanical coupling across industrial piping, cooling systems, compressed air distribution, and heating networks.

Materials and standards

Manufactured strictly in accordance with EN 10242 and ISO 49 standards under Design Symbol A, this fitting utilizes premium whiteheart malleable cast iron grade EN-GJMW-400-5. The decarburised annealing process guarantees high tensile strength, structural ductility, and excellent resistance to mechanical stress and thermal shock.

Sizes 1/4 inch and 3/8 inch are precision machined from steel with electroplated zinc coatings, whereas sizes from 1/2 inch to 2 inch are produced from cast malleable iron with reinforced beads and hot-dip galvanization. The protective zinc layer provides outstanding cathodic defense against external atmospheric corrosion and condensation.

Technical specifications

The socket operates reliably across demanding industrial operating limits, accommodating pressures up to 25 bar. Its precision-engineered thread profiles ensure metal-to-metal contact along thread flanks for permanent, leak-free jointing.

  • Material grade: Whiteheart malleable cast iron EN-GJMW-400-5 (Design Symbol A) or steel (1/4 inch to 3/8 inch).
  • Thread standards: Internal parallel thread Rp and external taper thread R conforming to EN 10226-1 and ISO 7-1.
  • Fitting standard: Manufactured and tested to EN 10242 and ISO 49 fitting symbol M4.
  • Pressure rating: Maximum 25 bar at fluid temperatures from -20 degrees Celsius to 120 degrees Celsius.
  • High-temperature performance: Permissible operating pressure of 20 bar at temperatures up to 300 degrees Celsius.
  • Surface protection: Hot-dip galvanized coating for malleable iron bodies; electroplated zinc for steel variants.

Applications

This threaded socket serves as an inline extension or transition adapter in commercial and industrial piping installations. It withstands demanding mechanical vibration, pressure pulsation, and varied liquid or gaseous media.

Typical installations include hydronic heating systems, industrial process water lines, cooling loops, compressed air infrastructure, and mechanical utility circuits. Because galvanized steel variants below 1/2 inch are electroplated, they are intended for technical systems rather than drinking water installations. Threaded joints must be completed using approved jointing paste or PTFE tape suited to the conveyed fluid.

  Datasheet (PDF)

Georg Fischer 529a galvanized malleable cast iron sockets provide a reliable inline threaded transition between female fittings and male pipe runs. Conforming to ISO and EN M4 fitting geometry, this fitting features an internal parallel thread Rp and an external taper thread R. Designed for professional installers and plant engineers, it delivers dependable mechanical coupling across industrial piping, cooling systems, compressed air distribution, and heating networks.

Materials and standards

Manufactured strictly in accordance with EN 10242 and ISO 49 standards under Design Symbol A, this fitting utilizes premium whiteheart malleable cast iron grade EN-GJMW-400-5. The decarburised annealing process guarantees high tensile strength, structural ductility, and excellent resistance to mechanical stress and thermal shock.

Sizes 1/4 inch and 3/8 inch are precision machined from steel with electroplated zinc coatings, whereas sizes from 1/2 inch to 2 inch are produced from cast malleable iron with reinforced beads and hot-dip galvanization. The protective zinc layer provides outstanding cathodic defense against external atmospheric corrosion and condensation.

Technical specifications

The socket operates reliably across demanding industrial operating limits, accommodating pressures up to 25 bar. Its precision-engineered thread profiles ensure metal-to-metal contact along thread flanks for permanent, leak-free jointing.

  • Material grade: Whiteheart malleable cast iron EN-GJMW-400-5 (Design Symbol A) or steel (1/4 inch to 3/8 inch).
  • Thread standards: Internal parallel thread Rp and external taper thread R conforming to EN 10226-1 and ISO 7-1.
  • Fitting standard: Manufactured and tested to EN 10242 and ISO 49 fitting symbol M4.
  • Pressure rating: Maximum 25 bar at fluid temperatures from -20 degrees Celsius to 120 degrees Celsius.
  • High-temperature performance: Permissible operating pressure of 20 bar at temperatures up to 300 degrees Celsius.
  • Surface protection: Hot-dip galvanized coating for malleable iron bodies; electroplated zinc for steel variants.

Applications

This threaded socket serves as an inline extension or transition adapter in commercial and industrial piping installations. It withstands demanding mechanical vibration, pressure pulsation, and varied liquid or gaseous media.

Typical installations include hydronic heating systems, industrial process water lines, cooling loops, compressed air infrastructure, and mechanical utility circuits. Because galvanized steel variants below 1/2 inch are electroplated, they are intended for technical systems rather than drinking water installations. Threaded joints must be completed using approved jointing paste or PTFE tape suited to the conveyed fluid.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
Thread 1/4"
770529202
Material: Steel
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 3/8"
770529203
Material: Steel
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1/2"
770529204
Material: Steel
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 3/4"
770529205
Material: Steel
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1"
770529206
Material: Steel
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1 1/4"
770529207
Material: Steel
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1 1/2"
770529208
Material: Steel
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 2"
770529209
Material: Steel
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 770529202
Thread: 1/4"
Ships in 24 hours
On Request / pcs
SKU: 770529203
Thread: 3/8"
Ships in 24 hours
On Request / pcs
SKU: 770529204
Thread: 1/2"
Ships in 24 hours
On Request / pcs
SKU: 770529205
Thread: 3/4"
Ships in 24 hours
On Request / pcs
SKU: 770529206
Thread: 1"
Ships in 24 hours
On Request / pcs
SKU: 770529207
Thread: 1 1/4"
Ships in 24 hours
On Request / pcs
SKU: 770529208
Thread: 1 1/2"
Ships in 24 hours
On Request / pcs
SKU: 770529209
Thread: 2"
Ships in 24 hours
On Request / pcs
