Backing flange
Material:
OL-ZN
PN:
16 Bar

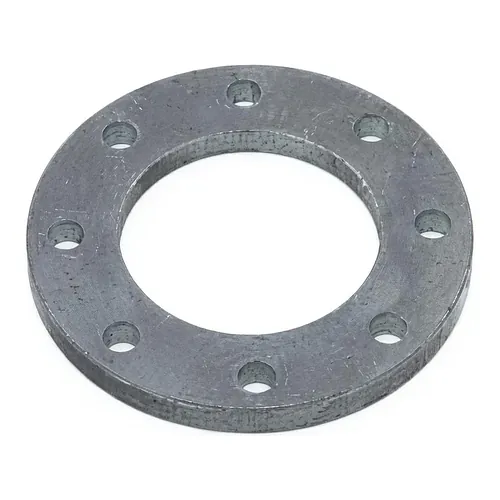

GF Piping Systems PE100 Backing Flange Sets are engineered for reliable pipe-to-flange connections in demanding industrial and utility PE piping systems. Available in two configurations: PP-V backing flange with PE end blank (d63–d315) and PP/Steel backing flange with PE end blank (d355–d630). The steel metric variant (S235JR, zinc-coated) is rated PN16 and covers pipe diameters from d32 to d500. Connecting dimensions conform to ISO 7005, EN 1092, and DIN 2501 standards, with bolt circle PN16. The combined jointing face features both flat and serrated profiles, ensuring versatile sealing compatibility. Bolt configurations range from 4×M12 (d32) to 20×M30 (d450–d500), accommodating high-integrity bolted assemblies across the full diameter range.
GF Piping Systems PE100 Backing Flange Sets are engineered for reliable pipe-to-flange connections in demanding industrial and utility PE piping systems. Available in two configurations: PP-V backing flange with PE end blank (d63–d315) and PP/Steel backing flange with PE end blank (d355–d630). The steel metric variant (S235JR, zinc-coated) is rated PN16 and covers pipe diameters from d32 to d500. Connecting dimensions conform to ISO 7005, EN 1092, and DIN 2501 standards, with bolt circle PN16. The combined jointing face features both flat and serrated profiles, ensuring versatile sealing compatibility. Bolt configurations range from 4×M12 (d32) to 20×M30 (d450–d500), accommodating high-integrity bolted assemblies across the full diameter range.
| Size | SKU | Property | U.M. |
Price
Incl. VAT
|
Availability | Add To Cart |
|---|---|---|---|---|---|---|
|
D
32 mm
DN
25 mm
|
701474390 |
Material:
OL-ZN
PN:
16 Bar
|
Pcs | €15.83 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
