ELGEF Plus Repair saddle PE100 SDR11

  Datasheet (PDF)

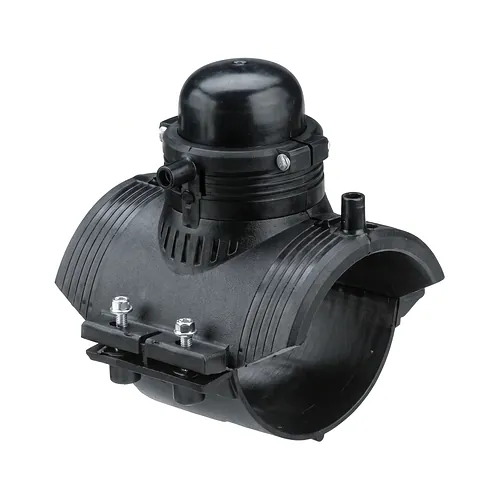

The Georg Fischer ELGEF Plus PE100 SDR11 repair saddle delivers a reliable, high-integrity electrofusion solution engineered specifically for sealing localized pipe wall damage, accidental perforations, and decommissioned tapping holes on polyethylene pressure networks. Manufactured from premium PE100 thermoplastic resin, this specialized saddle assembly withstands maximum nominal operating pressures of 16 bar for potable water systems and 10 bar for natural gas distribution infrastructure. Delivered as a comprehensive repair kit, the unit includes an electrofusion saddle body with an integrated d63 mm outlet, a matching lower clamping shell that secures uniform contact pressure around the pipe circumference during installation, and an ELGEF Plus d63 mm spigot cap (part code 753.961.011) for complete, permanent closure. Embedded resistance heating wires located in the electrofusion zone generate controlled thermal energy to melt and homogeneously merge the fitting with the host pipe surface, reinstating the pipeline's structural integrity and long-term pressure retention without needing expensive pipe replacement. Standardized 4 mm terminal pin connectors guarantee secure electrical interfacing with automated electrofusion welding units, while integrated limited-path fusion indicators pop out during the cycle to provide visual and tactile confirmation of a successful weld. Compatible with polyethylene carrier pipes ranging from d63 mm to d400 mm across pipe classes from SDR 9 to SDR 33, this repair system excels in buried municipal water mains, industrial fluid conduits, and underground gas distribution networks where downtime must be kept to an absolute minimum.
