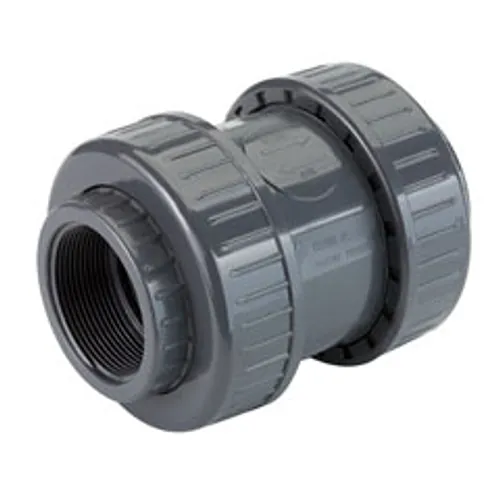

Grey PVC-U check valve with threaded sockets, rated for 16 Bar.

Check Valve with Threaded Sockets Rp PVC-U PN16

Material: PVC-U

  Datasheet (PDF) |   Product Range | Instructional Video

This industrial check valve manufactured from unplasticised polyvinyl chloride (PVC-U) features female parallel threaded sockets Rp for reliable backflow prevention in pressurized industrial fluid circuits, water treatment systems, and irrigation networks. Designed with a robust internal guided cone and elastomer spring mechanism, it automatically prevents reverse flow and hydraulic shock to safeguard sensitive pumps, dosing units, and filtration equipment at operating pressures up to PN16 at 20 degrees Celsius.

Technical specifications

The valve delivers dependable non-return shut-off across technical liquid handling networks under continuous industrial operating conditions. Its hydrodynamically shaped closing body and resilient elastomer assembly ensure positive sealing even under minimal differential pressures.

  • Nominal pressure rating: Up to PN16 (16 bar) at a reference medium temperature of 20 degrees Celsius.
  • Operating temperature range: Continuous operation from 0 to 60 degrees Celsius, applying pressure de-rating above 20 degrees Celsius.
  • Connection geometry: Female cylindrical parallel thread sockets Rp complying with ISO 7-1 and EN 10226-1.
  • Internal mechanism: Precision-guided shut-off cone equipped with a resilient elastomer spring seal.
  • Flow dynamics: Low cracking pressure with optimal flow profile minimizing inline head loss and fluid turbulence.

Materials and standards

All structural and wetted components are engineered from chemical-grade unplasticised polyvinyl chloride and high-performance elastomers conforming to rigorous European standards. This entirely non-metallic wet path guarantees complete immunity against electrochemical degradation, mineral scaling, and aggressive media.

The valve body is injection-moulded from high-density PVC-U (RAL 7011 dark grey), offering exceptional resistance against acids, alkalis, saline solutions, and industrial wastewater. Elastomer sealing elements maintain mechanical elasticity and tightness across treated process water, pool water circuits, and chemical distribution lines. Standardized Rp threaded ends conform strictly to ISO 7-1 and EN 10226-1, enabling direct mating with transition nipples, plastic fittings, and metallic pipe threads.

Installation and jointing

Threaded connection allows direct mechanical jointing into thermoplastic or metallic piping systems without solvent cementing. Installers must align the assembly with the flow direction arrow permanently cast into the external valve housing.

When making threaded joints on Rp thermoplastic sockets, use only thread sealants and PTFE sealing tapes chemically compatible with unplasticised polyvinyl chloride. Paste sealants containing plasticisers, aggressive solvents, or hydrocarbons must be avoided to prevent stress corrosion cracking. Tighten connections by hand followed by controlled torque, taking care not to over-tighten or exert bending stresses onto the polymer threads.

  Datasheet (PDF) |   Product Range | Instructional Video

This industrial check valve manufactured from unplasticised polyvinyl chloride (PVC-U) features female parallel threaded sockets Rp for reliable backflow prevention in pressurized industrial fluid circuits, water treatment systems, and irrigation networks. Designed with a robust internal guided cone and elastomer spring mechanism, it automatically prevents reverse flow and hydraulic shock to safeguard sensitive pumps, dosing units, and filtration equipment at operating pressures up to PN16 at 20 degrees Celsius.

Technical specifications

The valve delivers dependable non-return shut-off across technical liquid handling networks under continuous industrial operating conditions. Its hydrodynamically shaped closing body and resilient elastomer assembly ensure positive sealing even under minimal differential pressures.

  • Nominal pressure rating: Up to PN16 (16 bar) at a reference medium temperature of 20 degrees Celsius.
  • Operating temperature range: Continuous operation from 0 to 60 degrees Celsius, applying pressure de-rating above 20 degrees Celsius.
  • Connection geometry: Female cylindrical parallel thread sockets Rp complying with ISO 7-1 and EN 10226-1.
  • Internal mechanism: Precision-guided shut-off cone equipped with a resilient elastomer spring seal.
  • Flow dynamics: Low cracking pressure with optimal flow profile minimizing inline head loss and fluid turbulence.

Materials and standards

All structural and wetted components are engineered from chemical-grade unplasticised polyvinyl chloride and high-performance elastomers conforming to rigorous European standards. This entirely non-metallic wet path guarantees complete immunity against electrochemical degradation, mineral scaling, and aggressive media.

The valve body is injection-moulded from high-density PVC-U (RAL 7011 dark grey), offering exceptional resistance against acids, alkalis, saline solutions, and industrial wastewater. Elastomer sealing elements maintain mechanical elasticity and tightness across treated process water, pool water circuits, and chemical distribution lines. Standardized Rp threaded ends conform strictly to ISO 7-1 and EN 10226-1, enabling direct mating with transition nipples, plastic fittings, and metallic pipe threads.

Installation and jointing

Threaded connection allows direct mechanical jointing into thermoplastic or metallic piping systems without solvent cementing. Installers must align the assembly with the flow direction arrow permanently cast into the external valve housing.

When making threaded joints on Rp thermoplastic sockets, use only thread sealants and PTFE sealing tapes chemically compatible with unplasticised polyvinyl chloride. Paste sealants containing plasticisers, aggressive solvents, or hydrocarbons must be avoided to prevent stress corrosion cracking. Tighten connections by hand followed by controlled torque, taking care not to over-tighten or exert bending stresses onto the polymer threads.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
Thread 3/8"
PN 16 Bar
VRO21F160
Material: PVC-U
pcs €28.83
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1/2"
PN 16 Bar
VRO21F200
Material: PVC-U
pcs €29.49
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 3/4"
PN 16 Bar
VRO21F250
Material: PVC-U
pcs €26.69
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1"
PN 16 Bar
VRO21F320
Material: PVC-U
pcs €29.72
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1 1/4"
PN 16 Bar
VRO21F400
Material: PVC-U
pcs €37.01
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 1 1/2"
PN 16 Bar
VRO21F500
Material: PVC-U
pcs €40.14
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 2"
PN 16 Bar
VRO21F630
Material: PVC-U
pcs €49.92
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 2 1/2"
PN 10 Bar
VRO21F750
Material: PVC-U
pcs €111.25
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
Thread 3"
PN 10 Bar
VRO21F900
Material: PVC-U
pcs €153.02
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: VRO21F160
Thread: 3/8"
PN: 16 Bar
Ships in 24 hours
€28.83 / pcs
SKU: VRO21F200
Thread: 1/2"
PN: 16 Bar
Ships in 24 hours
€29.49 / pcs
SKU: VRO21F250
Thread: 3/4"
PN: 16 Bar
Ships in 24 hours
€26.69 / pcs
SKU: VRO21F320
Thread: 1"
PN: 16 Bar
Ships in 24 hours
€29.72 / pcs
SKU: VRO21F400
Thread: 1 1/4"
PN: 16 Bar
Ships in 24 hours
€37.01 / pcs
SKU: VRO21F500
Thread: 1 1/2"
PN: 16 Bar
Ships in 24 hours
€40.14 / pcs
SKU: VRO21F630
Thread: 2"
PN: 16 Bar
Ships in 24 hours
€49.92 / pcs
SKU: VRO21F750
Thread: 2 1/2"
PN: 10 Bar
Ships in 24 hours
€111.25 / pcs
SKU: VRO21F900
Thread: 3"
PN: 10 Bar
Ships in 24 hours
€153.02 / pcs
