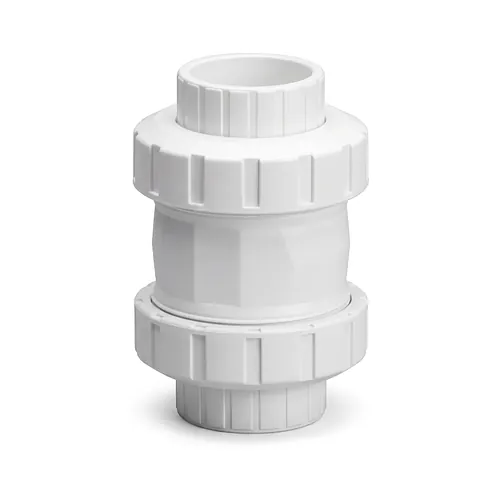

Check valve PVDF type 562 PN16 d16-110mm

Check valve PVDF type 562 PN16 d16-110mm

Material: PVDF Gasket: FKM PN: 16 Bar

  Datasheet (PDF)

The Georg Fischer SYGEF Standard check valve type 562 is an industrial non-return valve engineered from unpigmented polyvinylidene fluoride (PVDF) for reliable backflow prevention in chemical lines, deionised water circuits, and high-purity utility systems. Designed with metric fusion sockets for socket welding and rated at PN16, this true union check valve ensures dependable fluid isolation across an operational temperature range from -20 degrees to 140 degrees Celsius.

Technical specifications

The type 562 check valve utilizes a spring-loaded return cone mechanism that achieves immediate, leak-tight shut-off without requiring static hydrostatic head pressure. Its hydrodynamically contoured internal geometry minimizes flow resistance and operational vibration even under elevated media velocities.

  • Nominal pressure: PN16 (16 bar at 20 degrees Celsius).
  • Operating temperature: -20 degrees to 140 degrees Celsius.
  • Spring material: Stainless steel 1.4310 for dependable mechanical return force.
  • Sealing material: Premium FKM seals resistant to aggressive chemical attack.
  • Face-to-face dimension: Identical to Georg Fischer type 546 ball valves for direct modular interchangeability.

Materials and standards

Manufactured from high-grade PVDF conforming to ISO 10931, the valve body features a smooth internal surface finish with roughness values below 0.5 micrometres to prevent biofilm adhesion. The virgin fluoropolymer material meets stringent purity criteria and resists concentrated inorganic acids, aliphatic hydrocarbons, and salt solutions.

The physiologically safe PVDF material complies with FDA 21 CFR 177.2510 and USP 25 Class VI standards, permitting periodic sanitisation with pure steam, hot water, ozone, and chemical sterilants without structural degradation or leachable risk.

Installation and jointing

Featuring true union ends with metric fusion sockets, the valve integrates into piping runs via heated tool socket fusion according to DVS 2207-15. The spring-assisted mechanism allows completely unrestricted mounting in both vertical and horizontal flow orientations.

The true union nut design enables fast radial installation and immediate in-line disassembly for inspection or seal replacement without cutting existing pipe sections, simplifying plant maintenance across skid assemblies.

  Datasheet (PDF)

The Georg Fischer SYGEF Standard check valve type 562 is an industrial non-return valve engineered from unpigmented polyvinylidene fluoride (PVDF) for reliable backflow prevention in chemical lines, deionised water circuits, and high-purity utility systems. Designed with metric fusion sockets for socket welding and rated at PN16, this true union check valve ensures dependable fluid isolation across an operational temperature range from -20 degrees to 140 degrees Celsius.

Technical specifications

The type 562 check valve utilizes a spring-loaded return cone mechanism that achieves immediate, leak-tight shut-off without requiring static hydrostatic head pressure. Its hydrodynamically contoured internal geometry minimizes flow resistance and operational vibration even under elevated media velocities.

  • Nominal pressure: PN16 (16 bar at 20 degrees Celsius).
  • Operating temperature: -20 degrees to 140 degrees Celsius.
  • Spring material: Stainless steel 1.4310 for dependable mechanical return force.
  • Sealing material: Premium FKM seals resistant to aggressive chemical attack.
  • Face-to-face dimension: Identical to Georg Fischer type 546 ball valves for direct modular interchangeability.

Materials and standards

Manufactured from high-grade PVDF conforming to ISO 10931, the valve body features a smooth internal surface finish with roughness values below 0.5 micrometres to prevent biofilm adhesion. The virgin fluoropolymer material meets stringent purity criteria and resists concentrated inorganic acids, aliphatic hydrocarbons, and salt solutions.

The physiologically safe PVDF material complies with FDA 21 CFR 177.2510 and USP 25 Class VI standards, permitting periodic sanitisation with pure steam, hot water, ozone, and chemical sterilants without structural degradation or leachable risk.

Installation and jointing

Featuring true union ends with metric fusion sockets, the valve integrates into piping runs via heated tool socket fusion according to DVS 2207-15. The spring-assisted mechanism allows completely unrestricted mounting in both vertical and horizontal flow orientations.

The true union nut design enables fast radial installation and immediate in-line disassembly for inspection or seal replacement without cutting existing pipe sections, simplifying plant maintenance across skid assemblies.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 16 mm
175562011
Material: PVDF
Gasket: FKM
PN: 16 Bar
pcs €351.11
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 20 mm
175562012
Material: PVDF
Gasket: FKM
PN: 16 Bar
pcs €354.13
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
175562013
Material: PVDF
Gasket: FKM
PN: 16 Bar
pcs €435.30
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
175562014
Material: PVDF
Gasket: FKM
PN: 16 Bar
pcs €509.72
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
175562015
Material: PVDF
Gasket: FKM
PN: 16 Bar
pcs €833.75
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
175562016
Material: PVDF
Gasket: FKM
PN: 16 Bar
pcs €902.10
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
175562017
Material: PVDF
Gasket: FKM
PN: 16 Bar
pcs €1,516.46
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 75 mm
175562018
Material: PVDF
Gasket: FKM
PN: 16 Bar
pcs €2,888.46
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 90 mm
175562019
Material: PVDF
Gasket: FKM
PN: 16 Bar
pcs €3,610.62
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
175562020
Material: PVDF
Gasket: FKM
PN: 16 Bar
pcs €4,332.70
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
