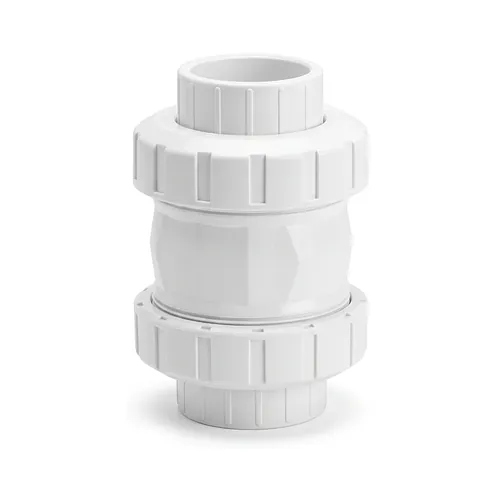

Check valve PVDF type 561 d16-110mm PN16

Check valve PVDF type 561 d16-110mm PN16

Material: PVDF PN: 16 Bar

  Datasheet (PDF)

The Georg Fischer SYGEF Standard check valve type 561 delivers dependable backflow prevention for aggressive chemical distribution networks and high-purity fluid applications. Engineered in unpigmented PVDF with high-grade FKM elastomeric seals, this true union non-return valve covers nominal outer diameters from d16 mm to d110 mm with a PN16 pressure rating. Operating without internal metallic springs, it guarantees non-contaminating, maintenance-free service across demanding industrial processes where mechanical springs risk corrosion or process contamination.

Technical specifications

The type 561 check valve relies entirely on gravity and backpressure to achieve a positive, bubble-tight shut-off. A hydrodynamically shaped, double-guided return cone maintains precise axial alignment during operation, eliminating disc flutter and dampening acoustic pulsation under turbulent flow regimes.

  • Nominal pressure rating: PN16 (16 bar water at 20 degrees C across all sizes).
  • Operating temperature range: -20 degrees C to 140 degrees C.
  • Minimum closing pressure: Reliable sealing initiation from a minimum water column of 2 meters.
  • Flow geometry: Stroke-optimized guide profile minimizing pressure drop and dead zones.
  • Body architecture: True union design with dimensions identical to type 546 ball valves.

Materials and standards

Constructed entirely from premium fluoropolymer components, the SYGEF Standard check valve satisfies rigorous industrial purity and hygiene specifications. The smooth, stress-relieved PVDF body offers high resistance against chemical leaching, severe oxidation, and mechanical creep under thermal cyclic loads.

The assembly conforms to the dimensional and manufacturing framework of ISO 10931 for industrial plastic piping systems. Raw materials comply with FDA 21 CFR § 177.2510 criteria and USP 25 Class VI biocompatibility requirements, permitting safe integration into pharmaceutical, life science, and semiconductor fluid transport lines. The unpigmented PVDF resin withstands concentrated mineral acids like nitric acid, sulfuric acid, and hydrochloric acid, as well as aliphatic solvents, salts, and high-temperature oxidizers. Cleaning compatibility encompasses ozone sanitization, hot water flushes, chemical disinfection, and clean steam.

Installation and jointing

The valve incorporates metric female sockets designed for homogeneous jointing using heated-tool socket fusion per DVS 2207-15. Because the valve relies on gravity for springless closure, vertical installation with upward flow is required for standard gravitational seating, or systems must maintain positive return backpressure.

The true union end connections allow swift radial removal from the piping run without dismantling adjacent structural supports or pipe brackets. Its identical face-to-face building length with Georg Fischer ball valves type 546 simplifies system upgrades and valve retrofits across existing skid assemblies and utility manifolds.

  Datasheet (PDF)

The Georg Fischer SYGEF Standard check valve type 561 delivers dependable backflow prevention for aggressive chemical distribution networks and high-purity fluid applications. Engineered in unpigmented PVDF with high-grade FKM elastomeric seals, this true union non-return valve covers nominal outer diameters from d16 mm to d110 mm with a PN16 pressure rating. Operating without internal metallic springs, it guarantees non-contaminating, maintenance-free service across demanding industrial processes where mechanical springs risk corrosion or process contamination.

Technical specifications

The type 561 check valve relies entirely on gravity and backpressure to achieve a positive, bubble-tight shut-off. A hydrodynamically shaped, double-guided return cone maintains precise axial alignment during operation, eliminating disc flutter and dampening acoustic pulsation under turbulent flow regimes.

  • Nominal pressure rating: PN16 (16 bar water at 20 degrees C across all sizes).
  • Operating temperature range: -20 degrees C to 140 degrees C.
  • Minimum closing pressure: Reliable sealing initiation from a minimum water column of 2 meters.
  • Flow geometry: Stroke-optimized guide profile minimizing pressure drop and dead zones.
  • Body architecture: True union design with dimensions identical to type 546 ball valves.

Materials and standards

Constructed entirely from premium fluoropolymer components, the SYGEF Standard check valve satisfies rigorous industrial purity and hygiene specifications. The smooth, stress-relieved PVDF body offers high resistance against chemical leaching, severe oxidation, and mechanical creep under thermal cyclic loads.

The assembly conforms to the dimensional and manufacturing framework of ISO 10931 for industrial plastic piping systems. Raw materials comply with FDA 21 CFR § 177.2510 criteria and USP 25 Class VI biocompatibility requirements, permitting safe integration into pharmaceutical, life science, and semiconductor fluid transport lines. The unpigmented PVDF resin withstands concentrated mineral acids like nitric acid, sulfuric acid, and hydrochloric acid, as well as aliphatic solvents, salts, and high-temperature oxidizers. Cleaning compatibility encompasses ozone sanitization, hot water flushes, chemical disinfection, and clean steam.

Installation and jointing

The valve incorporates metric female sockets designed for homogeneous jointing using heated-tool socket fusion per DVS 2207-15. Because the valve relies on gravity for springless closure, vertical installation with upward flow is required for standard gravitational seating, or systems must maintain positive return backpressure.

The true union end connections allow swift radial removal from the piping run without dismantling adjacent structural supports or pipe brackets. Its identical face-to-face building length with Georg Fischer ball valves type 546 simplifies system upgrades and valve retrofits across existing skid assemblies and utility manifolds.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 16 mm
175561011
Material: PVDF
PN: 16 Bar
pcs €339.41
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 20 mm
175561012
Material: PVDF
PN: 16 Bar
pcs €342.45
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
175561013
Material: PVDF
PN: 16 Bar
pcs €421.91
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
175561014
Material: PVDF
PN: 16 Bar
pcs €495.33
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
175561015
Material: PVDF
PN: 16 Bar
pcs €816.40
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
175561016
Material: PVDF
PN: 16 Bar
pcs €880.60
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
175561017
Material: PVDF
PN: 16 Bar
pcs €1,485.99
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 75 mm
175561018
Material: PVDF
PN: 16 Bar
pcs €2,830.42
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 90 mm
175561019
Material: PVDF
PN: 16 Bar
pcs €3,538.02
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
175561020
Material: PVDF
PN: 16 Bar
pcs €4,245.64
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
