PP-H Line Strainer Type 305 Butt Fusion SDR11 PN10 d20-63

PP-H Line Strainer Type 305 Butt Fusion SDR11 PN10 d20-63

Material: PP-H PN: 10 Bar

  Datasheet (PDF)

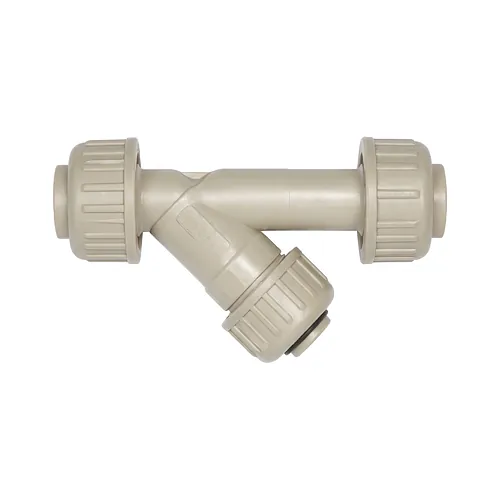

The Georg Fischer PROGEF Standard type 305 PP-H line strainer provides high-performance mechanical filtration to protect downstream pumps, control valves, rotameters, and sensitive instrumentation from particulate fouling. Built for demanding industrial pipelines, this pressure-rated Y-strainer features metric SDR11 butt fusion ends across diameters from d20 to d63 mm and operates reliably up to 10 bar at 20 degrees Celsius.

Technical specifications

The type 305 strainer captures suspended solids and pipeline debris through an integrated polypropylene filter screen while maintaining low pressure drop across the housing. Its modular design allows technicians to perform swift maintenance and radial servicing without disconnecting pipe spools.

  • Nominal pressure rating: 10 bar (PN10) at 20 degrees Celsius
  • Mesh size: 0.5 mm polypropylene filter basket
  • Dimensional range: d20 mm to d63 mm (SDR11)
  • Sealing options: High-performance EPDM or FKM elastomeric gaskets
  • Design standard: Basic face-to-face dimensions compliant with EN 558
  • Operational lifespan: 25-year service life in water and process media at 20 degrees Celsius

Materials and standards

Every housing is manufactured from premium beta-nucleated isotactic polypropylene homopolymer (beta-PP-H) to deliver high stiffness and chemical resistance. The material withstands aggressive chemical media, acids, alkalis, and industrial wastewater without corrosion.

Compliance with EN 558 ensures seamless interchangeability and straightforward replacement in standardized processing skids. The corrosion-resistant thermoplastic body and internal screen prevent media contamination and eliminate galvanic corrosion risks inherent in metallic strainers. As an authorised Georg Fischer distributor, BigWeld delivers authentic PROGEF components certified for long-term hydrostatic strength.

Installation and jointing

Metric SDR11 spigot ends enable permanent jointing via heated tool butt fusion or non-contact IR-Plus infrared welding. These jointing methods produce homogeneous, leak-tight connections capable of withstanding operational vibrations and thermal expansion.

During routine servicing, the threaded access cap facilitates rapid removal, inspection, and cleaning of the internal screen basket without stressing the piping network. Proper installation requires observing flow direction arrows marked on the body and allowing adequate clearance for basket extraction during filtration maintenance.

  Datasheet (PDF)

The Georg Fischer PROGEF Standard type 305 PP-H line strainer provides high-performance mechanical filtration to protect downstream pumps, control valves, rotameters, and sensitive instrumentation from particulate fouling. Built for demanding industrial pipelines, this pressure-rated Y-strainer features metric SDR11 butt fusion ends across diameters from d20 to d63 mm and operates reliably up to 10 bar at 20 degrees Celsius.

Technical specifications

The type 305 strainer captures suspended solids and pipeline debris through an integrated polypropylene filter screen while maintaining low pressure drop across the housing. Its modular design allows technicians to perform swift maintenance and radial servicing without disconnecting pipe spools.

  • Nominal pressure rating: 10 bar (PN10) at 20 degrees Celsius
  • Mesh size: 0.5 mm polypropylene filter basket
  • Dimensional range: d20 mm to d63 mm (SDR11)
  • Sealing options: High-performance EPDM or FKM elastomeric gaskets
  • Design standard: Basic face-to-face dimensions compliant with EN 558
  • Operational lifespan: 25-year service life in water and process media at 20 degrees Celsius

Materials and standards

Every housing is manufactured from premium beta-nucleated isotactic polypropylene homopolymer (beta-PP-H) to deliver high stiffness and chemical resistance. The material withstands aggressive chemical media, acids, alkalis, and industrial wastewater without corrosion.

Compliance with EN 558 ensures seamless interchangeability and straightforward replacement in standardized processing skids. The corrosion-resistant thermoplastic body and internal screen prevent media contamination and eliminate galvanic corrosion risks inherent in metallic strainers. As an authorised Georg Fischer distributor, BigWeld delivers authentic PROGEF components certified for long-term hydrostatic strength.

Installation and jointing

Metric SDR11 spigot ends enable permanent jointing via heated tool butt fusion or non-contact IR-Plus infrared welding. These jointing methods produce homogeneous, leak-tight connections capable of withstanding operational vibrations and thermal expansion.

During routine servicing, the threaded access cap facilitates rapid removal, inspection, and cleaning of the internal screen basket without stressing the piping network. Proper installation requires observing flow direction arrows marked on the body and allowing adequate clearance for basket extraction during filtration maintenance.
