PP-H Butterfly valve 243 FO

PP-H Butterfly valve 243 FO

Material: PP-GF30 / SS316 PN: 5-8-10 Bar

  Datasheet (PDF)

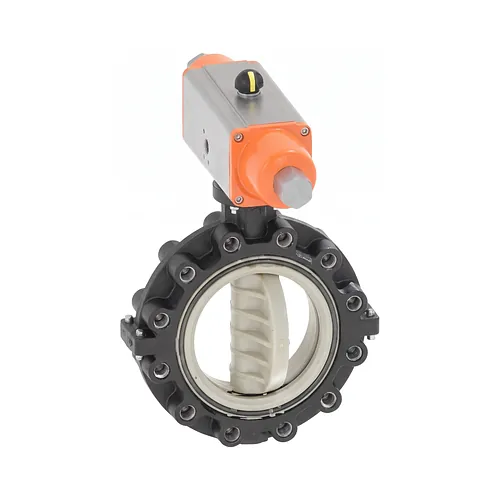

The Georg Fischer PROGEF Standard Type 243 is a pneumatically actuated lug-style butterfly valve in glass-fibre reinforced polypropylene (PP-GF30) with SS316 stainless steel threaded inserts, supplied in metric outside diameters from D63 mm to D315 mm. Its spring-return actuator is configured fail-safe-to-open, which makes the valve suited to chemical processing, water treatment and industrial fluid networks that require reliable isolation and dead-end service.

Technical specifications

The valve combines a double eccentric disc with a quarter-turn pneumatic actuator: on loss of control pilot pressure the internal spring packs drive the disc into the fully open 90 degrees position, securing continuous emergency flow.

  • Actuation: pneumatic spring-return, fail-safe-to-open (FO), 90 degrees quarter-turn travel
  • Nominal pressure: 5, 8 or 10 bar depending on valve dimension — see the size table
  • Dimensional range: metric outside diameters D63 mm to D315 mm, nine sizes
  • Disc geometry: double eccentric offset, reducing liner friction and breakaway torque
  • Sealing: EPDM or FKM elastomeric liner and seals
  • Body and hardware: PP-GF30 housing with SS316 threaded inserts

Because the double offset disc lifts off the liner immediately after the first degrees of rotation, seal wear is kept low, operating torque is reduced and service intervals stay long even under high-frequency pneumatic cycling.

Materials and standards

The valve is built from high-grade thermoplastics and corrosion-resistant metal hardware and conforms to harmonised industrial piping standards. The glass-fibre reinforced polypropylene housing provides high structural rigidity, while the SS316 threaded inserts in the lugged body allow both intermediate installation between flanges and unilateral, end-of-line mounting.

Applications

Type 243 FO is specified for automated flow control and isolation duties in corrosive media: chemical process lines, water and wastewater treatment plants and general industrial fluid distribution. The fail-safe-to-open configuration is chosen where process safety depends on an open flow path when control air is lost. Supplied across Europe by BigWeld, an authorised Georg Fischer distributor.

  Datasheet (PDF)

The Georg Fischer PROGEF Standard Type 243 is a pneumatically actuated lug-style butterfly valve in glass-fibre reinforced polypropylene (PP-GF30) with SS316 stainless steel threaded inserts, supplied in metric outside diameters from D63 mm to D315 mm. Its spring-return actuator is configured fail-safe-to-open, which makes the valve suited to chemical processing, water treatment and industrial fluid networks that require reliable isolation and dead-end service.

Technical specifications

The valve combines a double eccentric disc with a quarter-turn pneumatic actuator: on loss of control pilot pressure the internal spring packs drive the disc into the fully open 90 degrees position, securing continuous emergency flow.

  • Actuation: pneumatic spring-return, fail-safe-to-open (FO), 90 degrees quarter-turn travel
  • Nominal pressure: 5, 8 or 10 bar depending on valve dimension — see the size table
  • Dimensional range: metric outside diameters D63 mm to D315 mm, nine sizes
  • Disc geometry: double eccentric offset, reducing liner friction and breakaway torque
  • Sealing: EPDM or FKM elastomeric liner and seals
  • Body and hardware: PP-GF30 housing with SS316 threaded inserts

Because the double offset disc lifts off the liner immediately after the first degrees of rotation, seal wear is kept low, operating torque is reduced and service intervals stay long even under high-frequency pneumatic cycling.

Materials and standards

The valve is built from high-grade thermoplastics and corrosion-resistant metal hardware and conforms to harmonised industrial piping standards. The glass-fibre reinforced polypropylene housing provides high structural rigidity, while the SS316 threaded inserts in the lugged body allow both intermediate installation between flanges and unilateral, end-of-line mounting.

Applications

Type 243 FO is specified for automated flow control and isolation duties in corrosive media: chemical process lines, water and wastewater treatment plants and general industrial fluid distribution. The fail-safe-to-open configuration is chosen where process safety depends on an open flow path when control air is lost. Supplied across Europe by BigWeld, an authorised Georg Fischer distributor.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 63 mm
Gasket EPDM
199243322
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €1,480.25
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
Gasket FKM
199243342
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €1,535.04
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 75 mm
Gasket EPDM
199243323
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €1,558.61
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 75 mm
Gasket FKM
199243343
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €1,618.60
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 90 mm
Gasket EPDM
199243324
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €1,871.89
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 90 mm
Gasket FKM
199243344
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €1,947.59
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
Gasket EPDM
199243325
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €2,185.18
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
Gasket FKM
199243345
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €2,273.94
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 140 mm
Gasket EPDM
199243326
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €2,529.78
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 140 mm
Gasket FKM
199243346
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €2,628.99
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 160 mm
Gasket EPDM
199243327
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €2,973.58
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 160 mm
Gasket FKM
199243347
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €3,093.68
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 225 mm
Gasket EPDM
199243328
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €3,688.91
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 225 mm
Gasket FKM
199243348
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €3,931.73
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 280 mm
Gasket EPDM
199243329
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €6,271.19
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 280 mm
Gasket FKM
199243349
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €6,683.88
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 315 mm
Gasket EPDM
199243330
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €7,525.41
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 315 mm
Gasket FKM
199243350
Material: PP-GF30 / SS316
PN: 5-8-10 Bar
pcs €8,020.68
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
